Long 2360
The Long 2360 is a tractor produced by Long. It is equipped with a 142.8 ci 2.3 L engine. The listed engine power is Diesel (listed): 45 hp / 33.6 kW. Transmission: 8 forward and 2 reverse. Operating weight: 4220 lbs 1914 kg.
Engine Power
Diesel (listed): 45 hp / 33.6 kW
Fuel & Capacities
16.4 gal
62.1 L
Transmission
8 forward and 2 reverse
Operating Weight
4220 lbs
1914 kg
Overview
 | 1990 - 1997
Utility tractorUTB/Universal built
Utility tractor
UTB/Universal built |
|---|
Production | |
|---|---|
Distributor | Long |
Manufacturer | UTB/Universal |
Utility tractor | |
Built in Brasov, Romania | |
Variants | |
|---|---|
2360DTC | 4WD |
Long 2360 Engine | |
|---|---|
Uzina 2.3L 3-cyl diesel | |
Engine details ...  |
Long 2360 Transmission | |
|---|---|
8-speed partially synchronized | |
Transmission details ...  |
Long 2360 Power | |
|---|---|
Engine | 45 hp
33.6 kW |
PTO (claimed) | 35 hp
26.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Mechanical band brakes | |
Two-post ROPS. |
Capacity | |
|---|---|
Fuel | 16.4 gal
62.1 L |
Hydraulic system | 5.25 gal
19.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.25 gal
19.9 L |
Pressure | 2000 psi
137.9 bar |
Total flow | 9 gpm
34.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 2645 lbs
1199 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1970 |
Dimensions & Tires | |
|---|---|
Weight | 4220 lbs
1914 kg |
Front tire | 6.00-16 |
Rear tire | 12.4-28 (2WD) |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
50 Years of Peoples and Products published in 1992, by Long | |
Loaders published in 1993, by Long |
Engine
Engine Detail — 142.8 ci / 2.3 L Diesel
Manufacturer | Uzina D-115 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
There seems to be some discrepancy on the engine model. Both the D-115 and D-124 seem to be found, although the difference is unclear. | |
Displacement | 142.8 ci
2.3 L |
Bore/Stroke | 3.74x4.33 inches
95 x 110 mm |
Power | 45 hp
33.6 kW |
Pre-heating | thermostart |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 7.3 qts
6.9 L |
Coolant capacity | 14 qts
13.2 L |
Transmission
Transmission — 8 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 8 forward and 2 reverse |
Clutch | 279.4mm dry discs |
Oil capacity | 21 qts
19.9 L |
Gears 3-4 and 7-8 are synchronized. | |
With 13.6x28 rear tires. | |
 | |
Dimensions
Long 2360 Tires | |
|---|---|
Standard tires (ag) | Front: 6.00-16. Rear: 12.4-28 (2WD) |
Front: 9.5-20. Rear: 12.4-28 (4WD) | |
Dimensions | |
|---|---|
Weight | 4220 lbs
1914 kg |
2WD Front tread | 57 to 84 inches
144 to 213 cm |
4WD Front tread | 59 inches
149 cm |
Rear tread | 51.3 to 75 inches
130 to 190 cm |
Attachments
Attachment overview | |
|---|---|
Farmtrac 5300 loader | |
Long 1548A loader | |
Long 1550C loader |
Photos

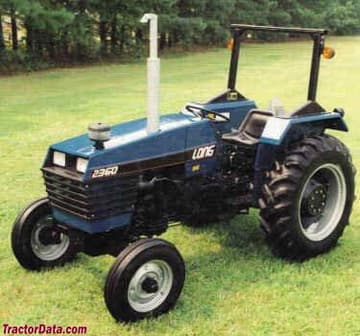

Long 2360
Recommended Implements & Sizing Guide
Engineering recommendations for Long 2360 based on its 45 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Long 2360.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (16.4 gal / 62.1 L).
Estimated 75% Load Fuel Burn~2.3 gal/hr (8.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Long 2360 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Long 2360.
Converted Equivalents:
Horsepower (HP)45 hp
Kilowatts (kW)33.6 kW
Metric Horsepower (PS / CV)45.6 PS
Direct Competitor Comparison
Compare Long 2360 against same-era industry alternatives in the same horsepower class.
Current Model
Long
Long 2360
Engine Power:Diesel (listed): 45 hp / 33.6 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 404
Engine Power:40.8
Production Years:1961 - 1968
