CaseIH 3394

The CaseIH 3394 is a tractor produced by Caseih. It is equipped with a 504 ci 8.3 L engine. The listed engine power is 162.86 hp 121.4 kW. Transmission: 12 forward and 3 reverse. Operating weight: 15620 lbs 7085 kg.

Engine Power
162.86 hp 121.4 kW
Fuel & Capacities
85 gal 321.7 L
Transmission
12 forward and 3 reverse
Operating Weight
15620 lbs 7085 kg

Overview

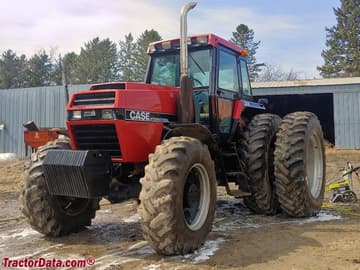

CaseIH 3394 tractor photo
1985 - 1987 Row-Crop tractor
Production
Manufacturer
CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $71,000 in 1987
CaseIH 3394 Engine
Case 8.3L 6-cyl diesel
Engine details ...
CaseIH 3394 Power
PTO (claimed)
162 hp 120.8 kW
Drawbar (tested)
141.17 hp 105.3 kW
PTO (tested)
162.86 hp 121.4 kW
Performance test details ...
Mechanical
Four-wheel drive
Steering
hydrostatic power
Differential hydraulic wet disc brakes
Cab standard
Capacity
Fuel
85 gal 321.7 L
Hydraulic system
33.25 gal 125.9 L
Hydraulics
Type
closed center
Capacity
33.25 gal 125.9 L
Valves
2 to 4
Pump flow
30 gpm 113.6 lpm
Tractor hitch
Rear Type
III
Rear lift (at 24"/610mm)
7,750 lbs 3515 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
1000
Dimensions & Tires
Wheelbase
116 inches 294 cm
Weight
15620 lbs 7085 kg
Front tire
16.9-26
Rear tire
24.5R-32
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12
References
3394 references literature
2 Wheel Drive and Mechanical Front Drive Tractors published in 1987, by CaseIH

Engine

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer
Case
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
504 ci 8.3 L
Bore/Stroke
4.625x5.00 inches 117 x 127 mm
Air cleaner
dual paper elements
Compression
15.8:1
Rated RPM
2100
Starter volts
12
Oil capacity
23 qts 21.8 L
Coolant capacity
44 qts 41.6 L

Transmission

Transmission options
24-speed partial power shift
12-speed partial power shift

Transmission — 24 forward and 3 reverse partial power shift

Type
partial power shift
Gears
24 forward and 3 reverse
Oil capacity
133 qts 125.9 L
Four ranges with six power shift gears in each range.
With 20.8x38 rear tires.

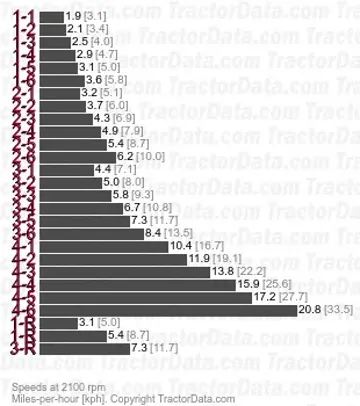

3394 partial power shift speeds

Transmission — 12 forward and 3 reverse partial power shift

Type
partial power shift
Gears
12 forward and 3 reverse
Oil capacity
133 qts 125.9 L
Four ranges with three power shift gears in each range.
With 20.8x38 rear tires.

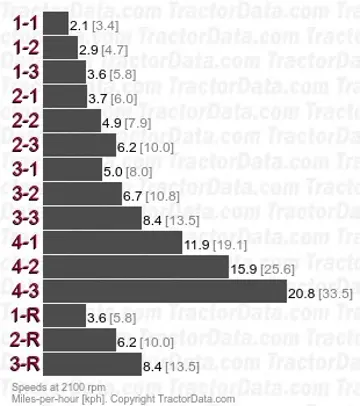

3394 partial power shift speeds

Dimensions

CaseIH 3394 Tires
Ag front
16.9-26
Ag rear
24.5R-32
Dimensions
Wheelbase
116 inches 294 cm
Length
192.5 inches 488 cm
Width
60 inches 152 cm
Height (cab)
120 inches 304 cm
Ground clearance
18 inches 45 cm
CaseIH 3394 Weight
Operating
15620 lbs 7085 kg
Ballasted
18610 lbs 8441 kg
Max capacity
20500 lbs 9298 kg

Tests

Nebraska Tractor Test 1583
Diesel 24-speed 4WD October 15 - 24, 1985 Link: Nebraska Tractor Test 1583 file
PTO performance
Power at rated engine speed
162.86 hp 121.4 kW
Fuel use
10.6 gal/hour 40.1 l/hour
Drawbar performance
Max power
141.17 hp 105.3 kW
Fuel use
10.4 gal/hour 39.4 l/hour
Gear 16 used for power test.
Max pull
17421 lbs 7902 kg
Gear 1-4 used for pull test.

Photos

CaseIH 3394

CaseIH 3394

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih 3394 based on its 162.86 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
