CaseIH 485
The CaseIH 485 is a tractor produced by Caseih. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (listed): 53 hp / 39.5 kW. Transmission: 16 forward and 8 reverse. Operating weight: 5,200 lbs 2358 kg.
Engine Power
Diesel (listed): 53 hp / 39.5 kW
Fuel & Capacities
20 gal
75.7 L
Transmission
16 forward and 8 reverse
Operating Weight
5,200 lbs
2358 kg
Overview
 | 1985 - 1991
85 Utility SeriesUtility tractor
85 Utility Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Doncaster, England | |
Original price | $16,000 (1990) |
Variants | |
|---|---|
485 | utility |
485-O | orchard |
CaseIH 485 Engine | |
|---|---|
CaseIH 2.9L 3-cyl diesel | |
Engine details ...  |
CaseIH 485 Power | |
|---|---|
Engine | 53 hp
39.5 kW |
Drawbar (claimed) | 36.7 hp
27.4 kW |
PTO (claimed) | 43 hp
32.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Two-post ROPS. | |
Capacity | |
|---|---|
Fuel | 20 gal
75.7 L |
Hydraulic system | 9 gal
34.1 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 9 gal
34.1 L |
Valves | 1 or 2 |
Pump flow | 15.9 gpm
60.2 lpm |
17 gpm (optional)
64.3 lpm | |
Tractor hitch | |
|---|---|
Rear Type | I,II |
Rear lift | 2,338 lbs
1060 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 79.6 inches
202 cm |
Weight | 5,200 lbs
2358 kg |
Front tire | 6.00-16 |
Rear tire | 13.6-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 45 |
References | |
|---|---|
 | |
85 Series published in 1985, by CaseIH |
Engine
Engine Detail — 179 ci / 2.9 L Diesel
Manufacturer | CaseIH D-179 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 179 ci
2.9 L |
Bore/Stroke | 3.88x5.06 inches
99 x 129 mm |
Power | 53 hp
39.5 kW |
Compression | 15:1 |
Rated RPM | 2200 |
Torque | 134.2 lb-ft
182.0 Nm |
Torque RPM | 1400 |
Transmission
Transmission options | |
|---|---|
8-speed synchromesh | |
16-speed partial power shift |
Transmission — 8 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Four gears within each of high, low, and reverse ranges. Synchronized shifts within forward ranges. | |
With 13.6x28 rear tires. | |
 | |

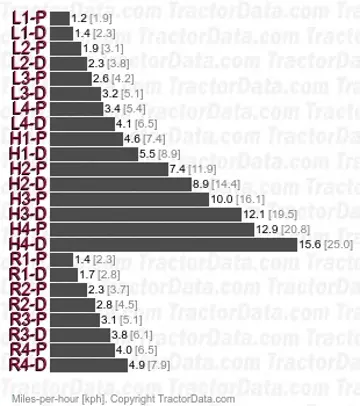

Transmission — 16 forward and 8 reverse partial power shift
Type | partial power shift |
Gears | 16 forward and 8 reverse |
Four gears within each of high, low, and reverse ranges. Power shift between direct and lower speed for each gear. | |
With 13.6x28 rear tires. | |
 | |
Dimensions
CaseIH 485 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 13.6-28 |
Dimensions | |
|---|---|
Wheelbase | 79.6 inches
202 cm |
Length | 141.6 inches
359 cm |
Width | 73.2 inches
185 cm |
Height | 93.5 inches
237 cm |
Shipping weight | 5,200 lbs
2358 kg |
Max weight | 10,150 lbs
4604 kg |
Photos

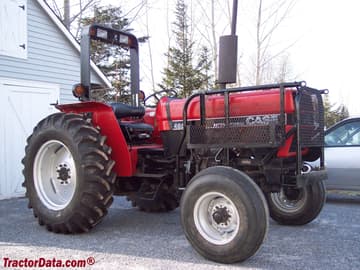

Case International 485 utility tractor.
Case International 485 with front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih 485 based on its 53 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 485.
Estimated Continuous Field Runtime: 7.3 hrs
Approximately 7.3 hours of continuous field operation at ~75% rated power on a full tank (20 gal / 75.7 L).
Estimated 75% Load Fuel Burn~2.8 gal/hr (10.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih 485 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 485.
Converted Equivalents:
Horsepower (HP)53 hp
Kilowatts (kW)39.5 kW
Metric Horsepower (PS / CV)53.7 PS
Direct Competitor Comparison
Compare CaseIH 485 against same-era industry alternatives in the same horsepower class.
Current Model
Caseih
CaseIH 485
Engine Power:Diesel (listed): 53 hp / 39.5 kW
★ Baseline Reference
