CaseIH 495

The CaseIH 495 is a tractor produced by Caseih. It is equipped with a 179 ci 2.9 L engine. The rated power output is 50 hp 37.3 kW. Transmission: 16 forward and 8 reverse. Operating weight: 5200 to 6090 pounds.

Engine Power
50 hp 37.3 kW
Fuel & Capacities
20 gal 75.7 L
Transmission
16 forward and 8 reverse
Operating Weight
5200 to 6090 pounds

Caseih 495 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

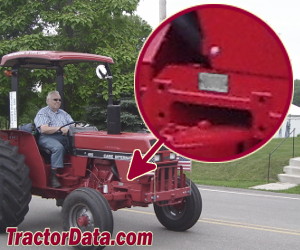

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

CaseIH 495 tractor photo
1991 - 1994 95 Utility SeriesUtility tractor
1991 - 1994
95 Utility Series
Utility tractor
Production
Manufacturer
CaseIH
Utility tractor
Built in Doncaster, England
Original price was $19,000 in 1994
CaseIH 495 Engine
Case IH 2.9L 3-cyl diesel
Engine details ...
CaseIH 495 Power
Engine (gross)
53 hp 39.5 kW
Engine (net)
50 hp 37.3 kW
PTO (claimed)
42 hp 31.3 kW
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS.
Capacity
Fuel
20 gal 75.7 L
Hydraulic system
9 gal 34.1 L
Hydraulics
Type
open center
Capacity
9 gal 34.1 L
Valves
1
Pump flow
15.6 gpm 59.0 lpm
Tractor hitch
Rear Type
II/I
Rear lift
2340 lbs 1061 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
Dimensions & Tires
Wheelbase
79.8 inches 202 cm
Weight
5200 to 6090 pounds
Front tire
6.00-16
Rear tire
14.9-24
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12
References
495 references literature
95 Series Tractors published in 1990, by CaseIH

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer
Case IH D-179
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
179 ci 2.9 L
Bore/Stroke
3.88x5.06 inches 99 x 129 mm
Power (net)
50 hp 37.3 kW
Power (gross)
53 hp 39.5 kW
Rated RPM
2200
Idle RPM
700-2400
Starter volts
12
Oil capacity
8.2 qts 7.8 L
Coolant capacity
12 qts 11.4 L

Transmission

Transmission options
8-speed partially synchronized
16-speed partial power shift
8-speed synchronized shuttle
16-speed creeper

Transmission — 8 forward and 4 reverse partially synchronized

Type
partially synchronized
Gears
8 forward and 4 reverse
Clutch
dry disc
Oil capacity
36 qts 34.1 L
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.
With 13.6x28 rear tires.
495 partially synchronized speeds

Transmission — 16 forward and 8 reverse partial power shift

Type
partial power shift
Gears
16 forward and 8 reverse
Oil capacity
36 qts 34.1 L
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.
With 13.6x28 rear tires.
495 partial power shift speeds

Transmission — 8 forward and reverse synchronized shuttle

Type
synchronized shuttle
Gears
8 forward and reverse
Oil capacity
36 qts 34.1 L
Four gears each in high and low ranges, both forward and reverse.
With 13.6x28 rear tires.
495 synchronized shuttle speeds

Transmission — 16 forward and 8 reverse creeper

Type
creeper
Gears
16 forward and 8 reverse
Four gears with high, low, and reverse ranges plus direct or creeper mode.
With 13.6x28 rear tires.

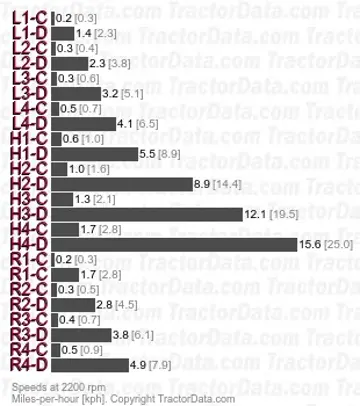

495 creeper speeds

Dimensions

CaseIH 495 Tires
Ag front
6.00-16
Ag rear
14.9-24
Dimensions
Wheelbase
79.8 inches 202 cm
Length
136 inches 345 cm
Width
66 inches*With at minimum tread. 167 cm
Height (ROPS)
93.5 inches 237 cm
2WD Shipping weight
5200 lbs 2358 kg
4WD Shipping weight
6090 lbs 2762 kg
2WD Clearance (front axle)
22.1 inches 56 cm
4WD Clearance (front axle)
14 inches 35 cm

Attachments

Attachment overview
Case IH 2200 loader
Case IH 2250 loader

Photos

CaseIH 495 with factory 4WD Carraro front axle

CaseIH 495 with factory 4WD Carraro front axle

CaseIH 495 with 2WD and ROPS

CaseIH 495 with 2WD and ROPS
