CaseIH 5220 Maxxum

The CaseIH 5220 Maxxum is a tractor produced by Caseih. It is equipped with a 239 ci 3.9 L engine. Transmission: 16 forward and 12 reverse. Operating weight: 9127 to 10361 pounds.

Fuel & Capacities

35.7 gal 135.1 L

Transmission

16 forward and 12 reverse

Operating Weight

9127 to 10361 pounds

Overview

	1992 - 1997 Maxxum SeriesUtility tractor Maxxum Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Original price was $36,000 in 1997

CaseIH 5220 Engine
CDC 3.9L 4-cyl diesel
Fuel tank	35.7 gal 135.1 L
	45 galOptOptional 170.3 L
Engine details ...

CaseIH 5220 Power
PTO (claimed)	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Two-post fixed ROPS. Cab optional with air-conditioning.

Hydraulics
Type	closed center pressure-flow compensated
Pressure	2600 psi 179.3 bar
Valves	1 to 3
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II
Control	lower-link draft sensing
Rear lift	7700 lbs 3492 kg
Front Hitch	II OptOptional
Front lift (at 24"/610mm)	5200 lbs 2358 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	94.3 inches 239 cm
4WD Wheelbase	92.3 inches 234 cm
Weight	9127 to 10361 pounds
Front tire	7.50-16
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
	95 OptOptional
Batteries	1
	2 OptOptional
Battery volts	12

References

Maxxum Tractors published in 1992, by CaseIH

Engine

Engine Detail — 239 ci / 3.9 L Diesel

Manufacturer	CDC
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	239 ci 3.9 L
Bore/Stroke	4.02x4.72 inches 102 x 120 mm
Fuel system	direct injection
Rated RPM	2200
Idle RPM	850-2355
Starter volts	12

Transmission

Transmission options
16-speed synchronized
16-speed 4-speed power shift

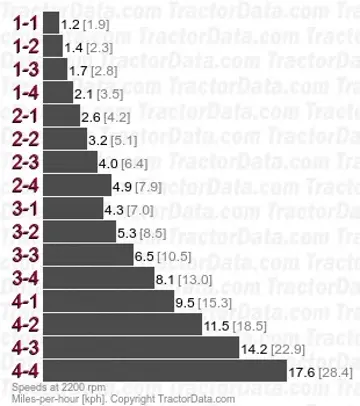

Transmission — 16 forward and 12 reverse synchronized

Type	synchronized
Gears	16 forward and 12 reverse
With 18.4-34 rear tires. Reverse speeds are 22% faster than forward.

Transmission — 16 forward and 12 reverse 4-speed power shift

Type	4-speed power shift
Gears	16 forward and 12 reverse
Four power shift gears in four synchronized ranges and shuttle shifting.

Dimensions

CaseIH 5220 Tires
Ag front	7.50-16
Ag rear	18.4-34

Dimensions
2WD Wheelbase	94.3 inches 239 cm
4WD Wheelbase	92.3 inches 234 cm
2WD Length	161.2 inches 409 cm
4WD Length	163.8 inches 416 cm
2WD ROPS Weight	9127 lbs 4140 kg
4WD Cab Weight	10361 lbs 4699 kg
2WD Clearance (front axle)	22.1 inches 56 cm
4WD Clearance (front axle)	17.2 inches 43 cm
Clearance (drawbar)	17.8 inches 45 cm
Flange rear axle
Bar rear axle	96 inch length 2438 mm
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 88 inches 152 to 223 cm (flange)
Rear tread	60 to 110 inches 152 to 279 cm (bar)

CaseIH 5220 Height
Steering wheel	78.4 inches 199 cm
Hood	68.8 inches 174 cm
Cab	105.2 inches 267 cm
Exhaust	106.7 inches 271 cm

Photos

CaseIH 5220 Maxxum tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 5220 Maxxum.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
