CaseIH 5230 Maxxum

The CaseIH 5230 Maxxum is a tractor produced by Caseih. It is equipped with a 359 ci 5.9 L engine. Transmission: 16 forward and 12 reverse. Operating weight: 9567 to 10626 pounds.

Fuel & Capacities
35.7 gal 135.1 L
Transmission
16 forward and 12 reverse
Operating Weight
9567 to 10626 pounds

Caseih 5230 Maxxum Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

CaseIH 5230 Maxxum tractor photo
1992 - 1997 Maxxum SeriesUtility tractor
1992 - 1997
Maxxum Series
Utility tractor
Production
Manufacturer
CaseIH
Utility tractor
Original price was $39,000 in 1997
CaseIH 5230 Engine
CDC 5.9L 6-cyl diesel
Fuel tank
35.7 gal 135.1 L
45 galOptOptional 170.3 L
Engine details ...
CaseIH 5230 Power
PTO (claimed)
90 hp 67.1 kW
Mechanical
Two- or four-wheel drive
Differential lock
electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Two-post fixed ROPS. Cab optional with air-conditioning.
Hydraulics
Type
closed center pressure-flow compensated
Pressure
2600 psi 179.3 bar
Valves
1 to 3
Pump flow
20 gpm 75.7 lpm
Tractor hitch
Rear Type
II
Control
lower-link draft sensing
Rear lift
7700 lbs 3492 kg
Front Hitch
II OptOptional
Front lift (at 24"/610mm)
5200 lbs 2358 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
electro-hydraulic wet disc
Rear PTO Type
540/1000
Dimensions & Tires
2WD Wheelbase
103.7 inches 263 cm
4WD Wheelbase
101.8 inches 258 cm
Weight
9567 to 10626 pounds
Front tire
7.50-18
Rear tire
16.9-38
Full dimensions and tires ...
Links
:
Electrical
Ground
negative
Charging system
alternator
Charging amps
65
95 OptOptional
Batteries
1
2 OptOptional
Battery volts
12
References
5230 Maxxum references literature
Maxxum Tractors published in 1992, by CaseIH

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer
CDC
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
359 ci 5.9 L
Bore/Stroke
4.02x4.72 inches 102 x 120 mm
Fuel system
direct injection
Rated RPM
2200
Idle RPM
850-2355
Starter volts
12

Transmission

Transmission options
16-speed synchronized
16-speed 4-speed power shift

Transmission — 16 forward and 12 reverse synchronized

Type
synchronized
Gears
16 forward and 12 reverse
With 16.9-38 rear tires. Reverse speeds are 22% faster than forward.

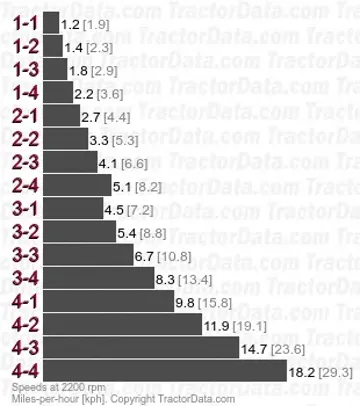

5230 Maxxum synchronized speeds

Transmission — 16 forward and 12 reverse 4-speed power shift

Type
4-speed power shift
Gears
16 forward and 12 reverse
Four power shift gears in four synchronized ranges and shuttle shifting.

Dimensions

CaseIH 5230 Tires
Ag front
7.50-18
Ag rear
16.9-38
Dimensions
2WD Wheelbase
103.7 inches 263 cm
4WD Wheelbase
101.8 inches 258 cm
2WD Length
170.6 inches 433 cm
4WD Length
174.2 inches 442 cm
2WD ROPS Weight
9567 lbs 4339 kg
4WD Cab Weight
10626 lbs 4819 kg
2WD Clearance (front axle)
22.1 inches 56 cm
4WD Clearance (front axle)
18.4 inches 46 cm
Clearance (drawbar)
18.8 inches 47 cm
Flange rear axle
Bar rear axle
96 inch length 2438 mm
Front tread
60 to 88 inches 152 to 223 cm
Rear tread
60 to 88 inches 152 to 223 cm (flange)
Rear tread
60 to 110 inches 152 to 279 cm (bar)
CaseIH 5230 Height
Steering wheel
80.7 inches 204 cm
Hood
69.8 inches 177 cm
Cab
106.1 inches 269 cm
Exhaust
107.6 inches 273 cm

Photos

CaseIH 5230 Maxxum

CaseIH 5230 Maxxum
