CaseIH 595

The CaseIH 595 is a tractor produced by Caseih. It is equipped with a 206 ci 3.4 L engine. The listed engine power is Diesel (net): 56 hp / 41.8 kW; Diesel (gross): 60 hp / 44.7 kW. Transmission: 16 forward and 8 reverse. Operating weight: 5640 to 7485 pounds.

Overview

	1991 - 1994 95 Utility SeriesUtility tractor 95 Utility Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price was $22,000 in 1994

CaseIH 595 Engine
Case IH 3.4L 4-cyl diesel
Engine details ...

CaseIH 595 Power
Engine (gross)	60 hp 44.7 kW
Engine (net)	56 hp 41.8 kW
PTO (claimed)	52 hp 38.8 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.

Capacity
ROPS Fuel	20 gal 75.7 L
Cab Fuel	29.5 gal 111.7 L
Hydraulic system	9 gal 34.1 L

Hydraulics
Type	open center
Capacity	9 gal 34.1 L
Valves	1
Pump flow	15.1 gpm 57.2 lpm

Tractor hitch
Rear Type	II
Rear lift	3530 lbs 1601 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	84.5 inches 214 cm
Weight	5640 to 7485 pounds
Front tire	7.50-16
Rear tire	14.9-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
95 Series Tractors published in 1990, by CaseIH

Engine

Engine Detail — 206 ci / 3.4 L Diesel

Manufacturer	Case IH
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Bore/Stroke	3.86x4.37 inches 98 x 111 mm
Power (net)	56 hp 41.8 kW
Power (gross)	60 hp 44.7 kW
Rated RPM	2300
Idle RPM	700-2590
Starter volts	12
Oil capacity	10.4 qts 9.8 L
Coolant capacity	14.5 qts 13.7 L

Transmission

Transmission options
8-speed partially synchronized
16-speed partial power shift
8-speed synchronized shuttle
16-speed creeper

Transmission — 8 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 4 reverse
Clutch	dry disc
Oil capacity	36 qts 34.1 L
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.
With 16.9x30 rear tires.

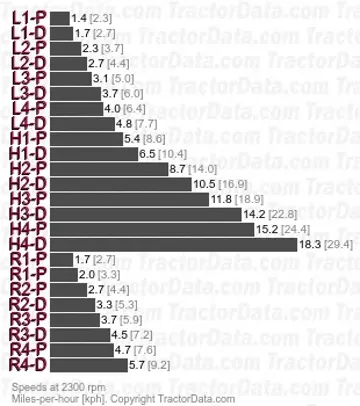

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Oil capacity	36 qts 34.1 L
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.
With 16.9x30 rear tires.

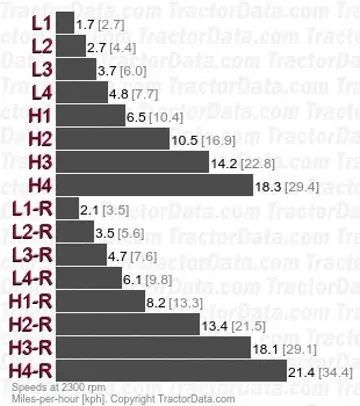

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Oil capacity	36 qts 34.1 L
Four gears each in high and low ranges, both forward and reverse.
With 16.9x30 rear tires.

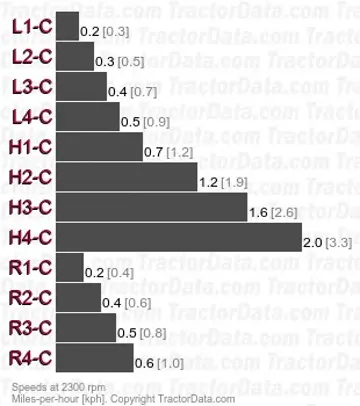

Transmission — 16 forward and 8 reverse creeper

Type	creeper
Gears	16 forward and 8 reverse
Four gears with high, low, and reverse ranges plus direct or creeper mode.
With 16.9x30 rear tires.

Dimensions

CaseIH 595 Tires
Ag front	7.50-16
Ag rear	14.9-24

Dimensions
Wheelbase	84.5 inches 214 cm
Length	142 inches 360 cm
Width	75 inches*With at minimum tread. 190 cm
Height (ROPS)	96.5 inches 245 cm
Height (cab)	100.4 inches 255 cm
2WD Clearance (front axle)	22.1 inches 56 cm
4WD Clearance (front axle)	14.5 inches 36 cm

CaseIH 595 Weight
2WD ROPS Shipping	5640 lbs 2558 kg
2WD Cab Shipping	6440 lbs 2921 kg
4WD ROPS Shipping	6685 lbs 3032 kg
4WD Cab Shipping	7485 lbs 3395 kg

Attachments

Attachment overview
Case IH 2200 loader
Case IH 2250 loader
Case IH 2255 loader

Photos

Four-wheel drive Case International 595.

Two-wheel drive Case International 595 XL.
