CaseIH 7210

The CaseIH 7210 is a tractor produced by Caseih. It is equipped with a 504.5 ci 8.3 L engine. The rated power output is 131.97 hp 98.4 kW. Transmission: 24 forward and 6 reverse. Operating weight: 15215 to 16590 pounds.

Overview

	1994 - 1996 Magnum 7200 SeriesRow-Crop tractor
1994 - 1996
Magnum 7200 Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $71,000 in 1996

CaseIH 7210 Engine
CDC 8.3L 6-cyl diesel
Engine details ...

CaseIH 7210 Power
PTO (claimed)	130 hp 96.9 kW
Drawbar (tested)	116.84 hp 87.1 kW
PTO (tested)	132.31 hp 98.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electric rear
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	78 gal 295.2 L
	95 galOptOptional 359.6 L
Hydraulic system	45.5 gal 172.2 L

Hydraulics
Type	closed center pressure flow compensated (PFC)
Capacity	45.5 gal 172.2 L
Pressure	2300 psi 158.6 bar
Valves	2 to 4
SCV flow	22 gpm 83.3 lpm
Total flow	29 gpm 109.8 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electronic lower-link draft sensing
Rear lift	7700 lbs 3492 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (dual-shaft 1.375)

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	15215 to 16590 pounds
Front tire	11.00-16
Rear tire	18.4R-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	110
Charging volts	12
Batteries	2
Battery CCA	950
Battery volts	12

References
Magnum 7200 Series published in 1996, by CaseIH

Engine

Engine Detail — 504.5 ci / 8.3 L Diesel

Manufacturer	CDC
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	504.5 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Fuel system	mechanical injection
Air cleaner	dual paper elements
Pre-heating	block heater OptOptional
Compression	17.3:1
Rated RPM	2200
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	28 qts 26.5 L

CaseIH 7210 Engine

Transmission

Transmission options
18-speed full power shift
24-speed creeper

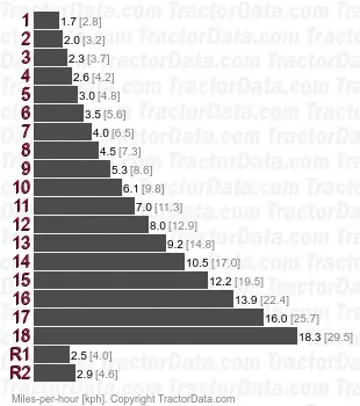

Transmission — 18 forward and 4 reverse full power shift

Type	full power shift
Gears	18 forward and 4 reverse
Clutch	hydraulic wet disc
Transmission
Type	creeper
Gears	24 forward and 6 reverse

Dimensions

CaseIH 7210 Tires
Ag front	11.00-16
Ag rear	18.4R-38

Dimensions
Wheelbase	118.3 inches 300 cm
2WD Clearance (front axle)	22.4 inches 56 cm
4WD Clearance (front axle)	16.6 inches 42 cm
Rear axle	3.5 by 96 inches 88 by 2438 mm
Rear axle	3.5 by 112 inches 88 by 2844 mm
2WD Front tread	60 to 88 inches 152 to 223 cm
4WD Front tread	60 to 95 inches 152 to 241 cm

CaseIH 7210 Weight
2WD Shipping	15215 lbs 6901 kg
4WD Shipping	16230 lbs 7361 kg
Operating	16,590 lbs (4WD) 7525 kg
Ballasted	19,015 lbs 8625 kg

Tests

OCED Tractor Test 1609
Diesel 18-speed 4WD June 1 - July 1, 1988 Link: OCED Tractor Test 1609 file
PTO performance
Max power	132.31 hp 98.7 kW
Fuel use	7.7 gal/hour 29.1 l/hour
Power at rated engine speed	131.97 hp 98.4 kW
Fuel use	8.0 gal/hour 30.3 l/hour
Drawbar performance
Max power	116.84 hp 87.1 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Gear 9 used for power test.
Max pull	15,498 lbs 7029 kg
Gear 4 used for pull test.

Photos

CaseIH 7210
