CaseIH 856 XL
The CaseIH 856 XL is a tractor produced by Caseih. It is equipped with a 239 ci 3.9 L engine. The listed engine power is Diesel (listed): 85 hp / 63.4 kW. Transmission: IH-Total-synchron. Operating weight: 8465 to 9082 pounds.
Engine Power
Diesel (listed): 85 hp / 63.4 kW
Fuel & Capacities
28 gal
106.0 L
Transmission
IH-Total-synchron
Operating Weight
8465 to 9082 pounds
Overview
 | 1985 - 1987
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Neuss, Germany | |
CaseIH 856 XL Engine | |
|---|---|
International Harvester 3.9L 4-cyl diesel | |
Engine details ...  |
CaseIH 856 XL Power | |
|---|---|
Engine | 85 hp
63.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with heat. |
Capacity | |
|---|---|
Fuel | 28 gal
106.0 L |
Front axle | 9.5 qts
9.0 L |
Hydraulics | |
|---|---|
Pressure | 2465 psi
170.0 bar |
Valves | up to 3 |
Pump flow | 6.6 gpm
25.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 8708 lbs
3949 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 93.9 inches
238 cm |
4WD Wheelbase | 92.4 inches
234 cm |
Weight | 8465 to 9082 pounds |
Front tire | 10.00x16 |
Rear tire | 16.9R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 33 |
Battery volts | 12 |
References | |
|---|---|
 | |
856XL - 956LX - 1056XL published by CaseIH | |
856XL - 956LX - 1056XL published in 1985, by CaseIH |
Engine
Engine Detail — 239 ci / 3.9 L Diesel
Manufacturer | International Harvester DT-239 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 239 ci
3.9 L |
Bore/Stroke | 3.87x5.06 inches
98 x 129 mm |
Power | 85 hp
63.4 kW |
Fuel system | direct injection |
Rated RPM | 2300 |
Torque | 228.6 lb-ft
310.0 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 12.7 qts
12.0 L |
Coolant capacity | 22.2 qts
21.0 L |
Transmission
Transmission options | |
|---|---|
16-speed | |
8-speed |

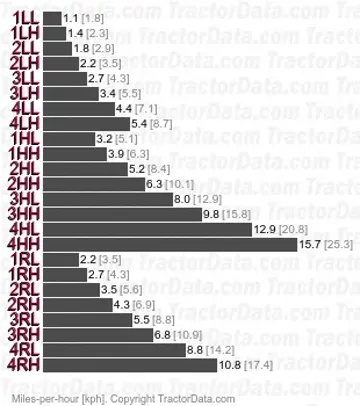

Transmission — IH-Total-synchron
Transmission | IH-Total-synchron |
Gears | 16 forward and 8 reverse |
Oil capacity | 44.4 qts
42.0 L |
With 16.9R34 rear tires. | |
 | |
Transmission — 8 forward and 4 reverse
Gears | 8 forward and 4 reverse |
Dimensions
CaseIH 856 XL Tires | |
|---|---|
Standard tires (ag) | Front: 10.00x16. Rear: 16.9R34 |
Dimensions | |
|---|---|
2WD Wheelbase | 93.9 inches
238 cm |
4WD Wheelbase | 92.4 inches
234 cm |
2WD Length | 144.9 inches
368 cm |
4WD Length | 150.4 inches
382 cm |
2WD Height (cab) | 104.9 inches
266 cm |
4WD Height (cab) | 105.9 inches
268 cm |
2WD Weight | 8465 lbs
3839 kg |
4WD Weight | 9082 lbs
4119 kg |
2WD Clearance (front axle) | 20.5 inches
52 cm |
4WD Clearance (front axle) | 15.9 inches
40 cm |
2WD Front tread | 53 to 72 inches
134 to 182 cm |
4WD Front tread | 65 to 71 inches
165 to 180 cm |
Rear tread | 62 to 78 inches
157 to 198 cm |
Photos
CaseIH 856 XL tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih 856 XL based on its 85 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 856 XL.
Estimated Continuous Field Runtime: 6.3 hrs
Approximately 6.3 hours of continuous field operation at ~75% rated power on a full tank (28 gal / 106 L).
Estimated 75% Load Fuel Burn~4.4 gal/hr (16.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih 856 XL Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 856 XL.
Converted Equivalents:
Horsepower (HP)85 hp
Kilowatts (kW)63.4 kW
Metric Horsepower (PS / CV)86.2 PS
