CaseIH 885

The CaseIH 885 is a tractor produced by Caseih. It is equipped with a 268 ci 4.4 L engine. The listed engine power is Diesel (net): 79 hp / 58.9 kW; Diesel (gross): 84 hp / 62.6 kW. Transmission: 8 forward and 4 reverse. Operating weight: 6065 to 7849 pounds.

Overview

	1985 - 1990 85 Utility SeriesUtility tractor 85 Utility Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price was $25,700 in 1990

CaseIH 885 Engine
Case International 4.4L 4-cyl diesel
Engine details ...

CaseIH 885 Power
Engine (gross)	84 hp 62.6 kW
Engine (net)	79 hp 58.9 kW
PTO (claimed)	72 hp 53.7 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Independent hydraulic wet disc brakes
ROPS available. Cab with heat and air-conditioning optional.

Capacity
Fuel	20 gal 75.7 L
2WD Hydraulic system	9 gal 34.1 L
4WD Hydraulic system	9.65 gal 36.5 L

Hydraulics
Type	open center gear pump
2WD Capacity	9 gal 34.1 L
4WD Capacity	9.65 gal 36.5 L
Pressure	2500 psi 172.4 bar
Valves	1 to 3
Pump flow	15.8 gpm 59.8 lpm
Total flow	15.8 gpm 59.8 lpm
	18.6 gpmOptOptional 70.4 lpm
Steering flow	2.5 gpm 9.5 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	3260 lbs 1478 kg

Power Take-off (PTO)
Rear PTO	independent dual shaft
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	88 inches 223 cm
4WD Wheelbase	85.2 inches 216 cm
Weight	6065 to 7849 pounds
Front tire	7.50-18
Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	Lucas alternator
ROPS Charging amps	45
Cab Charging amps	65
Battery volts	12
Battery AH	93

References
Model 885 Tractor published in 1986, by CaseIH

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer	Case International D-268
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	268 ci 4.4 L
Bore/Stroke	3.94x5.51 inches 100 x 140 mm
Power (net)	79 hp 58.9 kW
Power (gross)	84 hp 62.6 kW
Compression	15.1:1
Rated RPM	2400
Idle RPM	650-2650
Torque	205 lb-ft 278.0 Nm
Torque RPM	1600
Starter volts	12
Oil capacity	9 qts 8.5 L
Coolant capacity	14.5 qts 13.7 L

Transmission

Transmission options
8-speed synchro
16-speed two-speed power shift
8-speed shuttle

Transmission — 8 forward and 4 reverse synchro

Type	synchro
Gears	8 forward and 4 reverse
Synchronized 4-speed with high, low, and reverse ranges.

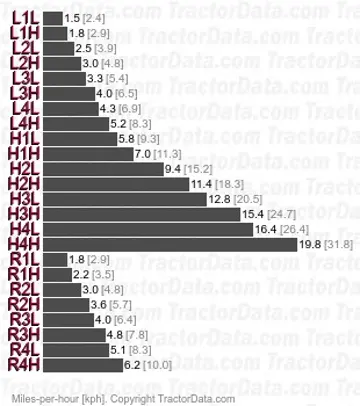

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	305mm dry disc
Synchronized 4-speed with high, low, and reverse ranges and electric-hydraulic power shift between direct and low drive.
With 18.4x30 rear tires.

Transmission — 8 forward and 4 reverse shuttle

Type	shuttle
Gears	8 forward and 4 reverse
Synchronized 4-speed with high, low, and reverse ranges and forward-reverse power shift shuttle lever.

Dimensions

CaseIH 885 Tires
Ag front	7.50-18 F2
	11.2-24 R1 (4WD)
Ag rear	18.4-30 R1

Dimensions
2WD Wheelbase	88 inches 223 cm
4WD Wheelbase	85.2 inches 216 cm
2WD Length	142 inches 360 cm
4WD Length	148 inches 375 cm
2WD Width	73.2 inches 185 cm
4WD Width	78 inches 198 cm
Height (ROPS)	97.4 inches 247 cm
Height (cab)	102 inches 259 cm
Ground clearance	18.2 inches 46 cm
2WD Front tread	56 to 77 inches 142 to 195 cm
4WD Front tread	54 to 72 inches 137 to 182 cm
Rear tread	60 to 76 inches 152 to 193 cm (utility)
Rear tread	54 to 96 inches 137 to 243 cm (row-crop)

CaseIH 885 Weight
Shipping	6,065 lbs (2WD utility ROPS) 2751 kg
	7,223 lbs (4WD ROPS) 3276 kg
2WD Operating	7364 lbs 3340 kg
4WD Operating	7849 lbs 3560 kg

Photos

Case International 885 with four-wheel drive.

Case International 885 with two-wheel drive.

Case International 885 with two-wheel drive, right side.
