CaseIH 8910

The CaseIH 8910 is a tractor produced by Caseih. It is equipped with a 504.5 ci 8.3 L engine. The rated power output is 137.44 hp 102.5 kW. Transmission: 24 forward and 6 reverse. Operating weight: 15215 to 17224 pounds.

Overview

	1997 - 1998 Magnum 8900 SeriesRow-Crop tractor
1997 - 1998
Magnum 8900 Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $78,000 in 1998

CaseIH 8910 Engine
CDC 8.3L 6-cyl diesel
Engine details ...

CaseIH 8910 Power
PTO (claimed)	135 hp 100.7 kW
Drawbar (tested)	116.38 hp 86.8 kW
PTO (tested)	147.91 hp 110.3 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electric rear
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	87 gal 329.3 L
	104 galOptOptional 393.6 L
	117 galOptOptional 442.8 L
Hydraulic system	45.5 gal 172.2 L

Hydraulics
Type	closed center pressure-flow compensated
Capacity	45.5 gal 172.2 L
Pressure	2200 psi 151.7 bar
Valves	2 to 4
Pump flow	29 gpm 109.8 lpm
SCV flow	27 gpm 102.2 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electronic lower-link draft sensing
Rear lift	9500 lbs 4309 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (dual-shaft 1.375)

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	15215 to 17224 pounds
Front tire	14L-16.1
Rear tire	20.8R-42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	110
Charging volts	12
Batteries	2
Battery CCA	950
Battery volts	12

References
Introducing The New 8900 Series Magnum Tractors published in 1996, by CaseIH
8900 Series Tractors published in 1997, by CaseIH

Engine

Engine Detail — 504.5 ci / 8.3 L Diesel

Manufacturer	CDC
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	504.5 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Fuel system	mechanical injection
Air cleaner	dual dry element
Compression	16.5:1
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	28 qts 26.5 L

CaseIH 8910 Engine

Transmission

Transmission options
18-speed full power shift
24-speed creeper

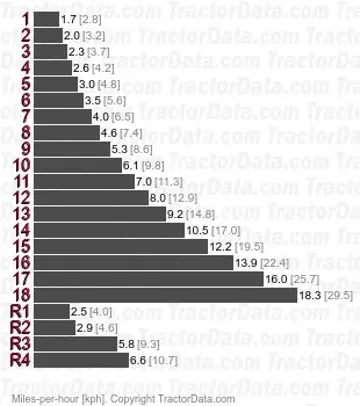

Transmission — 18 forward and 4 reverse full power shift

Type	full power shift
Gears	18 forward and 4 reverse
Clutch	hydraulic wet disc
Transmission
Type	creeper
Gears	24 forward and 6 reverse

Dimensions

CaseIH 8910 Tires
Ag front	14L-16.1
Ag rear	20.8R-42

Dimensions
Wheelbase	118.3 inches 300 cm
2WD Clearance (front axle)	22.4 inches 56 cm
4WD Clearance (front axle)	16.6 inches 42 cm
Rear axle	3.5 by 112 inches 88 by 2844 mm
Rear axle	3.5 by 96 inches 88 by 2438 mm
Front tread	60 to 88 inches 152 to 223 cm

CaseIH 8910 Weight
2WD Shipping	15215 lbs 6901 kg
4WD Shipping	16230 lbs 7361 kg
Operating	17,224 lbs 7812 kg
Ballasted	18,956 lbs 8598 kg

Tests

OCED Tractor Test 1734
Diesel 18-speed 4WD September 10 - October 1, 1997 Link: OCED Tractor Test 1734 file
PTO performance
Max power	147.91 hp 110.3 kW
Fuel use	8.7 gal/hour 32.9 l/hour
Power at rated engine speed	137.44 hp 102.5 kW
Fuel use	8.7 gal/hour 32.9 l/hour
Drawbar performance
Max power	116.38 hp 86.8 kW
Fuel use	8.6 gal/hour 32.6 l/hour
Gear 8 used for power test.
Max pull	16529 lbs 7497 kg
Gear 4 used for pull test.

Photos

Case IH 8910 with four-wheel drive.

Case IH 8910 with two-wheel drive.
