CaseIH Farmall 90C

The CaseIH Farmall 90C is a tractor produced by Caseih. It is equipped with a 207 ci 3.4 L engine. The listed engine power is Engine Detail — 207 ci / 3.4 L (gross): 86 hp / 64.1 kW. Transmission: 24 forward and reverse. Operating weight: 6989 to 8157 pounds.

Engine Power

Engine Detail — 207 ci / 3.4 L (gross): 86 hp / 64.1 kW

Fuel & Capacities

30.3 gal 114.7 L

Transmission

24 forward and reverse

Operating Weight

6989 to 8157 pounds

Overview

	2015 - Farmall C SeriesUtility tractor
2015 -
Farmall C Series
Utility tractor

Production
Manufacturer	CaseIH (a part of CNH)
Utility tractor
Original price	$50,906 (2016 mech-shuttle ROPS 2WD )
	$74,557 (2016 Hi-Lo Cab 4WD )

Variants
PowerStar 90	similar New Holland model

CaseIH Farmall 90C Engine
FPT 3.4L 4-cyl
Fuel tank	30.3 gal 114.7 L
Exhaust fluid (DEF)	2.8 gal 10.6 L
Engine details ...

CaseIH Farmall 90C Power
Engine (gross)	86 hp 64.1 kW
PTO (claimed)	73 hp 54.4 kW
Drawbar (tested)	51.4 hp 38.3 kW
PTO (tested)	75.6 hp 56.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Power steering
Wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Valves	2 or 3
Pump flow	16..9 gpm 60.6 lpm

Tractor hitch
Rear Type	II/I
Control	top link draft sensing
Rear lift (at 24"/610mm)	4339 lbs 1968 kg
	5620 lbsOptOptional 2549 kg
Rear Arms	telescopic link ends
Drawbar	swinging extendable drawbar

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	540/540E OptOptional
	540/1000 OptOptional

Dimensions & Tires
2WD Wheelbase	92.2 inches 234 cm
4WD Wheelbase	90 inches 228 cm
Weight	6989 to 8157 pounds
Front tire	7.50x16
2WD Rear tire	16.9R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References

Farmall C Series Tractor Specifications published in 2015, by CaseIH
Farmall Utility Series Tractors published in 2021, by CaseIH

Engine

Engine Detail — 207 ci / 3.4 L

Manufacturer	FPT
Configuration	wastegate turbocharged and aftercooled, 4-cylinder, liquid-cooled
Displacement	207 ci 3.4 L
Bore/Stroke	3.90x4.33 inches 99 x 110 mm
Emissions	Tier 4
Emission control	selective catalytic reduction with cooled exhaust-gas recirculation (SCR)
Power (gross)	86 hp 64.1 kW
Fuel system	high pressure common rail electronic direct injection
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed mechanical shuttle
12-speed power shuttle
24-speed

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Four synchronized gears in three non-synchronized ranges with mechanical shuttle shift.

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Four synchronized gears in three non-synchronized ranges with power shuttle shift.

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Four synchronized gears in three non-synchronized ranges with power shuttle shift and two-speed high-low shift.

Dimensions

CaseIH Farmall 90C Tires
2WD Standard tires (ag)	Front: 7.50x16. Rear: 16.9R30
4WD Standard tires (ag)	Front: 11.2R24. Rear: 16.9R30
4WD Standard tires (ag)	Front: 14.9R24. Rear: 18.4R34

Dimensions
2WD Wheelbase	92.2 inches 234 cm
4WD Wheelbase	90 inches 228 cm
2WD Length	163.1 inches 414 cm
4WD Length	160.1 inches 406 cm
Width	75.7 inches 192 cm
Height (ROPS)	106.5 inches 270 cm
Height (cab)	102.1 inches 259 cm
Flange rear axle

CaseIH Farmall 90C Weight
2WD ROPS	6989 lbs 3170 kg
4WD ROPS	7672 lbs 3480 kg
2WD Cab	7474 lbs 3390 kg
4WD Cab	8157 lbs 3700 kg

Tests

OCED Tractor Test 3002
Diesel 12-speed 4WD April 2016 - 2016, Link: OCED Tractor Test 3002 file
PTO performance
Max power	75.6 hp 56.4 kW
Fuel use	4.4 gal/hour 16.7 l/hour
Power at rated engine speed	66.6 hp 49.7 kW
Fuel use	4.7 gal/hour 17.8 l/hour
Power at rated PTO speed	75.6 hp 56.4 kW
Fuel use	4.4 gal/hour 16.7 l/hour
Drawbar performance
Max power	51.4 hp 38.3 kW
Fuel use	4.3 gal/hour 16.3 l/hour
Gear 3M used for power test.
Max pull	6765 lbs 3068 kg
Gear 2M used for pull test.

Attachments

Attachment overview
Case IH L575 loader
Case IH L735 loader

Photos

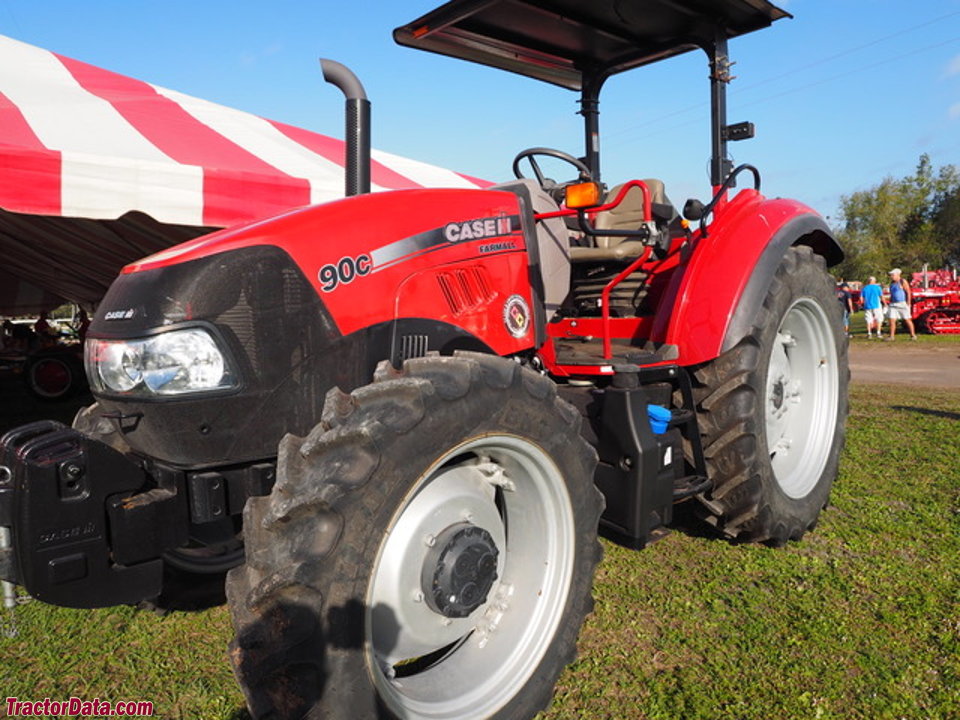

CaseIH Farmall 90C

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Farmall 90C based on its 86 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Farmall 90C.

Estimated Continuous Field Runtime: 6.8 hrs

Approximately 6.8 hours of continuous field operation at ~75% rated power on a full tank (30.3 gal / 114.7 L).

Estimated 75% Load Fuel Burn~4.5 gal/hr (16.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
