CaseIH Magnum 180

The CaseIH Magnum 180 is a tractor produced by Caseih. It is equipped with a 410.6 ci 6.7 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: ininite forward and infinite (2-range) reverse (4-range). Operating weight: 19,000 lbs 8618 kg.

Engine Power

Diesel (listed): 180 hp / 134.2 kW

Fuel & Capacities

118 gal 446.6 L

Transmission

ininite forward and infinite (2-range) reverse (4-range)

Operating Weight

19,000 lbs 8618 kg

Overview

	2009 - 2025 Model year 2009-20102014-20192019-2025 Magnum SeriesRow-Crop tractor Magnum Series Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA

CaseIH Magnum 180 Engine
FPT 6.7L 6-cyl diesel
Engine details ...

CaseIH Magnum 180 Power
Engine	180 hp 134.2 kW
PTO (claimed)	150 hp 111.9 kW
Drawbar (tested)	132.7 hp 99.0 kW
PTO (tested)	179.8 hp 134.1 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Surveyor cab standard with air-conditioning.

Capacity
Fuel	118 gal 446.6 L
Hydraulic system	26.5 gal 100.3 L

Hydraulics
Type	Pressue Flow Compensated (PFC)
Capacity	26.5 gal 100.3 L
Valves	3 to 5
Total flow	39.6 gpm 149.9 lpm

Tractor hitch
Rear Type	II/III
Rear lift	12,787 lbs 5800 kg
	15,873 lbs (optional) 7199 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	1000 (1.75)

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	19,000 lbs 8618 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	150
	200 (optional)

References

Magnum 180-210 Series Tractors published in 2009, by CaseIH
Magnum Series Tractors published in 2011, by CaseIH
Magnum Series Tractors New 2011 Preview published in 2010, by CaseIH

Engine

Engine Detail — 410.6 ci / 6.7 L Diesel

Manufacturer	FPT
Configuration	turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	410.6 ci 6.7 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Tier 3
Power	180 hp 134.2 kW
Maximum Power	234 hp 174.5 kW
Fuel system	electronic high-pressure common rail
Cooling system	viscous fan
Compression	16.5:1
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	17 qts 16.1 L

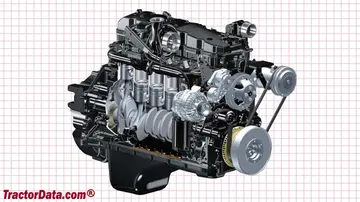

CaseIH Magnum 180 Engine

Transmission

Transmission options
18-speed full power shift
19-speed full power shift
continuously variable transmission (CVT)

Transmission — 18 forward and 6 reverse full power shift

Type	full power shift
Gears	18 forward and 6 reverse

Transmission — 19 forward and 6 reverse full power shift

Type	full power shift
Gears	19 forward and 6 reverse

Transmission — ininite forward and infinite (2-range) reverse (4-range) continuously variable transmission (CVT)

Type	continuously variable transmission (CVT)
Gears	ininite forward and infinite (2-range) reverse (4-range)

Dimensions

CaseIH Magnum 180 Tires

Dimensions
Wheelbase	118.3 inches 300 cm
Height (cab)	128.5 inches 326 cm
Shipping weight	19,000 lbs 8618 kg
Rear axle	4.125 by 112 inches 104 by 2844 mm
Rear axle	4.125 by 119 inches 104 by 3022 mm (optional)

Tests

OCED Tractor Test 2423
Diesel 19-speed 4WD June 2007 - September 2007, Link: OCED Tractor Test 2423 file
PTO performance
Max power	179.8 hp 134.1 kW
Fuel use	10.0 gal/hour 37.9 l/hour
Power at rated engine speed	158.6 hp 118.3 kW
Fuel use	9.8 gal/hour 37.1 l/hour
Power at rated PTO speed	164.4 hp 122.6 kW
Fuel use	9.8 gal/hour 37.1 l/hour
Drawbar performance
Max power	132.7 hp 99.0 kW
Fuel use	9.9 gal/hour 37.5 l/hour
Gear 8 used for power test.
Max pull	16,805 lbs 7622 kg
Gear 6 used for pull test.

Photos

CaseIH Magnum 180 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Magnum 180 based on its 180 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Magnum 180.

Estimated Continuous Field Runtime: 12.6 hrs

Approximately 12.6 hours of continuous field operation at ~75% rated power on a full tank (118 gal / 446.7 L).

Estimated 75% Load Fuel Burn~9.4 gal/hr (35.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
