CaseIH Magnum 220

The CaseIH Magnum 220 is a tractor produced by Caseih. It is equipped with a 410.6 ci 6.7 L engine. The listed engine power is Diesel (gross): 220 hp / 164.1 kW. Transmission: infinite forward and reverse. Operating weight: 21750 lbs 9865 kg.

Engine Power

Diesel (gross): 220 hp / 164.1 kW

Fuel & Capacities

160 gal 605.6 L

Transmission

infinite forward and reverse

Operating Weight

21750 lbs 9865 kg

Overview

	2014 - 2025 Model year 2014-20192019-2025 Magnum SeriesRow-Crop tractor Magnum Series Row-Crop tractor

Production
Manufacturer	CaseIH (a part of CNH)
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price	$206,347 (2014 Power shift )
	$216,106 (2014 CVT )
	$220,020 (2017 Power shift )
	$230,425 (2017 CVT )

CaseIH Magnum 220 Engine
FPT 6.7L 6-cyl diesel
Fuel tank	160 gal 605.6 L
Exhaust fluid (DEF)	17.5 gal 66.2 L
Engine details ...

CaseIH Magnum 220 Power
Engine (gross)	220 hp 164.1 kW
Engine (max)	260 hp 193.9 kW
PTO (claimed)	185 hp 138.0 kW
Drawbar (tested)	168.13 hp 125.4 kW
PTO (tested)	209.36 hp 156.1 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Power steering
Hydraulic wet disc brakes
Magnum cab standard with air-conditioning. Optional cab suspension.

Hydraulics
Type	pressure flow compensating
Rear valves	3 to 5
Pump flow	41 gpm 155.2 lpm
	43 gpm (CVT) 162.8 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electronic lower link draft sensing
Rear lift (at 24"/610mm)	14100 lbs 6395 kg
Drawbar	Cat. 3

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	118 inches 299 cm
Weight	21750 lbs 9865 kg
Front tire	380/85R34
Rear tire	480/80R46
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References

Magnum 180-380 Tractors published in 2014, by CaseIH
Magnum Series Tractors published in 2019, by CaseIH

Engine

Engine Detail — 410.6 ci / 6.7 L Diesel

Manufacturer	FPT
Configuration	wastegate turbocharged air-to-air intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	410.6 ci 6.7 L
Bore/Stroke	4.095x5.20 inches 104 x 132 mm
Emissions	Tier 4
Emission control	selective catalytic reduction (SCR)
Rated Power (gross)	220 hp 164.1 kW
Maximum Power (gross)	260 hp 193.9 kW
Fuel system	electronic high pressure common rail direct injection
Cooling system	viscous fan
Rated RPM	2200
Starter	electric
Starter volts	12

CaseIH Magnum 220 Engine

Transmission

Transmission options
19-speed full power shift
continuously variable transmission (CVT)

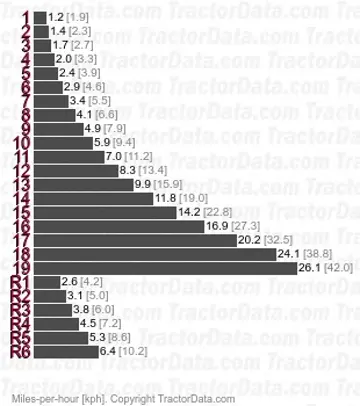

Transmission — 19 forward and 6 reverse full power shift

Type	full power shift
Gears	19 forward and 6 reverse
Clutch	electro-hydraulic wet disc

Transmission — infinite forward and reverse continuously variable transmission (CVT)

Type	continuously variable transmission (CVT)
Gears	infinite forward and reverse

Dimensions

CaseIH Magnum 220 Tires
Ag front	380/85R34
Ag rear	480/80R46

Dimensions
Wheelbase	118 inches 299 cm
Length	234 inches 594 cm
Height (cab)	126.2 inches 320 cm
Operating weight	21750 lbs 9865 kg
Front axle	4WD
Front axle	Suspended 4WD

Tests

OCED Tractor Test 2120
Diesel 19-speed 4WD May 18 - June 8, 2015 Link: OCED Tractor Test 2120 file
PTO performance
Max power	209.36 hp 156.1 kW
Fuel use	10.6 gal/hour 40.1 l/hour
Power at rated engine speed	191.22 hp 142.6 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Power at rated PTO speed	209.04 hp 155.9 kW
Fuel use	10.7 gal/hour 40.5 l/hour
Drawbar performance
Max power	168.13 hp 125.4 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Gear 9 used for power test.
Max pull	19983 lbs 9064 kg
Gear 6 used for pull test.

Photos

CaseIH Magnum 220 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Magnum 220 based on its 220 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Magnum 220.

Estimated Continuous Field Runtime: 14 hrs

Approximately 14 hours of continuous field operation at ~75% rated power on a full tank (160 gal / 605.7 L).

Estimated 75% Load Fuel Burn~11.4 gal/hr (43.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
