CaseIH Puma 140

The CaseIH Puma 140 is a tractor produced by Caseih. It is equipped with a 411 ci 6.7 L engine. The rated power output is 140 hp 104.4 kW. Transmission: powershift with EconoGear. Operating weight: 13230 to 13725 pounds.

Overview

	2008 - 2011 Puma SeriesUtility tractor
2008 - 2011
Puma Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Basildon, England
Original price was $105,788 in 2010

CaseIH Puma 140 Engine
CNH 6.7L 6-cyl diesel
Engine details ...

CaseIH Puma 140 Power
Engine (gross)	140 hp 104.4 kW
PTO (claimed)	120 hp 89.5 kW
Drawbar (tested)	99.9 hp 74.5 kW
PTO (tested)	137.5 hp 102.5 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Trailer brakes	hydraulic optional
Cab standard with air-conditioning. Optional suspended cab.

Capacity
Fuel	79 gal*Prior to 2010 299.0 L
	75 gal*After 2010 283.9 L
Hydraulic system	19.6 gal 74.2 L

Hydraulics
Type	closed center pressure flow compensated (PFC)
Capacity	19.6 gal 74.2 L
Valves	2 to 4
Pump flow	26.5 gpm 100.3 lpm
Total flow	43.7 gpm 165.4 lpm
Steering flow	17 gpm 64.3 lpm

Tractor hitch
Rear Type	2/3N
Control	electronic draft control
Rear lift	12,185 lbs 5527 kg
	15,197 lbs (100mm cylinders) 6893 kg
Rear Arms	flexible link ends with telescopic stabilizer

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	107.8 inches 273 cm
	109.7 inches (suspended front axle) 278 cm
Weight	13230 to 13725 pounds
Front tire	14.9R28
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120 *Prior to 2010
	150 *After 2010
	200 *Optional after 2010
Battery CCA	960
Battery volts	12

Engine

Engine Detail — 411 ci / 6.7 L Diesel

Manufacturer	CNH
Configuration	turbocharged air-to-air aftercooled diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	411 ci 6.7 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Tier 3
Power (gross)	140 hp 104.4 kW
Fuel system	electronic high-pressure common rail
Cooling system	viscous fan
Air cleaner	dual paper elements
Compression	17.5:1
Rated RPM	2200
Starter volts	12
Oil capacity	16 qts 15.1 L

Transmission

Transmission options
18-speed partial power shift
19-speed

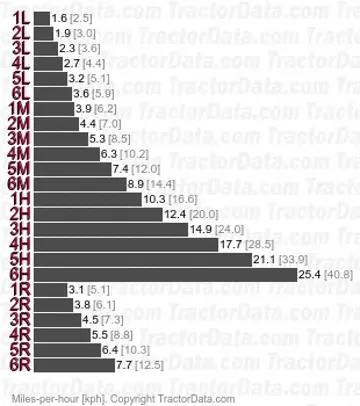

Transmission — 18 forward and 6 reverse partial power shift

Type	partial power shift
Gears	18 forward and 6 reverse
Clutch	hydraulic wet disc
Six power-shift gears in three ranges.

Transmission — powershift with EconoGear

Transmission	powershift with EconoGear
Gears	19 forward and 6 reverse

Dimensions

CaseIH Puma 140 Tires
Standard tires (ag)	Front: 14.9R28. Rear: 18.4R38

Dimensions
Wheelbase	107.8 inches 273 cm
	109.7 inches (suspended front axle) 278 cm
Height (cab)	118.3 inches 300 cm
Shipping weight	13,230 lbs 6001 kg
Operating weight	13,725 lbs 6225 kg
Flange rear axle
Bar rear axle	3.625 by 98 inches 92 by 2489 mm
Bar rear axle	3.625 by 112 inches 92 by 2844 mm
Front tread	61.8 to 89.2 inches 156 to 226 cm

Tests

OCED Tractor Test 2495
Diesel 18-speed 4WD September 2008 - January 2009, Link: OCED Tractor Test 2495 file
PTO performance
Max power	137.5 hp 102.5 kW
Fuel use	7.6 gal/hour 28.8 l/hour
Power at rated engine speed	121.5 hp 90.6 kW
Fuel use	7.6 gal/hour 28.8 l/hour
Power at rated PTO speed	125.4 hp 93.5 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Drawbar performance
Max power	99.9 hp 74.5 kW
Fuel use	7.5 gal/hour 28.4 l/hour
Gear 3-Medium used for power test.
Max pull	12,915 lbs 5858 kg
Gear 1-Low used for pull test.

Photos

CaseIH Puma 140
