CaseIH Puma 195

The CaseIH Puma 195 is a tractor produced by Caseih. It is equipped with a 411 ci 6.7 L engine. The rated power output is 195 hp 145.4 kW. Transmission: EconoGear. Drive type: 4x2 2WD. Operating weight: 15708 to 17635 pounds.

Overview

	2007 - 2010 Puma SeriesRow-Crop tractor
2007 - 2010
Puma Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Factories	Basildon, England
	St. Valentin, Austria
Original price	$136,985 (2010)

CaseIH Puma 195 Engine
CNH 6.7L 6-cyl diesel
Engine details ...

CaseIH Puma 195 Power
Engine	195 hp 145.4 kW
PTO (claimed)	165 hp 123.0 kW
PTO (tested)	189.4 hp 141.2 kW
Performance test details ...

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Trailer brakes	hydraulic optional
Cab standard.

Capacity
Fuel	116 gal (early) 439.1 L
	107 gal (late) 405.0 L
Hydraulic system	26.5 gal 100.3 L

Hydraulics
Type	pressure flow compensating (PFC)
Capacity	26.5 gal 100.3 L
Valves	3 to 5
Pump flow	31.7 gpm (powershift std.) 120.0 lpm
	39.6 gpm (CVT, ps-opt.) 149.9 lpm
	45 gpm (CVT opt.) 170.3 lpm
Total flow	48.7 gpm (powershift std.) 184.3 lpm
	56.6 gpm (CVT, ps-opt.) 214.2 lpm
	62 gpm (CVT opt.) 234.7 lpm
Steering flow	17 gpm 64.3 lpm

Tractor hitch
Rear Type	II/IIIN
Rear lift (at ends)	12,787 lbs 5800 kg
	15,873 lbs (optional) 7199 kg
Rear lift (at 24"/610mm)	10,900 lbs 4944 kg
	13,600 lbs (optional) 6168 kg
Front Hitch	optional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1-3/8)
	1000 (1-3/4)
	1000/1000E (with CVT)
Front PTO	optional
Front PTO Type	1000

Dimensions & Tires
Wheelbase	113.6 inches 288 cm
Weight	15708 to 17635 pounds
Front tire	16.9R30
Rear tire	20.8R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	150
Battery CCA	1300
Battery volts	12

References
Puma Series Tractors published in 2007, by CaseIH

Engine

Engine Detail — 411 ci / 6.7 L Diesel

Manufacturer	CNH
Configuration	intercooled turbocharged diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	411 ci 6.7 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Tier 3
Power	195 hp 145.4 kW
Fuel system	electronic high-pressure common rail
Cooling system	viscous fan
Air cleaner	dual paper elements with aspirator
Compression	16.5:1
Rated RPM	2200
Starter volts	12
Oil capacity	16 qts 15.1 L

CaseIH Puma 195 Engine

Transmission

Transmission options
17-speed full power shift
18-speed full power shift
19-speed full power shift
continuously variable transmission (CVT)

Transmission — 17 forward and 6 reverse full power shift

Type	full power shift
Gears	17 forward and 6 reverse
The 17-speed powershift transmission was standard on 2WD models.

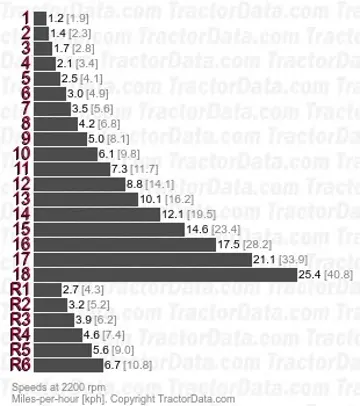

Transmission — 18 forward and 6 reverse full power shift

Type	full power shift
Gears	18 forward and 6 reverse
On 4WD models the 18-speed transmission was standard equipment.

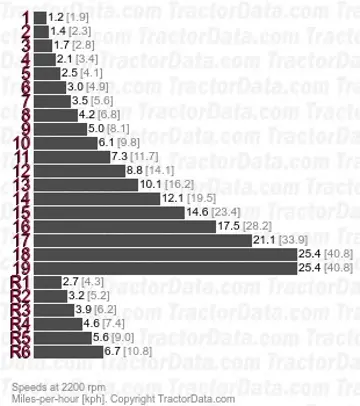

Transmission — EconoGear

Transmission	EconoGear
Type	full power shift
Gears	19 forward and 6 reverse
Clutch	electro-hydraulic wet disc
The 19-speed EconoGear transmission provides a transport gear that operates at reduced RPM.

Transmission — infinite forward and reverse continuously variable transmission (CVT)

Type	continuously variable transmission (CVT)
Gears	infinite forward and reverse
CVT first available on the Puma 195 starting in late 2008

Dimensions

CaseIH Puma 195 Tires
Standard tires (ag)	Front: 16.9R30. Rear: 20.8R42

Dimensions
Wheelbase	113.6 inches 288 cm
Height (cab)	119.7 inches 304 cm
Height (exhaust)	122.6 inches 311 cm
Shipping weight	15,708 lbs (4WD) 7125 kg
Operating weight	17,635 lbs (4WD) 7999 kg
Rear axle	4.125 by 112 inches 104 by 2844 mm
Rear axle	4.125 by 98 inches 104 by 2489 mm (optional)
Rear axle	4.125 by 119 inches 104 by 3022 mm (optional)

Tests

OCED Tractor Test 2425
Diesel 19-speed 4WD May 2007 - June 2007, Link: OCED Tractor Test 2425 file
PTO performance
Max power	189.4 hp 141.2 kW
Fuel use	10.9 gal/hour 41.3 l/hour
Power at rated engine speed	171.2 hp 127.7 kW
Fuel use	10.9 gal/hour 41.3 l/hour
Power at rated PTO speed	178.4 hp 133.0 kW
Fuel use	11.0 gal/hour 41.6 l/hour
