Deutz-Fahr Agrotron 165.7
The Deutz-Fahr Agrotron 165.7 is a tractor produced by Deutz Fahr. It is equipped with a 436.1 ci 7.1 L engine. The rated power output is 177 hp 132.0 kW. Transmission: 40 forward and reverse. Operating weight: 13162 lbs 5970 kg.
Engine Power
177 hp
132.0 kW
Fuel & Capacities
80.6 gal
305.1 L
Transmission
40 forward and reverse
Operating Weight
13162 lbs
5970 kg
Deutz Fahr Deutz-Fahr Agrotron 165.7 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2005 - 2007
Agrotron Series |
|---|---|
2005 - 2007 | |
Agrotron Series | |
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Deutz-Fahr Agrotron 165.7 Engine | |
|---|---|
Deutz 7.1L 6-cyl diesel | |
Fuel tank | 80.6 gal
305.1 L |
Engine details ...  | |
Deutz-Fahr Agrotron 165.7 Power | |
|---|---|
Engine (gross) | 177 hp
132.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
closed center OptOptional | |
Pressure | 2901 psi
200.0 bar |
Valves | 2 to 4 |
Pump flow | 21.9 gpm (open)
82.9 lpm |
31.7 gpm (closed)
120.0 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Rear lift | 20283 lbs
9200 kg |
Front Hitch | II OptOptional |
Front lift | 8818 lbs
3999 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2200 |
540E@1600 | |
1000@2200 | |
1000E@1600 | |
Front PTO | independent OptOptional |
Clutch | 1000:2130 |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 108.9 inches
276 cm |
Weight | 13162 lbs
5970 kg |
Front tire | 16.9R28 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 95 |
Battery volts | 12 |
Battery AH | 143 |
170 OptOptional | |
Engine
Engine Detail — 436.1 ci / 7.1 L Diesel
Manufacturer | Deutz BF6M1013EC |
Configuration | turbocharged intercooled diesel, 6-cylinder, liquid-cooled |
Displacement | 436.1 ci
7.1 L |
Bore/Stroke | 4.25x5.12 inches
108 x 130 mm |
Rated Power (gross) | 177 hp
132.0 kW |
Rated RPM | 2350 |
Torque | 486.8 lb-ft
660.1 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 22.2 qts
21.0 L |
Transmission
Transmission options | |
|---|---|
24-speed four-speed power shift | |
40-speed creeper |

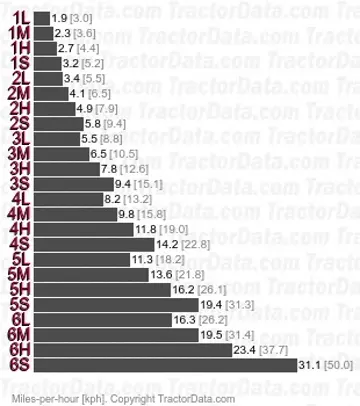

Transmission — 24 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 24 forward and reverse |
With 20.8R38 rear tires. | |
 | |

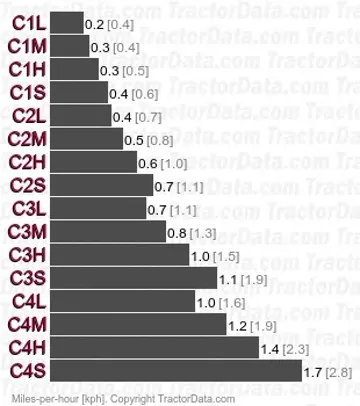

Transmission | |
Type | creeper |
Gears | 40 forward and reverse |
 | |
Dimensions
Deutz-Fahr Agrotron 165.7 Tires | |
|---|---|
Standard tires (ag) | Front: 16.9R28. Rear: 20.8R38 |
Dimensions | |
|---|---|
Wheelbase | 108.9 inches
276 cm |
Length | 187.3 inches
475 cm |
Height (cab) | 118 inches
299 cm |
Weight | 13162 lbs
5970 kg |
Max weight | 22046 lbs
10000 kg |
Front tread | 74.8 inches
189 cm |
Rear tread | 75 inches
190 cm |
