CaseIH Steiger 435

The CaseIH Steiger 435 is a tractor produced by Caseih. It is equipped with a 786 ci 12.9 L engine. The rated power output is 435 hp 324.4 kW. Transmission: 24 forward and 6 reverse. Operating weight: 37900 to 41605 pounds.

Overview

	2008 - 2010 Four-wheel Drive (4WD) tractor
2008 - 2010
Four-wheel Drive (4WD) tractor

Production
Manufacturer	CaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price	$268,480 (2010)

Variants
435 Quadtrac	articulted crawler

CaseIH Steiger 435 Engine
Iveco 12.9L 6-cyl diesel
Fuel tank	300 gal 1135.5 L
Engine details ...

CaseIH Steiger 435 Power
Engine	435 hp 324.4 kW
PTO (claimed)	379 hp 282.6 kW
Drawbar (tested)	351.28 hp 261.9 kW
PTO (tested)	438.97 hp 327.3 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Integrated hydraulic wet disc brakes
Cab standard with heat and A/C, optional Luxury cab

Hydraulics
Type	parallel pressure flow compensated (PFC)
Valves	4 to 5
	4 to 9 (without 3-point hitch)
Total flow	40 gpm 151.4 lpm
	55 gpm (High-Flow) 208.2 lpm
	90 gpm (Twin-Flow) 340.7 lpm

Tractor hitch
Rear Type	4N
Rear lift (at 24"/610mm)	19,620 lbs 8899 kg

Power Take-off (PTO)
Rear PTO	independent optional
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	154 inches 391 cm
Weight	37900 to 41605 pounds
Front tire	710/70R42
Rear tire	710/70R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	175
Batteries	2
Battery CCA	1000
Battery volts	12

References
Steiger Series Tractors published in 2007, by CaseIH

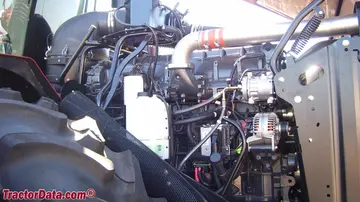

Engine

Engine Detail — 786 ci / 12.9 L Diesel

Manufacturer	Iveco
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	786 ci 12.9 L
Bore/Stroke	5.314x5.906 inches 135 x 150 mm
Emissions	Tier 3
Power	435 hp 324.4 kW
Maximum Power	478 hp 356.4 kW
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2000
Starter volts	24
Oil capacity	32.8 qts 31.0 L

CaseIH Steiger 435 Engine

Transmission

Transmission options
16-speed full power shift
24-speed

Transmission — 16 forward and 2 reverse full power shift

Type	full power shift
Gears	16 forward and 2 reverse

Transmission — 24 forward and 6 reverse

Gears

24 forward and 6 reverse

Dimensions

CaseIH Steiger 435 Tires
Ag front	710/70R42
Ag rear	710/70R42

Dimensions
Wheelbase	154 inches 391 cm
Width	44 inches (frame) 111 cm
Front axle	4.5x120 inch diameter 114 mm
Rear axle	4.5x120 inch diameter 114 mm

CaseIH Steiger 435 Weight
Shipping	37,900 lbs 17191 kg
Operating	41,605 lbs (480/80R46 triples) 18872 kg
Max capacity	51,600 lbs 23405 kg

Tests

OCED Tractor Test 1909
Diesel 16-speed crawler September 25 - October 12, 2007 Link: OCED Tractor Test 1909 file
PTO performance
Max power	438.97 hp 327.3 kW
Fuel use	24.5 gal/hour 92.7 l/hour
Power at rated engine speed	384.59 hp 286.8 kW
Fuel use	22.5 gal/hour 85.2 l/hour
Drawbar performance
Max power	351.28 hp 261.9 kW
Fuel use	22.1 gal/hour 83.6 l/hour
Gear 6 used for power test.
Max pull	36,669 lbs 16633 kg
Gear 2 used for pull test.
