CaseIH Steiger 595
The CaseIH Steiger 595 is a tractor produced by Caseih. It is equipped with a 787 ci 12.9 L engine. The rated power output is 586.9 hp 437.7 kW. Transmission: PowerDrive. Operating weight: 50328 lbs 22828 kg.
Engine Power
586.9 hp
437.7 kW
Fuel & Capacities
455 gal
1722.2 L
Transmission
PowerDrive
Operating Weight
50328 lbs
22828 kg
Caseih Steiger 595 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2024 -
Steiger 4WD SeriesFour-wheel Drive (4WD) tractor |
|---|---|
2024 - | |
Steiger 4WD Series | |
Four-wheel Drive (4WD) tractor | |
Production | |
|---|---|
Manufacturer | CaseIH (a part of CNH) |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
CaseIH Steiger 595 Engine | |
|---|---|
FPT 12.9L 6-cyl diesel | |
Fuel tank | 455 gal
1722.2 L |
Exhaust fluid (DEF) | 66 gal
249.8 L |
Engine details ...  | |
CaseIH Steiger 595 Transmission | |
|---|---|
17-speed full power shift | |
Transmission details ...  |
CaseIH Steiger 595 Power | |
|---|---|
Engine (gross) | 586.9 hp
437.7 kW |
Engine (max) | 647 hp
482.5 kW |
PTO (claimed) | 529.6 hp
394.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Differential lock | automatic front and rear |
Articulated power steering | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | closed center |
Valves | 4 to 8 |
Pump flow | 42 gpm
159.0 lpm |
57 gpmOptOptional
215.7 lpm | |
113 gpmOptOptional
427.7 lpm | |
SCV flow | 35 gpm
132.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | IVN |
Rear lift (at 24"/610mm) | 22750 lbs
10319 kg |
Drawbar | Cat 4 |
Cat 5 OptOptional | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.75) |
Dimensions & Tires | |
|---|---|
Wheelbase | 154 inches
391 cm |
Weight | 50328 lbs
22828 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 240 |
330 OptOptional | |
Batteries | 3 |
Battery CCA | 950 |
Battery volts | 12 |
References | |
|---|---|
 | |
TAFS Connect Steiger published in 2024, by New Holland |
Engine
Engine Detail — 787 ci / 12.9 L Diesel
Manufacturer | FPT Cursor 13 |
Configuration | turbocharged diesel, 6-cylinder 24-valve, liquid-cooled |
Displacement | 787 ci
12.9 L |
Bore/Stroke | 5.31x5.91 inches
135 x 150 mm |
Emissions | Tier IV |
Rated Power (gross) | 586.9 hp
437.7 kW |
Maximum Power (gross) | 647 hp
482.5 kW |
Rated RPM | 2100 |
Starter | electric |
Starter volts | 12 |
CaseIH Steiger 595 Engine | |
|---|---|
 |
Transmission

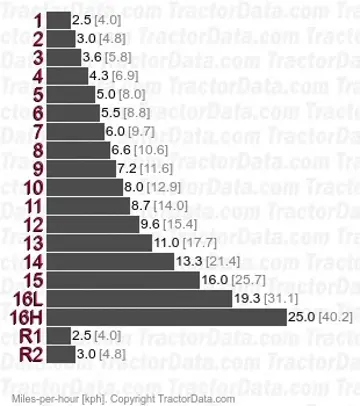

Transmission — PowerDrive
Transmission | PowerDrive |
Type | full power shift |
Gears | 17 forward and 2 reverse |
 | |
CaseIH Steiger 595 Transmission | |
|---|---|
 |
Dimensions
CaseIH Steiger 595 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 154 inches
391 cm |
Front axle | Bar: 5.5 by 120 inches
139 by 3048 mm |
Bar rear axle | 5.5 by 120 inches
139 by 3048 mm |
CaseIH Steiger 595 Weight | |
|---|---|
Shipping | 50328 lbs
22828 kg |
Max capacity | 67000 lbs
30391 kg |
Max Drawbar | 6000 lbs (Cat 4)
2721 kg |
11000 lbs (Cat 4)OptOptional
4989 kg | |
15000 lbs (Cat 5)
6804 kg | |
