John Deere 9630

The John Deere 9630 is a tractor produced by John Deere. It is equipped with a 826.7 ci 13.5 L engine. The rated power output is 530 hp 395.2 kW. Transmission: John Deere PowerShift. Operating weight: 37747 to 39465 pounds.

Overview

	2007 - 2011 9030 SeriesFour-wheel Drive (4WD) tractor
2007 - 2011
9030 Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA

Variants
9630	wheeled
9630T	crawler

John Deere 9630 Engine
John Deere 13.5L 6-cyl diesel
Engine details ...

John Deere 9630 Transmission
18-speed full power shift
Transmission details ...

John Deere 9630 Power
Engine	530 hp 395.2 kW
Drawbar (tested)	427.14 hp 318.5 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	hydraulic differential lock standard
Steering	hydrostatic power
Hydraulic wet discs brakes
Trailer brakes	hydraulic optional
CommandView Cab standard with air-conditioning. Optional automatic climate control and leather trim.

Capacity
Fuel	350 gal 1324.8 L
Hydraulic system	27 gal 102.2 L
	28 gal (3-point) 106.0 L
	20 gal (high-flow) 75.7 L
	31 gal (high-flow and 3-point) 117.3 L

Hydraulics
Type	closed-center pressure and flow compensating
Capacity	27 gal 102.2 L
	28 gal (3-point) 106.0 L
	20 gal (high-flow) 75.7 L
	31 gal (high-flow and 3-point) 117.3 L
Pressure	2900 psi 200.0 bar
Valves	4 to 6
SCV flow	30 gpm 113.6 lpm
Total flow	48 gpm 181.7 lpm
	78 gpm (High-Flow) 295.2 lpm

Tractor hitch
Rear Type	4N/3
	4N/4
Rear lift (at 24"/610mm)	15,300 lbs 6940 kg
Drawbar	Catergory 5 standard with secondary chain support.

Dimensions & Tires
Wheelbase	137.8 inches 350 cm
Weight	37747 to 39465 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	3
Battery CCA	925
Battery volts	12

References
New 9030 Series Tractors published in 2007, by John Deere
9230, 9330, 9430, 9530 and 9630 Tractors (OMAR283034) published in 2009
9230, 9330, 9430, 9530 and 9630 Tractors (OMRE325893) published in 2011

Engine

Engine Detail — 826.7 ci / 13.5 L Diesel

Manufacturer	John Deere
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement	826.7 ci 13.5 L
Bore/Stroke	5.197x6.496 inches 132 x 165 mm
Emissions	Tier III
Power	530 hp 395.2 kW
Air cleaner	aspirator and dual paper elemnts
Compression	16.0:1
Rated RPM	2100
Starter volts	12
Coolant capacity	70 qts 66.2 L
Oil capacity	63.4 qts 60.0 L

John Deere 9630 Engine

Transmission

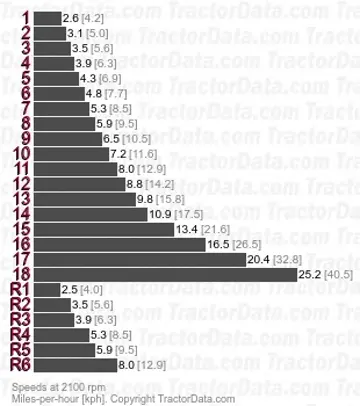

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electronic wet disc
With Group 48 tires.

Dimensions

John Deere 9630 Tires

Dimensions
Wheelbase	137.8 inches 350 cm
Length	270 inches 685 cm
	285 inches (with 3-point) 723 cm
Width	118.6 inches 301 cm
Hinge pin Ground clearance	20.5 inches 52 cm
Clearance (rear axle)	30.8 inches 78 cm
Rear axle	4.724 by 120 inches 119 by 3048 mm

John Deere 9630 Weight
Shipping	37747 lbs 17122 kg
Operating	39465 lbs*Weight with 480/80R46 triples. 17901 kg
Ballasted	54165 lbs 24569 kg

John Deere 9630 Height
Hood	107 inches 271 cm
Cab	142 inches 360 cm
Exhaust	156 inches 396 cm

Tests

OCED Tractor Test 1926
Diesel 18-speed 4WD November 4 - 14, 2008 Link: OCED Tractor Test 1926 file
Drawbar performance
Max power	427.14 hp 318.5 kW
Fuel use	27.8 gal/hour 105.2 l/hour
Gear 8 used for power test.
Max pull	53,666 lbs 24342 kg
Gear 1 used for pull test.
