CaseIH Vestrum 110

The CaseIH Vestrum 110 is a tractor produced by Caseih. It is equipped with a 273.7 ci 4.5 L engine. The rated power output is 108.5 hp 80.9 kW. Transmission: ActiveDrive 8. Operating weight: 12900 lbs 5851 kg.

Overview

	2020 - Vestrum SeriesUtility tractor
2020 -
Vestrum Series
Utility tractor

Production
Manufacturer	CaseIH (a part of CNH)
Utility tractor

Variants
T5.120	similar New Holland model

CaseIH Vestrum 110 Engine
FPT 4.5L 4-cyl diesel
Fuel tank	47.5 gal 179.8 L
Exhaust fluid (DEF)	5 gal 18.9 L
Engine details ...

CaseIH Vestrum 110 Power
Engine (gross)	108.5 hp 80.9 kW
Engine (max)	118.4 hp 88.3 kW
PTO (claimed)	88 hp 65.6 kW

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center load-sensing
Pressure	2900 psi 200.0 bar
Rear valves	4 OptOptional
Mid valves	3 OptOptional
Pump flow	29.1 gpm 110.1 lpm

Tractor hitch
Rear Type	II
	IIIN OptOptional
Control	electronic lower-link draft sensing
Rear lift (at 24"/610mm)	9259 lbs 4199 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1969
	540E@1546
	1000@1893
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)

Dimensions & Tires
Wheelbase	98 inches 248 cm
Weight	12900 lbs 5851 kg
Front tire	380/85R24
Rear tire	460/85R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Battery volts	12

References
Vestrum published in 2023, by CaseIH

Engine

Engine Detail — 273.7 ci / 4.5 L Diesel

Manufacturer	FPT
Configuration	turbocharged diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	273.7 ci 4.5 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Tier IV
Emission control	selective catalytic reduction
Rated Power (gross)	108.5 hp 80.9 kW
Maximum Power (gross)	118.4 hp 88.3 kW
Fuel system	electronic high-pressure common-rail direct injection
Rated RPM	2200
Torque	406.4 lb-ft 551.1 Nm
Torque RPM	1300
Starter	electric
Starter volts	12

Transmission

Transmission options
continuously-variable transmission
24-speed 8-speed power shift

Transmission — CVXDrive

Transmission	CVXDrive
Type	continuously-variable transmission
Gears	infinite forward and reverse (2-range)

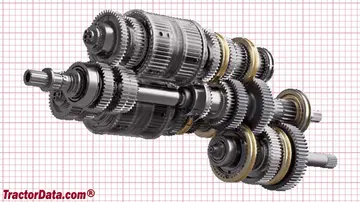

CaseIH Vestrum 110 Transmission

Transmission — ActiveDrive 8

Transmission	ActiveDrive 8
Type	8-speed power shift
Gears	24 forward and reverse

CaseIH Vestrum 110 Transmission

Dimensions

CaseIH Vestrum 110 Tires
Standard tires (ag)	Front: 380/85R24. Rear: 460/85R34
Optional tires (ag)	Front: 440/65R28. Rear: 540/65R38

Dimensions
Wheelbase	98 inches 248 cm
Length	188.4 inches 478 cm
Width	90 inches 228 cm
Height (cab)	111.6 inches 283 cm
Weight	12900 lbs 5851 kg
Max weight	19400 lbs 8799 kg
Flange rear axle

Photos

CaseIH Vestrum 110 tractor photo
