Century 3035

The Century 3035 is a tractor produced by Century. It is equipped with a 110 ci 1.8 L engine. The listed engine power is Diesel (net): 35 hp / 26.1 kW; Diesel (gross): 37 hp / 27.6 kW. Transmission: 12 forward and reverse. Operating weight: 3770 lbs 1710 kg.

Overview

	2002 - 2004 Compact Utility tractorKukje built Compact Utility tractor Kukje built

Production
Distributor	Century
Manufacturer	Kukje
Compact Utility tractor
Built in Yangsu-ri, South Korea

Century 3035 Engine
Kukje 1.8L 3-cyl diesel
Engine details ...

Century 3035 Transmission
12-speed
Transmission details ...

Century 3035 Power
Engine (gross)	37 hp 27.6 kW
Engine (net)	35 hp 26.1 kW
PTO (claimed)	31 hp 23.1 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Valves	1 or 2

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift (at ends)	2580 lbs 1170 kg

Power Take-off (PTO)
Rear PTO	live *Two-stage foot clutch.
Clutch	mechanical dry disc
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	69 inches 175 cm
Weight	3770 lbs 1710 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 110 ci / 1.8 L Diesel

Manufacturer	Kukje
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	110 ci 1.8 L
Power (net)	35 hp 26.1 kW
Power (gross)	37 hp 27.6 kW
Fuel system	indirect injection
Pre-heating	glow plugs
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — 12 forward and reverse

Gears

12 forward and reverse

Dimensions

Century 3035 Tires

Dimensions
Wheelbase	69 inches 175 cm
Length	124 inches 314 cm
Width	61 inches 154 cm
Height (ROPS)	96 inches 243 cm
Shipping weight	3770 lbs 1710 kg
Ground clearance	13 inches 33 cm

Attachments

Attachment overview
Century C-40 loader
Century C-50 loader

Photos

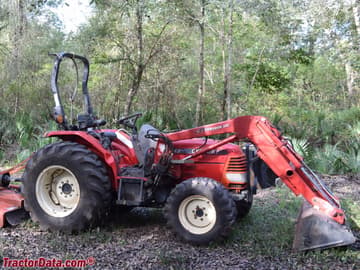

Century 3035
