Century C29

The Century C29 is a tractor produced by Century. It is equipped with a 89 ci 1.5 L engine. The rated power output is 29 hp 21.6 kW. Transmission: 12 forward and reverse. Operating weight: 3,640 lbs 1651 kg.

Overview

	2005 - 2006 Compact Utility tractorKukje built
2005 - 2006
Compact Utility tractor
Kukje built

2005 - 2006
Compact Utility tractor
Kukje built

Production
Distributor	Century
Manufacturer	Kukje
Compact Utility tractor
Built in Yangsu-ri, South Korea

Century C29 Engine
Kukje 1.5L 3-cyl diesel
Engine details ...

Century C29 Transmission
12-speed partially synchronized
Transmission details ...

Century C29 Power
Engine	29 hp 21.6 kW
PTO (claimed)	25 hp 18.6 kW

Mechanical
Four-wheel drive
Differential lock	foot pedal
Steering	hydrostatic power
Differential wet disc brakes
ROPS.

Capacity
Fuel	10.6 gal 40.1 L
Hydraulic system	9.25 gal 35.0 L
Front axle	7.4 qts 7.0 L

Hydraulics
Type	open center
Capacity	9.25 gal 35.0 L
Valves	1 to 3
Pump flow	8.9 gpm 33.7 lpm
Total flow	13.2 gpm 50.0 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2,580 lbs 1170 kg

Power Take-off (PTO)
Rear PTO	live (2-stage clutch)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	65 inches 165 cm
Weight	3,640 lbs 1651 kg
Front tire	7-16
Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	45
Battery volts	12

References
Operator's Manual C29. C35. C38L, C42L and C47L (948898) published in 2004

Engine

	2005 - 2006 Compact Utility tractorKukje built
2005 - 2006
Compact Utility tractor
Kukje built

2005 - 2006
Compact Utility tractor
Kukje built

Engine Detail — 89 ci / 1.5 L Diesel

Manufacturer	Kukje
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	89 ci 1.5 L
Bore/Stroke	3.307x3.465 inches 84 x 88 mm
Power	29 hp 21.6 kW
Air cleaner	dry element
Compression	21.2:1
Rated RPM	2600
Starter volts	12
Coolant capacity	9.8 qts 9.3 L
Oil capacity	6.4 qts 6.1 L

Transmission

	2005 - 2006 Compact Utility tractorKukje built
2005 - 2006
Compact Utility tractor
Kukje built

2005 - 2006
Compact Utility tractor
Kukje built

Transmission — 12 forward and reverse partially synchronized

Type	partially synchronized
Gears	12 forward and reverse
Oil capacity	37 qts 35.0 L
Oil type	10oF [-12oC]↑ : JDM J20C 70o↔-40oF [21o↔-40oC] : JDM J20D	10oF [-12oC]↑	: JDM J20C	70o↔-40oF [21o↔-40oC]	: JDM J20D
10oF [-12oC]↑	: JDM J20C
70o↔-40oF [21o↔-40oC]	: JDM J20D

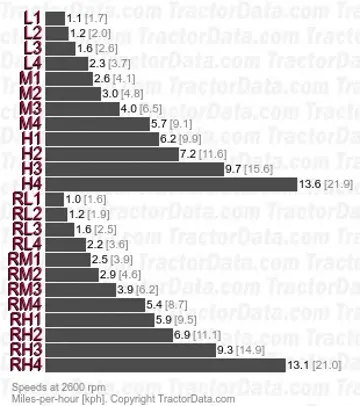

Four gears in three ranges with left-hand shuttle. Gear shift is synchronized with clutch. Tractor must be stopped to shift range and shuttle.
With 12.4-24 rear tires.

10oF [-12oC]↑	: JDM J20C
70o↔-40oF [21o↔-40oC]	: JDM J20D

Dimensions

	2005 - 2006 Compact Utility tractorKukje built
2005 - 2006
Compact Utility tractor
Kukje built

2005 - 2006
Compact Utility tractor
Kukje built

Century C29 Tires
Ag front	7-16
Ag rear	12.4-24
Lawn/turf front	27x8.50-15
Lawn/turf rear	41x14.00-20
Industrial front	27x8.50-15
Industrial rear	15x19.5
Industrial front	10-16.5
Industrial rear	420/70-24

Dimensions
Wheelbase	65 inches 165 cm
Length	120 inches 304 cm
Width	59 inches 149 cm
Height	95 inches 241 cm
Weight	3,640 lbs 1651 kg
Ground clearance	11.2 inches 28 cm
Front tread	47 inches 119 cm
Rear tread	45 to 59 inches 114 to 149 cm
