Century C38

The Century C38 is a tractor produced by Century. It is equipped with a 110 ci 1.8 L engine. The rated power output is 38 hp 28.3 kW. Transmission: 12 forward and reverse. Operating weight: 3,770 lbs 1710 kg.

Engine Power
38 hp 28.3 kW
Fuel & Capacities
11.1 gal 42.0 L
Transmission
12 forward and reverse
Operating Weight
3,770 lbs 1710 kg

Century C38 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

No photo available
2005 - 2006 Compact Utility tractorKukje built
2005 - 2006
Compact Utility tractor
Kukje built
2005 - 2006
Compact Utility tractor
Kukje built
Production
Distributor
Century
Manufacturer
Kukje
Compact Utility tractor
Built in Yangsu-ri, South Korea
Century C38 Engine
Kukje 1.8L 4-cyl diesel
Engine details ...
Century C38 Transmission
12-speed partially synchronized
Transmission details ...
Century C38 Power
Engine
38 hp 28.3 kW
PTO (claimed)
32 hp 23.9 kW
Mechanical
Four-wheel drive
Differential lock
foot pedal
Steering
hydrostatic power
Differential wet disc brakes
ROPS.
Capacity
Fuel
11.1 gal 42.0 L
Hydraulic system
9.25 gal 35.0 L
Front axle
7.4 qts 7.0 L
Hydraulics
Type
open center
Capacity
9.25 gal 35.0 L
Valves
1 to 3
Pump flow
8.9 gpm 33.7 lpm
Total flow
13.2 gpm 50.0 lpm
Tractor hitch
Rear Type
I
Rear lift (at ends)
2,580 lbs 1170 kg
Power Take-off (PTO)
Rear PTO
live (2-stage clutch)
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
69 inches 175 cm
Weight
3,770 lbs 1710 kg
Front tire
8-18
Rear tire
12.4-28
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
45
Battery volts
12
References
C38 references literature
Operator's Manual C29. C35. C38L, C42L and C47L (948898) published in 2004

Engine

No photo available
2005 - 2006 Compact Utility tractorKukje built
2005 - 2006
Compact Utility tractor
Kukje built
2005 - 2006
Compact Utility tractor
Kukje built

Engine Detail — 110 ci / 1.8 L Diesel

Manufacturer
Kukje
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
110 ci 1.8 L
Bore/Stroke
3.307x3.701 inches 84 x 94 mm
Power
38 hp 28.3 kW
Air cleaner
dry element
Compression
22.2:1
Rated RPM
2600
Starter volts
12
Coolant capacity
9.8 qts 9.3 L
Oil capacity
6.4 qts 6.1 L

Transmission

No photo available
2005 - 2006 Compact Utility tractorKukje built
2005 - 2006
Compact Utility tractor
Kukje built
2005 - 2006
Compact Utility tractor
Kukje built

Transmission — 12 forward and reverse partially synchronized

Type
partially synchronized
Gears
12 forward and reverse
Oil capacity
37 qts 35.0 L
Oil type
10oF [-12oC]↑ : JDM J20C 70o↔-40oF [21o↔-40oC] : JDM J20D
10oF [-12oC]↑
: JDM J20C
70o↔-40oF [21o↔-40oC]
: JDM J20D
10oF [-12oC]↑
: JDM J20C
70o↔-40oF [21o↔-40oC]
: JDM J20D
Four gears in three ranges with left-hand shuttle. Gear shift is synchronized with clutch. Tractor must be stopped to shift range and shuttle.
With 12.4-28 rear tires.

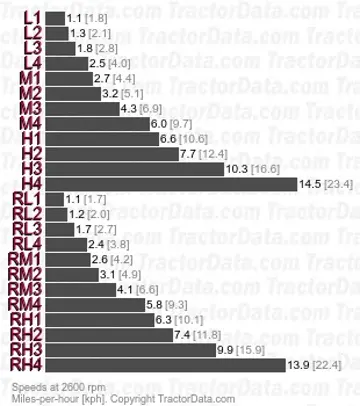

C38 partially synchronized speeds
10oF [-12oC]↑
: JDM J20C
70o↔-40oF [21o↔-40oC]
: JDM J20D

Dimensions

No photo available
2005 - 2006 Compact Utility tractorKukje built
2005 - 2006
Compact Utility tractor
Kukje built
2005 - 2006
Compact Utility tractor
Kukje built
Century C38 Tires
Ag front
8-18
Ag rear
12.4-28
Lawn/turf front
29x12.00-15
Lawn/turf rear
44x18.00-20
Industrial front
12-16.5
Industrial rear
17.5L-24
Dimensions
Wheelbase
69 inches 175 cm
Length
124 inches 314 cm
Width
61 inches 154 cm
Height
96 inches 243 cm
Weight
3,770 lbs 1710 kg
Ground clearance
13 inches 33 cm
Front tread
50 inches 127 cm
Rear tread
45 to 59 inches 114 to 149 cm
