Century 2035
The Century 2035 is a tractor produced by Century. It is equipped with a 107 ci 1.8 L engine. The listed engine power is Diesel (listed): 35.5 hp / 26.5 kW. Transmission: 12 forward and reverse. Operating weight: 3,700 lbs 1678 kg.
Engine Power
Diesel (listed): 35.5 hp / 26.5 kW
Fuel & Capacities
11.2 gal
42.4 L
Transmission
12 forward and reverse
Operating Weight
3,700 lbs
1678 kg
Overview
 | Utility tractorKukje built |
|---|---|
Utility tractor | |
Kukje built | |
Utility tractor | |
|---|---|
Kukje built |
Production | |
|---|---|
Distributor | Century |
Manufacturer | Kukje |
Utility tractor | |
Built in Yangsu-ri, South Korea | |
Century 2035 Engine | |
|---|---|
Mitsubishi 1.8L 4-cyl diesel | |
Engine details ...  |
Century 2035 Transmission | |
|---|---|
12-speed partially synchronized | |
Transmission details ...  |
Century 2035 Power | |
|---|---|
Engine | 35.5 hp
26.5 kW |
PTO (claimed) | 30.5 hp
22.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | foot pedal |
Steering | hydrostatic power |
Differential wet disc brakes | |
ROPS. | |
Capacity | |
|---|---|
Fuel | 11.2 gal
42.4 L |
Hydraulic system | 9.25 gal
35.0 L |
Front axle | 7 qts
6.6 L |
Hydraulics | |
|---|---|
Capacity | 9.25 gal
35.0 L |
Total flow | 8.2 gpm
31.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 2,580 lbs
1170 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live (two-stage clutch) |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 69 inches
175 cm |
Weight | 3,700 lbs
1678 kg |
Front tire | 8-18 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

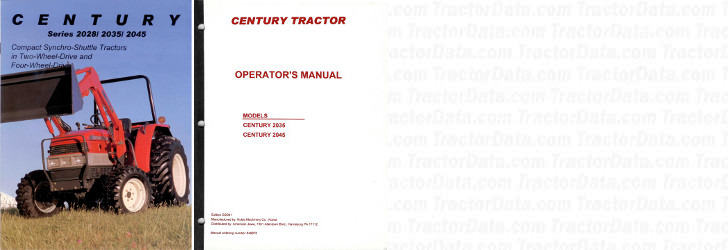

References | |
|---|---|
 | |
Series 2028 - 2035 - 2045 published by Century | |
Operator's Manual 2035 and 2045 (948870) published in 2001 |
Engine
| Utility tractorKukje built |
|---|---|
Utility tractor | |
Kukje built | |
Utility tractor | |
|---|---|
Kukje built |
Engine Detail — 107 ci / 1.8 L Diesel
Manufacturer | Mitsubishi S4L2 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 107 ci
1.8 L |
Bore/Stroke | 3.07x3.62 inches
78 x 92 mm |
Power | 35.5 hp
26.5 kW |
Air cleaner | dry cartridge |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 9.8 qts
9.3 L |
Oil capacity | 6 qts
5.7 L |
Transmission
| Utility tractorKukje built |
|---|---|
Utility tractor | |
Kukje built | |
Utility tractor | |
|---|---|
Kukje built |
Transmission — 12 forward and reverse partially synchronized
Type | partially synchronized | ||||
Gears | 12 forward and reverse | ||||
Clutch | mechanical dry disc | ||||
Oil capacity | 37 qts
35.0 L | ||||
Oil type | 10oF [-12oC]↑ : JDM J20C 70o↔-40oF [21o↔-40oC] : JDM J20D | 10oF [-12oC]↑ | : JDM J20C | 70o↔-40oF [21o↔-40oC] | : JDM J20D |
10oF [-12oC]↑ | : JDM J20C | ||||
70o↔-40oF [21o↔-40oC] | : JDM J20D | ||||
Four gears in three ranges with left-hand shuttle. Synchronized shift (using clutch) between gears. Tractor must be stopped to shift ranges or shuttle. | |||||
With 12.4-28 rear tires. | |||||
 | |||||
10oF [-12oC]↑ | : JDM J20C |
|---|---|
70o↔-40oF [21o↔-40oC] | : JDM J20D |
Dimensions
| Utility tractorKukje built |
|---|---|
Utility tractor | |
Kukje built | |
Utility tractor | |
|---|---|
Kukje built |
Century 2035 Tires | |
|---|---|
Ag front | 8-18 |
Ag rear | 12.4-28 |
Lawn/turf front | 29/12.50-15 |
Lawn/turf rear | 44/18.00-20 |
Industrial front | 10-16.5 |
Industrial rear | 420/70D-24 |
Industrial front | 12-16.5 |
Industrial rear | 17.5L-24 |
Dimensions | |
|---|---|
Wheelbase | 69 inches
175 cm |
Length | 127 inches
322 cm |
Width | 61 inches
154 cm |
Height (ROPS) | 88.7 inches
225 cm |
Weight | 3,700 lbs
1678 kg |
Ground clearance | 13 inches
33 cm |
Front tread | 50 to 60 inches
127 to 152 cm |
Rear tread | 45 to 59 inches
114 to 149 cm |
Attachments
| Utility tractorKukje built |
|---|---|
Utility tractor | |
Kukje built | |
Utility tractor | |
|---|---|
Kukje built |

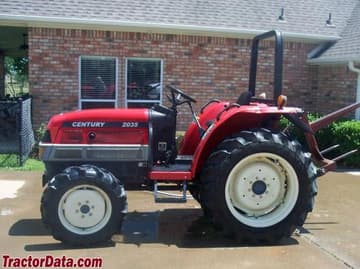

Photos
Century 2035
Recommended Implements & Sizing Guide
Engineering recommendations for Century 2035 based on its 35.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Century 2035.
Estimated Continuous Field Runtime: 6.1 hrs
Approximately 6.1 hours of continuous field operation at ~75% rated power on a full tank (11.2 gal / 42.4 L).
Estimated 75% Load Fuel Burn~1.8 gal/hr (7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Century 2035 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Century 2035.
Converted Equivalents:
Horsepower (HP)35.5 hp
Kilowatts (kW)26.5 kW
Metric Horsepower (PS / CV)36 PS
