Century C47
The Century C47 is a tractor produced by Century. It is equipped with a 139 ci 2.3 L engine. The listed engine power is Diesel (listed): 47 hp / 35.0 kW. Transmission: 12 forward and reverse. Operating weight: 3910 lbs 1773 kg.
Engine Power
Diesel (listed): 47 hp / 35.0 kW
Fuel & Capacities
11.1 gal
42.0 L
Transmission
12 forward and reverse
Operating Weight
3910 lbs
1773 kg
Overview
 | 2005 - 2006
Compact Utility tractorKukje built
Compact Utility tractor
Kukje built |
|---|
Production | |
|---|---|
Distributor | Century |
Manufacturer | Kukje |
Compact Utility tractor | |
Built in Yangsu-ri, South Korea | |
Century C47 Engine | |
|---|---|
Kukje 2.3L 4-cyl diesel | |
Engine details ...  |
Century C47 Transmission | |
|---|---|
12-speed partially synchronized | |
Transmission details ...  |
Century C47 Power | |
|---|---|
Engine | 47 hp
35.0 kW |
PTO (claimed) | 40 hp
29.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | foot pedal |
Power steering | |
Differential wet disc brakes | |
Two-post folding ROPS. | |
Capacity | |
|---|---|
Fuel | 11.1 gal
42.0 L |
Hydraulic system | 9.25 gal
35.0 L |
Front axle | 7.4 qts
7.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 9.25 gal
35.0 L |
Valves | 1 to 3 |
Pump flow | 8.9 gpm
33.7 lpm |
Total flow | 13.2 gpm
50.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 2580 lbs
1170 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live *2-stage clutch |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71 inches
180 cm |
Weight | 3910 lbs
1773 kg |
Front tire | 8-18 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 45 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual C29. C35. C38L, C42L and C47L (948898) published in 2004 |
Engine
Engine Detail — 139 ci / 2.3 L Diesel
Manufacturer | Kukje |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 139 ci
2.3 L |
Bore/Stroke | 3.465x3.701 inches
88 x 94 mm |
Power | 47 hp
35.0 kW |
Air cleaner | dry cartridge |
Compression | 21.3:1 |
Rated RPM | 2600 |
Starter volts | 12 |
Coolant capacity | 9.8 qts
9.3 L |
Oil capacity | 7 qts
6.6 L |
Transmission
Transmission — 12 forward and reverse partially synchronized
Type | partially synchronized | ||||
Gears | 12 forward and reverse | ||||
Oil capacity | 37 qts
35.0 L | ||||
Oil type | 10oF [-12oC]↑ : JDM J20C 70o↔-40oF [21o↔-40oC] : JDM J20D | 10oF [-12oC]↑ | : JDM J20C | 70o↔-40oF [21o↔-40oC] | : JDM J20D |
10oF [-12oC]↑ | : JDM J20C | ||||
70o↔-40oF [21o↔-40oC] | : JDM J20D | ||||
Four gears in three ranges with left-hand shuttle. Gear shift is synchronized with clutch. Tractor must be stopped to shift range and shuttle. | |||||
With 12.4-28 rear tires. | |||||
 | |||||
10oF [-12oC]↑ | : JDM J20C |
|---|---|
70o↔-40oF [21o↔-40oC] | : JDM J20D |
Dimensions
Century C47 Tires | |
|---|---|
Ag front | 8-18 |
Ag rear | 12.4-28 |
Lawn/turf front | 29x12.00-15 |
Lawn/turf rear | 44x18.00-20 |
Industrial front | 12-16.5 |
Industrial rear | 17.5L-24 |
Dimensions | |
|---|---|
Wheelbase | 71 inches
180 cm |
Length | 124 inches
314 cm |
Width | 61 inches
154 cm |
Height | 96 inches
243 cm |
Weight | 3910 lbs
1773 kg |
Ground clearance | 12.2 inches
30 cm |
Front tread | 50 inches
127 cm |
Rear tread | 45 to 59 inches
114 to 149 cm |
Photos

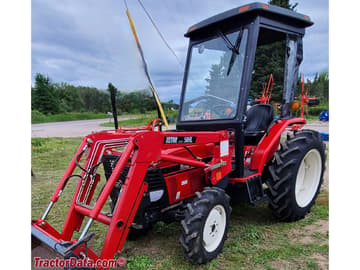

Zetor C47L with front-end loader.
Zetor C47L, left side.
Recommended Implements & Sizing Guide
Engineering recommendations for Century C47 based on its 47 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Century C47.
Estimated Continuous Field Runtime: 4.5 hrs
Approximately 4.5 hours of continuous field operation at ~75% rated power on a full tank (11.1 gal / 42 L).
Estimated 75% Load Fuel Burn~2.4 gal/hr (9.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Century C47 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Century C47.
Converted Equivalents:
Horsepower (HP)47 hp
Kilowatts (kW)35 kW
Metric Horsepower (PS / CV)47.7 PS
Direct Competitor Comparison
Compare Century C47 against same-era industry alternatives in the same horsepower class.
Current Model
Century
Century C47
Engine Power:Diesel (listed): 47 hp / 35.0 kW
★ Baseline Reference
