Chamberlain 306

The Chamberlain 306 is a tractor produced by Chamberlain. It is equipped with a 306 ci 5.0 L engine. The rated power output is 70 hp 52.2 kW. Transmission: 9 forward and 3 reverse. Operating weight: 7800 lbs 3538 kg.

Overview

	1966 - 1969 Champion SeriesStandard-tread tractor
1966 - 1969
Champion Series
Standard-tread tractor

Production
Manufacturer	Chamberlain
Standard-tread tractor
Built in Welshpool, Australia

Chamberlain 306 Engine
Perkins 5.0L 6-cyl diesel
Fuel tank	28.8 gal 109.0 L
Engine details ...

Chamberlain 306 Transmission
9-speed gear
Transmission details ...

Chamberlain 306 Power
Engine	70 hp 52.2 kW
PTO (claimed)	58 hp 43.3 kW

Mechanical
Two-wheel drive
Manual steering
Open operator station. Cab optional.

Tractor hitch
Rear Type	II (optional)

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540 (1.375)
Engine RPM	540@1600

Dimensions & Tires
Weight	7800 lbs 3538 kg
Front tire	7.50x18
Rear tire	18.4x30
Full dimensions and tires ...

Belt Pulley
Diameter	10.25 inches 26 cm
Width	6.25 inches 15 cm
RPM	1600
Speed	3100 ft/min 944.88 meters/min

Engine

Engine Detail — 306 ci / 5.0 L Diesel

Manufacturer	Perkins 6.306
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	306 ci 5.0 L
Bore/Stroke	3.60x5.00 inches 91 x 127 mm
Power	70 hp 52.2 kW
Fuel system	direct injection
Pre-heating	thermostart
Rated RPM	2000
Starter	electric
Starter volts	12

Transmission

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	355.6mm dry disc
Three gears (1-3), plus reverse (R) in three ranges (low, intermediate, high).
With 18.4x30 rear tires.

Dimensions

Chamberlain 306 Tires
Ag front	7.50x18
Ag rear	18.4x30

Dimensions
Weight	7800 lbs 3538 kg
Clearance (front axle)	17.5 inches 44 cm

Photos

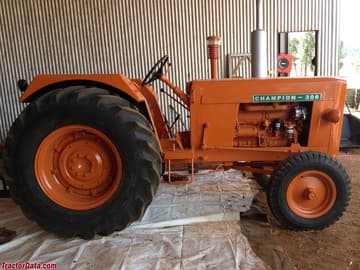

Chamberlain Champion 306, right side.

Chamberlain Champion 306, left side.
