Chamberlain 4480

The Chamberlain 4480 is a tractor produced by Chamberlain. It is equipped with a 359 ci 5.9 L engine. The rated power output is 124 hp 92.5 kW. Transmission: Hi-Lo. Operating weight: 13272 lbs 6020 kg.

Overview

	1975 - 1985 80 Series
1975 - 1985
80 Series

Production
Manufacturer	Chamberlain (a part of John Deere)
Built in Welshpool, Australia
Total built	2,271

Variants
4480A	built 1975-1983
4480B	built 1983-1985

Chamberlain 4480 Engine
John Deere 5.9L 6-cyl diesel
Fuel tank	72.1 gal 272.9 L
Engine details ...

Chamberlain 4480 Transmission
12-speed two-speed power shift
Transmission details ...

Chamberlain 4480 Power
Engine (gross)	131 hp 97.7 kW
Engine (net)	124 hp 92.5 kW
PTO (claimed)	119 hp 88.7 kW

Mechanical
Two-wheel drive
Power steering
Sedan cab with heat and air-conditioning.

Hydraulics
Type	open center
Valves	2
Pump flow	13.8 gpm 52.2 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	live

Dimensions & Tires
Weight	13272 lbs 6020 kg
Front tire	11.00-16
Rear tire	24.5-32
Full dimensions and tires ...

References
John Deere Tractors Worldwide by Don Macmillan
Technical Annual published in 1977, by Power Farming
Technical Annual published in 1981, by Power Farming
Technical Annual published in 1983, by Power Farming

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	John Deere 6-359T
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (net)	124 hp 92.5 kW
Power (gross)	131 hp 97.7 kW
Compression	16.8:1
Rated RPM	2500
Torque	299 lb-ft 405.4 Nm
Torque RPM	1350
Starter type	electric

Transmission

Transmission — Hi-Lo

Transmission	Hi-Lo
Type	two-speed power shift
Gears	12 forward and 4 reverse

Dimensions

Chamberlain 4480 Tires
Ag front	11.00-16
Ag rear	24.5-32
Ag rear	23.1-32

Dimensions
Length	177.4 inches 450 cm
Width	96.5 inches 245 cm
Height (exhaust)	112 inches 284 cm
Weight	13272 lbs 6020 kg

Photos

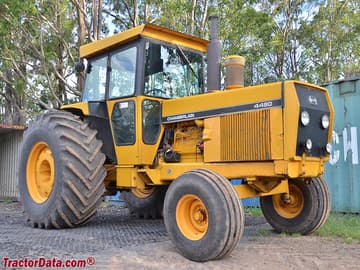

Chamberlain 4480
