Claas Challenger 55
The Claas Challenger 55 is a tractor produced by Claas. It is equipped with a 442 ci 7.2 L engine. Transmission: 32 forward and 18 reverse. Drive type: crawler. Operating weight: 26000 lbs 11793 kg.
Drive & Traction
crawler
Fuel & Capacities
125 gal
473.1 L
Transmission
32 forward and 18 reverse
Operating Weight
26000 lbs
11793 kg
Claas Challenger 55 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | Agricultural Crawler tractor | Agricultural Crawler tractor |
|---|
Note: the Claas model Challenger 55 is the same as the Challenger 55. The following data is from the 55 listing. |
|---|
Production | |
|---|---|
Manufacturer | Claas |
Agricultural Crawler tractor | |
Original price was $133,000 in 1998 | |
Claas 55 Engine | |
|---|---|
Caterpillar 7.2L 6-cyl diesel | |
Fuel tank | 125 gal
473.1 L |
Engine details ...  | |
Claas 55 Power | |
|---|---|
Drawbar (claimed) | 191 hp
142.4 kW |
PTO (claimed) | 225 hp
167.8 kW |
Mechanical | |
|---|---|
Drive | crawler |
Steering | differential power |
Wet disc brakes | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | variable-displacement load-sensing pressure-compensated |
Pressure | 2750 psi
189.6 bar |
Valves | 3 or 4 |
Pump flow | 31.2 gpm
118.1 lpm |
55 gpm*Optional.
208.2 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | draft control |
Rear lift | 12500 lbs
5670 kg |
15000 lbs*Optional.
6804 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 1000 (1.75) |
Engine RPM | 1000@1900 |
Dimensions & Tracks | |
|---|---|
Wheelbase | 86 inches
218 cm |
Weight | 26000 lbs
11793 kg |
16-inch tracks | |
Full dimensions and tracks ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Engine
Note: the Claas model Challenger 55 is the same as the Challenger 55. The following data is from the 55 listing. |
|---|
Engine Detail — 442 ci / 7.2 L Diesel
Manufacturer | Caterpillar 3126 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 442 ci
7.2 L |
Bore/Stroke | 4.33x5.00 inches
110 x 127 mm |
Rated RPM | 2100 |
Starter volts | 12 |
Coolant capacity | 34.4 qts
32.6 L |
Transmission
Note: the Claas model Challenger 55 is the same as the Challenger 55. The following data is from the 55 listing. |
|---|
Transmission options | |
|---|---|
16-speed full power shift | |
32-speed creeper |
Transmission — 16 forward and 9 reverse full power shift
Type | full power shift |
Gears | 16 forward and 9 reverse |
Transmission | |
Type | creeper |
Gears | 32 forward and 18 reverse |
Dimensions
Note: the Claas model Challenger 55 is the same as the Challenger 55. The following data is from the 55 listing. |
|---|
Claas 55 Tracks | |
|---|---|
Width | 16 inches
40 cm |
Width | 18 inches
45 cm |
Width | 20 inches
50 cm |
Width | 25 inches
63 cm |
Width | 32 inches
81 cm |
Dimensions | |
|---|---|
Wheelbase | 86 inches
218 cm |
Length | 211 inches
535 cm |
Width | 91 inches
231 cm |
Height (cab) | 120 inches
304 cm |
Height (exhaust) | 125 inches
317 cm |
Weight | 26000 lbs
11793 kg |
Gauge | 60/68/72/76/80/88/90 inches
152/172/182/193/203/223/228 cm |
Photos

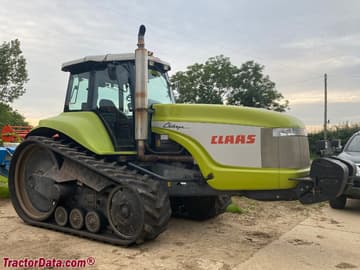

Claas 55
Claas 55
Claas 55
Claas 55
Claas 55
Claas Challenger 55 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Claas Challenger 55.
Converted Equivalents:
Horsepower (HP)100 hp
Kilowatts (kW)74.6 kW
Metric Horsepower (PS / CV)101.4 PS
