Claas Axion 820

The Claas Axion 820 is a tractor produced by Claas. It is equipped with a 410.6 ci 6.7 L engine. The rated power output is 215 hp 160.3 kW. Transmission: CMATIC. Operating weight: 21635 lbs 9813 kg.

Overview

	2018 - Axion 800 SeriesRow-Crop tractor
2018 -
Axion 800 Series
Row-Crop tractor

2018 -
Axion 800 Series
Row-Crop tractor

Production
Manufacturer	Claas
Row-Crop tractor

Claas Axion 820 Engine
FPT 6.7L 6-cyl diesel
Fuel tank	120 gal 454.2 L
Exhaust fluid (DEF)	11 gal 41.6 L
Engine details ...

Claas Axion 820 Transmission
continuously variable transmission
Transmission details ...

Claas Axion 820 Power
Engine	215 hp 160.3 kW
PTO (claimed)	209 hp 155.9 kW
Drawbar (tested)	168.63 hp 125.7 kW
PTO (tested)	215.43 hp 160.6 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Rear valves	4 or 5
Front valves	2 OptOptional
Pump flow	40 gpm 151.4 lpm

Tractor hitch
Rear Type	III

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Weight	21635 lbs 9813 kg
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

	2018 - Axion 800 SeriesRow-Crop tractor
2018 -
Axion 800 Series
Row-Crop tractor

2018 -
Axion 800 Series
Row-Crop tractor

Engine Detail
FPT
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement	410.6 ci 6.7 L
Bore/Stroke	4.09x5.20 inches 104 x 132 mm
Emissions	Tier IV
Emission control	selective catalytic reduction
Power	215 hp 160.3 kW
Starter	electric
Starter volts	12
Oil change	600 h

Transmission

	2018 - Axion 800 SeriesRow-Crop tractor
2018 -
Axion 800 Series
Row-Crop tractor

2018 -
Axion 800 Series
Row-Crop tractor

Transmission
Transmission	CMATIC
Type	continuously variable transmission
Gears	infinite forward and reverse

Dimensions

	2018 - Axion 800 SeriesRow-Crop tractor
2018 -
Axion 800 Series
Row-Crop tractor

2018 -
Axion 800 Series
Row-Crop tractor

Claas Axion 820 Tires

Dimensions
Operating weight	21635 lbs 9813 kg

Tests

	2018 - Axion 800 SeriesRow-Crop tractor
2018 -
Axion 800 Series
Row-Crop tractor

2018 -
Axion 800 Series
Row-Crop tractor

OCED Tractor Test 2180

OCED Tractor Test 2180
Diesel IVT 4WD September 12 - 29, 2017 Link: OCED Tractor Test 2180 file

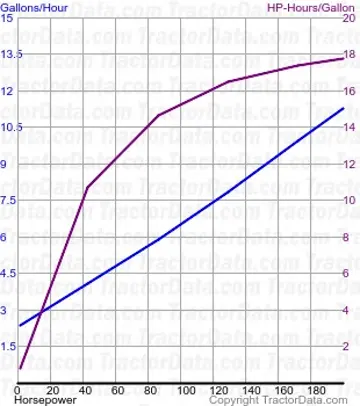

PTO performance
Max power	215.43 hp 160.6 kW
Fuel use	11.4 gal/hour 43.1 l/hour
Power at rated engine speed	199.49 hp 148.8 kW
Fuel use	11.2 gal/hour 42.4 l/hour
Power at rated PTO speed	212.48 hp 158.4 kW
Fuel use	11.5 gal/hour 43.5 l/hour
Drawbar performance
Max power	168.63 hp 125.7 kW
Fuel use	11.2 gal/hour 42.4 l/hour
Pull at 9 KPH
Max pull	20171 lbs 9149 kg
Pull at 4 KPH

Photos

Claas Axion 820 tractor photo
