CO-OP 1
The CO-OP 1 is a tractor produced by Co Op. It is equipped with a 132.7 ci 2.2 L engine. Operating weight: 3300 lbs 1496 kg.
Fuel & Capacities
Gasoline
Operating Weight
3300 lbs
1496 kg
Overview
 | 1937 - 1938
Row-Crop tractorDuplex Machinery built
Row-Crop tractor
Duplex Machinery built |
|---|
Production | |
|---|---|
Distributor | CO-OP |
Manufacturer | Duplex Machinery |
Row-Crop tractor | |
Built in Battle Creek, Michigan, USA | |
Original price was $1,000 in 1937 | |
Variants | |
|---|---|
1A | three-wheel tricycle |
2A | four-wheel tricycle |
1C | row-crop wide-front |
1D | orchard wide-front |
CO-OP 1 Engine | |
|---|---|
Waukesha 2.2L 4-cyl gasoline | |
Engine details ...  |
CO-OP 1 Transmission | |
|---|---|
gear | |
Transmission details ...  |
CO-OP 1 Power | |
|---|---|
Plows | 1 (14-inch) |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | continuous |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 3300 lbs
1496 kg |
Front tire | 7.50x16 |
Rear tire | 10.00-28 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 16 inches
40 cm |
Width | 7 inches
17 cm |
Engine
Engine Detail — 132.7 ci / 2.2 L Gasoline
Manufacturer | Waukesha |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 132.7 ci
2.2 L |
Bore/Stroke | 3.25x4.00 inches
83 x 102 mm |
Air cleaner | oil bath |
Transmission
Transmission — gear
Type | gear |
Dimensions
CO-OP 1 Tires | |
|---|---|
Ag front | 7.50x16 (single) |
5.50x16 | |
Ag rear | 10.00-28 |
Ag rear | 9.00x28 |
11.25x24 (orchard) | |
Dimensions | |
|---|---|
Length | 123.9 inches
314 cm |
Width | 74.75 inches
189 cm |
Height | 55 inches
139 cm |
Shipping weight | 3300 lbs
1496 kg |
Rear tread | 44 to 80 inches
111 to 203 cm |
Photos

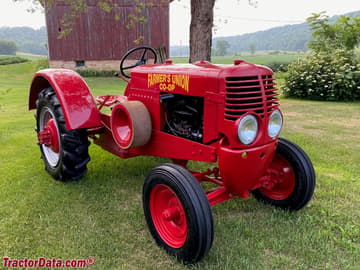

CO-OP 1D orchard tractor.
