CO-OP B1
The CO-OP B1 is a tractor produced by Co Op. It is equipped with a 113.12 ci 1.9 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 2105 lbs 954 kg.
Fuel & Capacities
12 gal
45.4 L
Transmission
3 forward and 1 reverse
Operating Weight
2105 lbs
954 kg
Overview
 | 1941 - 1942
Row-Crop tractorCletrac built
Row-Crop tractor
Cletrac built |
|---|
Note: the CO-OP model B1 is the same as the Cletrac General GG. The following data is from the General GG listing. |
|---|
Production | |
|---|---|
Distributor | CO-OP |
Manufacturer | Cletrac |
Row-Crop tractor | |
Built in Cleveland, Ohio, USA | |
Total built | 7,527 |
CO-OP B1 Engine | |
|---|---|
Hercules 1.9L 4-cyl gasoline | |
Fuel tank | 12 gal
45.4 L |
Engine details ...  | |
CO-OP B1 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
CO-OP B1 Power | |
|---|---|
Belt (claimed) | 18 hp
13.4 kW |
Plows | 1 (14-inch) |
Drawbar (tested) | 14.26 hp
10.6 kW |
Belt (tested) | 19.29 hp
14.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO Type | 560 |
Dimensions & Tires | |
|---|---|
Wheelbase | 80 inches
203 cm |
Weight | 2105 lbs
954 kg |
Front tire | 5.50-16 |
Rear tire | 9-24 |
Full dimensions and tires ...  | |
Links | |
|---|---|
Cletrac General GG: article at Yesterday's Tractor Co |
Belt Pulley | |
|---|---|
Diameter | 9.5 inches
24 cm |
Width | 5.5 inches
13 cm |
RPM | 1065 |
Speed | 2825 ft/min
861.06 meters/min |
Engine
Note: the CO-OP model B1 is the same as the Cletrac General GG. The following data is from the General GG listing. |
|---|
Engine Detail — 113.12 ci / 1.9 L Gasoline
Manufacturer | Hercules IXA3 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 113.12 ci
1.9 L |
Bore/Stroke | 3.00x4.00 inches
76 x 102 mm |
Air cleaner | oil bath |
Compression | 5.75:1 |
Rated RPM | 1400 (drawbar) |
1700 (belt) | |
Starter type | manual start |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 12 qts
11.4 L |
Transmission
Note: the CO-OP model B1 is the same as the Cletrac General GG. The following data is from the General GG listing. |
|---|
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Clutch | 9-inch dry plate |
Oil capacity | 10 qts
9.5 L |
 | |
Dimensions
Note: the CO-OP model B1 is the same as the Cletrac General GG. The following data is from the General GG listing. |
|---|
CO-OP B1 Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 9-24 |
Dimensions | |
|---|---|
Wheelbase | 80 inches
203 cm |
Length | 118 inches
299 cm |
Height (hood) | 55 inches
139 cm |
Shipping weight | 2105 lbs
954 kg |
Ballasted weight | 3115 lbs
1412 kg |
Tests
Note: the CO-OP model B1 is the same as the Cletrac General GG. The following data is from the General GG listing. |
|---|
Nebraska Tractor Test 323 | |
|---|---|
Gasoline 3-speed 2WD
August 10 - 30, 1939
Link: Nebraska Tractor Test 323 file | |
Belt power (max) | 19.29 hp
14.4 kW |
Drawbar performance | |
Max power | 14.26 hp
10.6 kW |
Gear 3 used for power test. | |
Max pull | 1699 lbs
770 kg |
Gear 1 used for pull test. | |
Photos

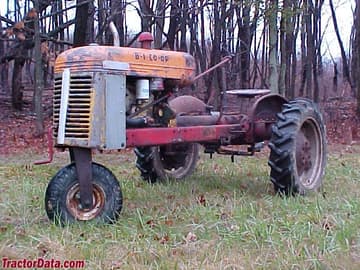

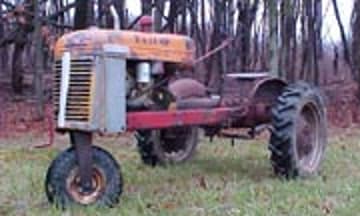

CO-OP B1
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Co Op CO-OP B1.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
