County 762H
The County 762H is a tractor produced by County. It is equipped with a 256 ci 4.2 L engine. The listed engine power is Diesel (gross): 75.5 hp / 56.3 kW. Transmission: 8 forward and 2 reverse.
Engine Power
Diesel (gross): 75.5 hp / 56.3 kW
Fuel & Capacities
Diesel
Transmission
8 forward and 2 reverse
Overview
 | 1975 - 1981
High-Clearance tractor |
|---|
Production | |
|---|---|
Manufacturer | County |
High-Clearance tractor | |
Built in Fleet, England | |
The County 762 High-Drive was based on the Ford 6600. | |
County 762H Engine | |
|---|---|
Ford 4.2L 4-cyl diesel | |
Engine details ...  |
County 762H Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
County 762H Power | |
|---|---|
Engine (gross) | 75.5 hp
56.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Cab standard. Open station available. |
Dimensions & Tires | |
|---|---|
Front tire | 7.50x18 |
Rear tire | 13.6/12x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
762H High-Drive published by County |
Engine
Engine Detail — 256 ci / 4.2 L Diesel
Manufacturer | Ford |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 256 ci
4.2 L |
Bore/Stroke | 4.409x4.2126 inches
112 x 107 mm |
Power (gross) | 75.5 hp
56.3 kW |
Rated RPM | 2100 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 8 forward and 2 reverse gear
Type | gear |
Gears | 8 forward and 2 reverse |
Dimensions
County 762H Tires | |
|---|---|
Standard tires (ag) | Front: 7.50x18. Rear: 13.6/12x38 |
Optional tires (ag) | Front: 9.50x24. Rear: 9.5R48 |
Dimensions | |
|---|---|
Clearance (front axle) | 32 inches
81 cm |
Clearance (rear axle) | 32 inches
81 cm |
Front tread | 58 to 78 inches
147 to 198 cm |
Rear tread | 58 to 86 inches
147 to 218 cm |
Photos

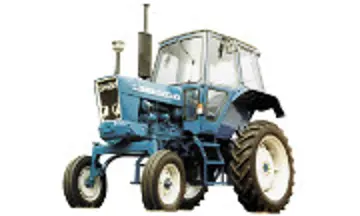

County 762H tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for County 762H based on its 75.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 762H.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 762H Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 762H.
Converted Equivalents:
Horsepower (HP)75.5 hp
Kilowatts (kW)56.3 kW
Metric Horsepower (PS / CV)76.5 PS
Direct Competitor Comparison
Compare County 762H against same-era industry alternatives in the same horsepower class.
Current Model
County
County 762H
Engine Power:Diesel (gross): 75.5 hp / 56.3 kW
★ Baseline Reference
