County Super 4
The County Super 4 is a tractor produced by County. It is equipped with a 256 ci 4.2 L engine. The listed engine power is Diesel (net): 70 hp / 52.2 kW. Transmission: 8 forward and 2 reverse. Drive type: 4x4 4WD. Operating weight: 8036 to 11800 pounds.
Engine Power
Diesel (net): 70 hp / 52.2 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
Diesel
Transmission
8 forward and 2 reverse
Operating Weight
11800 lbs
5352 kg
Overview
 | 1960 - 1964 |
|---|
Production | |
|---|---|
Manufacturer | County |
Built in Fleet, England | |
County Super 4 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
County Super 4 Power | |
|---|---|
Engine (net) | 70 hp
52.2 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Final drives | planetary |
Power steering | |
Open operator station. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2500 psi
172.4 bar |
Pump flow | 6 gpm
22.7 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Engine RPM | 540@1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.6 inches
181 cm |
Weight | 8036 to 11800 pounds |
Front tire | 16.9-30 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Engine
Engine options | |
|---|---|
Ford 3.6L 4-cyl diesel | |
Ford 4.2L 4-cyl diesel |
Engine Detail — 220 ci / 3.6 L Diesel
Manufacturer | Ford |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 220 ci
3.6 L |
Bore/Stroke | 3.937x4.52 inches
100 x 115 mm |
Compression | 16:1 |
Rated RPM | 1600 |
Firing order | 1-2-4-3 |
Oil capacity | 7.2 qts
6.8 L |
Engine Detail — 256 ci / 4.2 L Diesel
Manufacturer | Ford |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 256 ci
4.2 L |
Bore/Stroke | 4.4x4.2 inches
112 x 107 mm |
Power (net) | 70 hp
52.2 kW |
Rated RPM | 2100 |
Oil capacity | 10 qts
9.5 L |
Coolant capacity | 15.3 qts
14.5 L |
Transmission
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Oil capacity | 10.8 qts
10.2 L |
 | |
Dimensions
County Super 4 Tires | |
|---|---|
Ag front | 16.9-30 |
Ag rear | 16.9-30 |
Ag front | 13.6-38 |
16.9-34 | |
18.4-30 | |
23.1-26 | |
Ag rear | 13.6-38 |
16.9-34 | |
18.4-30 | |
23.1-26 | |
Dimensions | |
|---|---|
Wheelbase | 71.6 inches
181 cm |
Length | 146 inches
370 cm |
Height (steering wheel) | 68 inches
172 cm |
Shipping weight | 8036 lbs
3645 kg |
Operating weight | 11800 lbs
5352 kg |
Ground clearance | 13.5 inches
34 cm |
Front tread | 60 to 84 inches
152 to 213 cm |
Rear tread | 60 to 84 inches
152 to 213 cm |
Photos

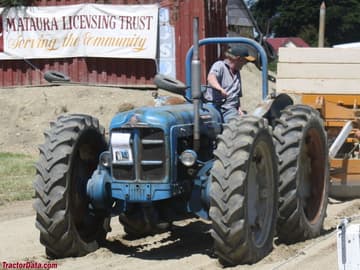

County Super 4
Recommended Implements & Sizing Guide
Engineering recommendations for County Super 4 based on its 70 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County Super 4.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County Super 4 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County Super 4.
Converted Equivalents:
Horsepower (HP)70 hp
Kilowatts (kW)52.2 kW
Metric Horsepower (PS / CV)71 PS
