Craftsman 917.25887
The Craftsman 917.25887 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The rated power output is 18.5 hp 13.8 kW. Transmission: Hydro-Gear 210-3010L.
Engine Power
18.5 hp
13.8 kW
Fuel & Capacities
Gasoline
Transmission
Hydro-Gear 210-3010L
Craftsman Lawn Tractors Craftsman 917.25887 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1997
Garden tractorAYP built |
|---|---|
1997 | |
Garden tractor | |
AYP built | |
1997 | |
|---|---|
Garden tractor | |
AYP built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | AYP |
Garden tractor | |
Craftsman 917.25887 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 16x6 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 240 |
Battery volts | 12 |
Battery AH | 30 |
Battery Group | U1R |
Engine
| 1997
Garden tractorAYP built |
|---|---|
1997 | |
Garden tractor | |
AYP built | |
1997 | |
|---|---|
Garden tractor | |
AYP built |
Engine options | |
|---|---|
18.5HP Kohler 691cc 2-cyl gasoline | |
18.5HP Kohler 624cc 2-cyl gasoline |
Engine Detail — 691 cc / 42.18 ci Gasoline
Manufacturer | Kohler MV18S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft opposed-twin |
Displacement | 691 cc
42.18 ci |
Bore/Stroke | 3.12x2.75 inches
79 x 70 mm |
Power | 18.5 hp
13.8 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RV17YC |
Sparkplug gap | 0.025 inches
0.635 mm |
Oil capacity | 2 qts
1.9 L |
Oil change | 25 h |
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kohler CV20S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power | 18.5 hp
13.8 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2.1 qts
2.0 L |
Oil change | 25 h |
Transmission
| 1997
Garden tractorAYP built |
|---|---|
1997 | |
Garden tractor | |
AYP built | |
1997 | |
|---|---|
Garden tractor | |
AYP built |
Transmission — Hydro-Gear 210-3010L
Transmission | Hydro-Gear 210-3010L |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil change | sealed unit, owner service is not recommended |
 | |
Dimensions
| 1997
Garden tractorAYP built |
|---|---|
1997 | |
Garden tractor | |
AYP built | |
1997 | |
|---|---|
Garden tractor | |
AYP built |
Craftsman 917.25887 Tires | |
|---|---|
Lawn/turf front | 16x6 |
Lawn/turf rear | 23x10.5-12 |
Dimensions |
|---|
Attachments
| 1997
Garden tractorAYP built |
|---|---|
1997 | |
Garden tractor | |
AYP built | |
1997 | |
|---|---|
Garden tractor | |
AYP built |
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
48" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
3-blade with manual lift | |
Cutting width | 48 inches
121 cm |
Photos
Craftsman 917.25887
Craftsman 917.25887
Craftsman 917.25887 controls.

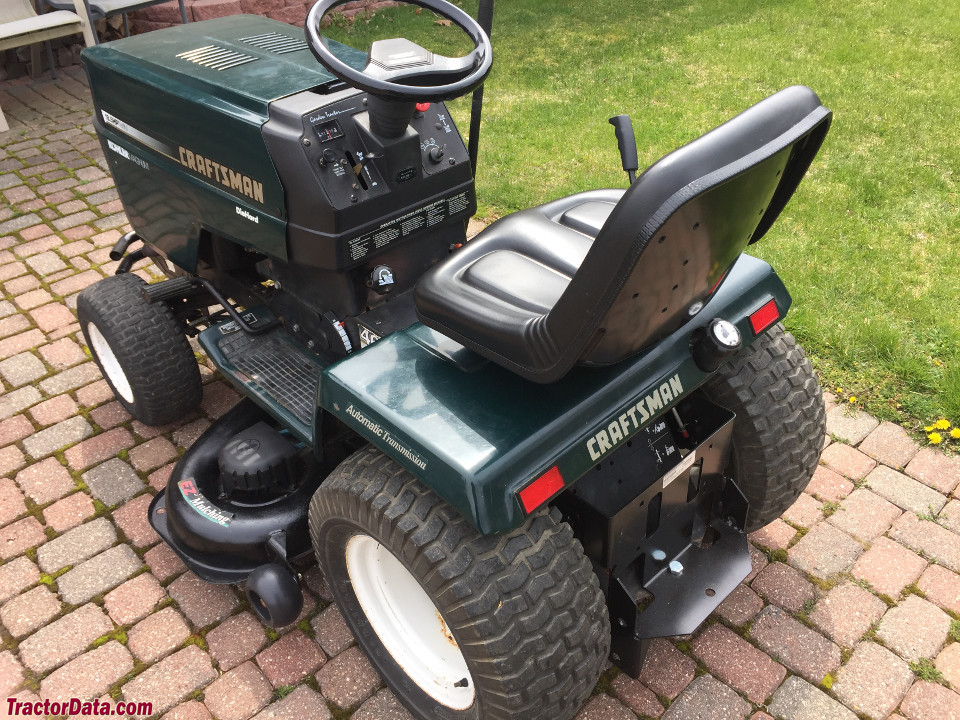

Craftsman 917.25887 garden tractor.
Craftsman 917.25887 garden tractor.
Craftsman 917.25887 garden tractor.
Craftsman 917.25887 garden tractor.
Craftsman Lawn Tractors Craftsman 917.25887 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.25887.
Converted Equivalents:
Horsepower (HP)18.5 hp
Kilowatts (kW)13.8 kW
Metric Horsepower (PS / CV)18.8 PS
