Craftsman 917.27684
The Craftsman 917.27684 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The rated power output is 24 hp 17.9 kW. Transmission: Hydro Gear 318-0610.
Engine Power
24 hp
17.9 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Hydro Gear 318-0610
Craftsman Lawn Tractors Craftsman 917.27684 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006
FS5500 SeriesLawn tractorAYP built |
|---|---|
2006 | |
FS5500 Series | |
Lawn tractor | |
AYP built | |
2006 | |
|---|---|
FS5500 Series | |
Lawn tractor | |
AYP built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | AYP |
Lawn tractor | |
Craftsman 917.27684 Engine | |
|---|---|
24HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Craftsman 917.27684 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery CCA | 280 |
Battery volts | 12 |
Battery AH | 35 |
Battery Group | U1R |
References | |
|---|---|
 | |
2006 Riding Equipment published by Sears |
Engine
| 2006
FS5500 SeriesLawn tractorAYP built |
|---|---|
2006 | |
FS5500 Series | |
Lawn tractor | |
AYP built | |
2006 | |
|---|---|
FS5500 Series | |
Lawn tractor | |
AYP built |

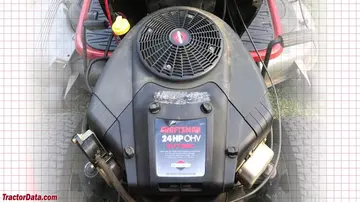

Engine Detail — 724 cc / 44.18 ci Gasoline
Manufacturer | Briggs & Stratton 445677 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 724 cc
44.18 ci |
Bore/Stroke | 3.3x2.6 inches
84 x 66 mm |
Power (gross) | 24 hp
17.9 kW |
Air cleaner | paper cartridge |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion QC12YC |
Sparkplug gap | 0.040 inches
1.016 mm |
Oil capacity | 2 qts
1.9 L |
Craftsman 917.27684 Engine | |
|---|---|
 |
Transmission
| 2006
FS5500 SeriesLawn tractorAYP built |
|---|---|
2006 | |
FS5500 Series | |
Lawn tractor | |
AYP built | |
2006 | |
|---|---|
FS5500 Series | |
Lawn tractor | |
AYP built |
Transmission — Hydro Gear 318-0610
Transmission | Hydro Gear 318-0610 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2006
FS5500 SeriesLawn tractorAYP built |
|---|---|
2006 | |
FS5500 Series | |
Lawn tractor | |
AYP built | |
2006 | |
|---|---|
FS5500 Series | |
Lawn tractor | |
AYP built |
Craftsman 917.27684 Tires |
|---|
Dimensions |
|---|
Attachments
| 2006
FS5500 SeriesLawn tractorAYP built |
|---|---|
2006 | |
FS5500 Series | |
Lawn tractor | |
AYP built | |
2006 | |
|---|---|
FS5500 Series | |
Lawn tractor | |
AYP built |
48" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
3-blade with manual lift | |
Cutting width | 48 inches
121 cm |
Photos
Craftsman 917.27684
Craftsman Lawn Tractors Craftsman 917.27684 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.27684.
Converted Equivalents:
Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS
