Craftsman 917.28861
The Craftsman 917.28861 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 725 cc 44.24 ci engine. The rated power output is 26 hp 19.4 kW. Transmission: Hydro Gear G7. Operating weight: 596 lbs 270 kg.
Engine Power
26 hp
19.4 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Hydro Gear G7
Operating Weight
596 lbs
270 kg
Craftsman Lawn Tractors Craftsman 917.28861 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2011 - 2013
GT6000 SeriesGarden tractorHusqvarna built |
|---|---|
2011 - 2013 | |
GT6000 Series | |
Garden tractor | |
Husqvarna built | |
2011 - 2013 | |
|---|---|
GT6000 Series | |
Garden tractor | |
Husqvarna built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | Husqvarna |
Garden tractor | |
Original price | $3,360 (2011) |
$2,928 (2012) | |
Variants | |
|---|---|
917.28867 | California Emissions |
Craftsman 917.28861 Engine | |
|---|---|
26HP Kohler 725cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Craftsman 917.28861 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual sector and pinion |
Open operator station. High-back seat with armrests and sliding adjustment. | |
Tractor hitch | |
|---|---|
Type | independent |
Dimensions & Tires | |
|---|---|
Weight | 596 lbs
270 kg |
Front tire | 16x6.5-6 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 230 |
Battery volts | 12 |
Battery AH | 28 |
Battery Group | U1R |
References | |
|---|---|
 | |
2011 Customer Buying Guide published by Sears | |
2012 Customer Buying Guide published by Sears |
Engine
| 2011 - 2013
GT6000 SeriesGarden tractorHusqvarna built |
|---|---|
2011 - 2013 | |
GT6000 Series | |
Garden tractor | |
Husqvarna built | |
2011 - 2013 | |
|---|---|
GT6000 Series | |
Garden tractor | |
Husqvarna built |
Engine Detail — 725 cc / 44.24 ci Gasoline
Manufacturer | Kohler Pro Courage SV735 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 725 cc
44.24 ci |
Power (gross) | 26 hp
19.4 kW |
Air cleaner | paper |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2 qts
1.9 L |

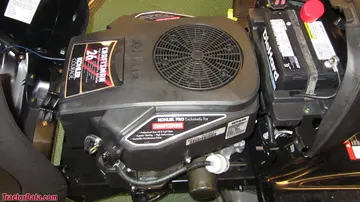

Craftsman 917.28861 Engine | |
|---|---|
 |
Transmission
| 2011 - 2013
GT6000 SeriesGarden tractorHusqvarna built |
|---|---|
2011 - 2013 | |
GT6000 Series | |
Garden tractor | |
Husqvarna built | |
2011 - 2013 | |
|---|---|
GT6000 Series | |
Garden tractor | |
Husqvarna built |
Transmission — Hydro Gear G7
Transmission | Hydro Gear G7 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |

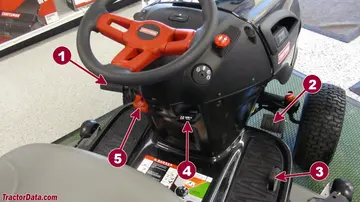

917.28861 Transmission Controls | |
|---|---|
 |
Dimensions
| 2011 - 2013
GT6000 SeriesGarden tractorHusqvarna built |
|---|---|
2011 - 2013 | |
GT6000 Series | |
Garden tractor | |
Husqvarna built | |
2011 - 2013 | |
|---|---|
GT6000 Series | |
Garden tractor | |
Husqvarna built |
Craftsman 917.28861 Tires | |
|---|---|
Lawn/turf front | 16x6.5-6 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Weight | 596 lbs
270 kg |
Attachments
| 2011 - 2013
GT6000 SeriesGarden tractorHusqvarna built |
|---|---|
2011 - 2013 | |
GT6000 Series | |
Garden tractor | |
Husqvarna built | |
2011 - 2013 | |
|---|---|
GT6000 Series | |
Garden tractor | |
Husqvarna built |
54" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
3-blade with manual lift | |
Cutting width | 54 inches
137 cm |
Belt | AYP 196103 |
Cut height | 1 to 4 inch
2 to 10 cm |
Cut positions | 12 |
Photos
Craftsman 917.28861
Craftsman 917.28861
Craftsman 917.28861 operator station and controls.
Craftsman 917.28867 garden tractor.
Craftsman Lawn Tractors Craftsman 917.28861 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.28861.
Converted Equivalents:
Horsepower (HP)26 hp
Kilowatts (kW)19.4 kW
Metric Horsepower (PS / CV)26.4 PS
