Craftsman 917.28947
The Craftsman 917.28947 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 725 cc 44.24 ci engine. The rated power output is 26 hp 19.4 kW. Transmission: Hydro Gear G730. Operating weight: 644 lbs 292 kg.
Engine Power
26 hp
19.4 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Hydro Gear G730
Operating Weight
644 lbs
292 kg
Craftsman Lawn Tractors Craftsman 917.28947 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2009 - 2010
GT5000 SeriesGarden tractorHusqvarna built |
|---|---|
2009 - 2010 | |
GT5000 Series | |
Garden tractor | |
Husqvarna built | |
2009 - 2010 | |
|---|---|
GT5000 Series | |
Garden tractor | |
Husqvarna built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | Husqvarna |
Garden tractor | |
Original price was $3,480 in 2010 | |
Variants | |
|---|---|
28945 | five-speed |
28948 | California emissions |
Craftsman 917.28947 Engine | |
|---|---|
26HP Kohler 725cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Craftsman 917.28947 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual sector and pinion |
Disc brakes | |
Open operator station. Adjustable seat with arm rests and cup holder. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch (optional) |
Dimensions & Tires | |
|---|---|
Weight | 644 lbs
292 kg |
Front tire | 16x6.5x8 |
Rear tire | 23x10.5x12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 230 |
Battery volts | 12 |
Battery AH | 28 |
Battery Group | U1R |
References | |
|---|---|
 | |
2009 Riding Equipment published by Sears |
Engine
| 2009 - 2010
GT5000 SeriesGarden tractorHusqvarna built |
|---|---|
2009 - 2010 | |
GT5000 Series | |
Garden tractor | |
Husqvarna built | |
2009 - 2010 | |
|---|---|
GT5000 Series | |
Garden tractor | |
Husqvarna built |
Engine Detail — 725 cc / 44.24 ci Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 725 cc
44.24 ci |
Power (gross) | 26 hp
19.4 kW |
Air cleaner | dual paper element |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2 qts
1.9 L |
Transmission
| 2009 - 2010
GT5000 SeriesGarden tractorHusqvarna built |
|---|---|
2009 - 2010 | |
GT5000 Series | |
Garden tractor | |
Husqvarna built | |
2009 - 2010 | |
|---|---|
GT5000 Series | |
Garden tractor | |
Husqvarna built |
Transmission — Hydro Gear G730
Transmission | Hydro Gear G730 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |

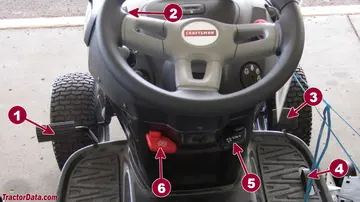

917.28947 Transmission Controls | |
|---|---|
 | |
1 | Brake |
2 | Throttle |
3 | Forward |
4 | Reverse |
5 | Cruise control |
6 | Parking brake |
Dimensions
| 2009 - 2010
GT5000 SeriesGarden tractorHusqvarna built |
|---|---|
2009 - 2010 | |
GT5000 Series | |
Garden tractor | |
Husqvarna built | |
2009 - 2010 | |
|---|---|
GT5000 Series | |
Garden tractor | |
Husqvarna built |
Craftsman 917.28947 Tires | |
|---|---|
Lawn/turf front | 16x6.5x8 |
Lawn/turf rear | 23x10.5x12 |
Dimensions | |
|---|---|
Weight | 644 lbs
292 kg |
Attachments
| 2009 - 2010
GT5000 SeriesGarden tractorHusqvarna built |
|---|---|
2009 - 2010 | |
GT5000 Series | |
Garden tractor | |
Husqvarna built | |
2009 - 2010 | |
|---|---|
GT5000 Series | |
Garden tractor | |
Husqvarna built |
Attachment overview | |
|---|---|
Optional 9-bushel 3-bin bagger (24917). | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
54" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
3-blade with manual lift | |
Cutting width | 54 inches
137 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Cut positions | 7 |
Photos
Craftsman 917.28947
Craftsman 917.28947
Craftsman 917.28947 operator station and controls.
Craftsman Lawn Tractors Craftsman 917.28947 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.28947.
Converted Equivalents:
Horsepower (HP)26 hp
Kilowatts (kW)19.4 kW
Metric Horsepower (PS / CV)26.4 PS
