Craftsman 917.28990
The Craftsman 917.28990 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 725 cc 44.24 ci engine. The listed engine power is Gasoline (gross): 26 hp / 19.4 kW. Transmission: infinite forward and reverse. Operating weight: 556 lbs 252 kg.
Engine Power
Gasoline (gross): 26 hp / 19.4 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
infinite forward and reverse
Operating Weight
556 lbs
252 kg
Overview
 | 2009 - 2010
YT 4500 SeriesLawn tractorHusqvarna built
YT 4500 Series
Lawn tractor
Husqvarna built |
|---|
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | Husqvarna |
Lawn tractor | |
Original price was $2,490 in 2010 | |
Craftsman 917.28990 Engine | |
|---|---|
26HP Kohler 725cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Craftsman 917.28990 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical disc brakes | |
Open operator station with high-back sliding adjustable seat and cup holder. |
Dimensions & Tires | |
|---|---|
Weight | 556 lbs
252 kg |
Front tire | 15x6x6 |
Rear tire | 20x10x8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 230 |
Battery volts | 12 |
Battery AH | 28 |
Battery Group | U1R |
References | |
|---|---|
 | |
2009 Riding Equipment published by Sears |
Engine

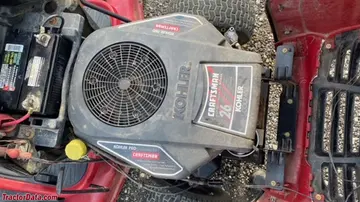

Engine Detail — 725 cc / 44.24 ci Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 725 cc
44.24 ci |
Power (gross) | 26 hp
19.4 kW |
Air cleaner | paper element |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1.9 qts
1.8 L |
Craftsman 917.28990 Engine | |
|---|---|
 |
Transmission
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Towing release on rear of tractor. Pull lever out and up to free-wheel. | |
 | |
Dimensions
Craftsman 917.28990 Tires | |
|---|---|
Lawn/turf front | 15x6x6 |
Lawn/turf rear | 20x10x8 |
Dimensions | |
|---|---|
Weight | 556 lbs
252 kg |
Attachments
54" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
3-blade with manual lift | |
Cutting width | 54 inches
137 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Cut positions | 6 |
Photos
Craftsman 917.28990
Craftsman 917.28990
Recommended Implements & Sizing Guide
Engineering recommendations for Craftsman Lawn Tractors Craftsman 917.28990 based on its 26 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Craftsman Lawn Tractors Craftsman 917.28990.
Estimated Continuous Field Runtime: 2.2 hrs
Approximately 2.2 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Estimated 75% Load Fuel Burn~1.4 gal/hr (5.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Craftsman Lawn Tractors Craftsman 917.28990 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.28990.
Converted Equivalents:
Horsepower (HP)26 hp
Kilowatts (kW)19.4 kW
Metric Horsepower (PS / CV)26.4 PS
Direct Competitor Comparison
Compare Craftsman 917.28990 against same-era industry alternatives in the same horsepower class.
Current Model
Craftsman Lawn Tractors
Craftsman 917.28990
Engine Power:Gasoline (gross): 26 hp / 19.4 kW
★ Baseline Reference
