Cub Cadet 1515

The Cub Cadet 1515 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 426 cc 26 ci engine. The rated power output is 15 hp 11.2 kW. Transmission: infinite forward and reverse. Operating weight: 502 lbs 227 kg.

Overview

	2002 1500 SeriesLawn tractor
2002
1500 Series
Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor
Original price was $2499 in 2002

Cub Cadet 1515 Engine
15HP Kohler 426cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Cub Cadet 1515 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Dry disc brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47 inches 119 cm
Weight	502 lbs 227 kg
Front tire	15x6
Rear tire	20x9
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	270
Battery volts	12

Engine

Engine Detail — 426 cc / 26 ci Gasoline

Manufacturer	Kohler CV426
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	426 cc 26 ci
Bore/Stroke	3.54x2.64 inches 90 x 67 mm
Power (gross)	15 hp 11.2 kW
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet 1515 Tires
Lawn/turf front	15x6
Lawn/turf rear	20x9

Dimensions
Wheelbase	47 inches 119 cm
Length	68 inches 172 cm
Weight	502 lbs 227 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Cub Cadet
	manual lift
Cutting width	38 inches 96 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	6

Photos

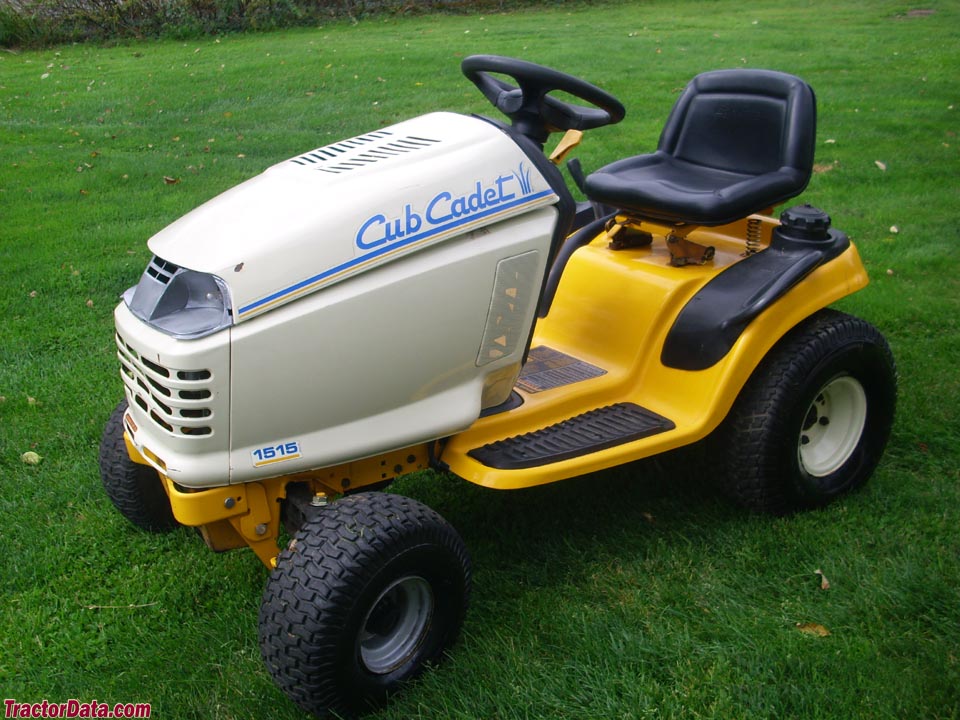

Cub Cadet 1515

Cub Cadet 1515
