Cub Cadet 1527
The Cub Cadet 1527 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 494 cc 30.15 ci engine. The rated power output is 17 hp 12.7 kW. Transmission: Hydro-Gear 311-0710. Operating weight: 504 lbs 228 kg.
Engine Power
17 hp
12.7 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Hydro-Gear 311-0710
Operating Weight
504 lbs
228 kg
Cub Cadet Lawn Tractors Cub Cadet 1527 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2003
1500 SeriesLawn tractor |
|---|---|
2003 | |
1500 Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Cub Cadet 1527 Engine | |
|---|---|
17HP Kawasaki 494cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Cub Cadet 1527 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Dry disc brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 504 lbs
228 kg |
Front tire | 15x6x6 |
Rear tire | 20x9x8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 13 |
Battery CCA | 270 |
Battery volts | 12 |
References | |
|---|---|
 | |
Outdoor Power Equipment 2003 published by Cub Cadet |
Engine
Engine Detail — 494 cc / 30.15 ci Gasoline
Manufacturer | Kawasaki FH500V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 494 cc
30.15 ci |
Bore/Stroke | 2.68x2.68 inches
68 x 68 mm |
Power (gross) | 17 hp
12.7 kW |
Compression | 8.5:1 |
Rated RPM | 3600 |
Idle RPM | 1200-3600 |
Torque | 25.1 lb-ft
34.0 Nm |
Torque RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RCJ8Y |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1.8 qts
1.7 L |
Oil change | 100 h |
Transmission
Transmission — Hydro-Gear 311-0710
Transmission | Hydro-Gear 311-0710 |
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.5 qts
2.4 L |
 | |

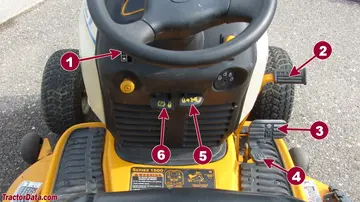

1527 Transmission Controls | |
|---|---|
 | |
1 | Throttle |
2 | Brake |
3 | Forward |
4 | Reverse |
5 | Cruise control |
6 | Parking brake |
Dimensions
Cub Cadet 1527 Tires | |
|---|---|
Lawn/turf front | 15x6x6 |
Lawn/turf rear | 20x9x8 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 68 inches
172 cm |
Width | 45 inches
114 cm |
Height (steering wheel) | 43 inches
109 cm |
Weight | 504 lbs
228 kg |
Ground clearance | 6 inches
15 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Photos

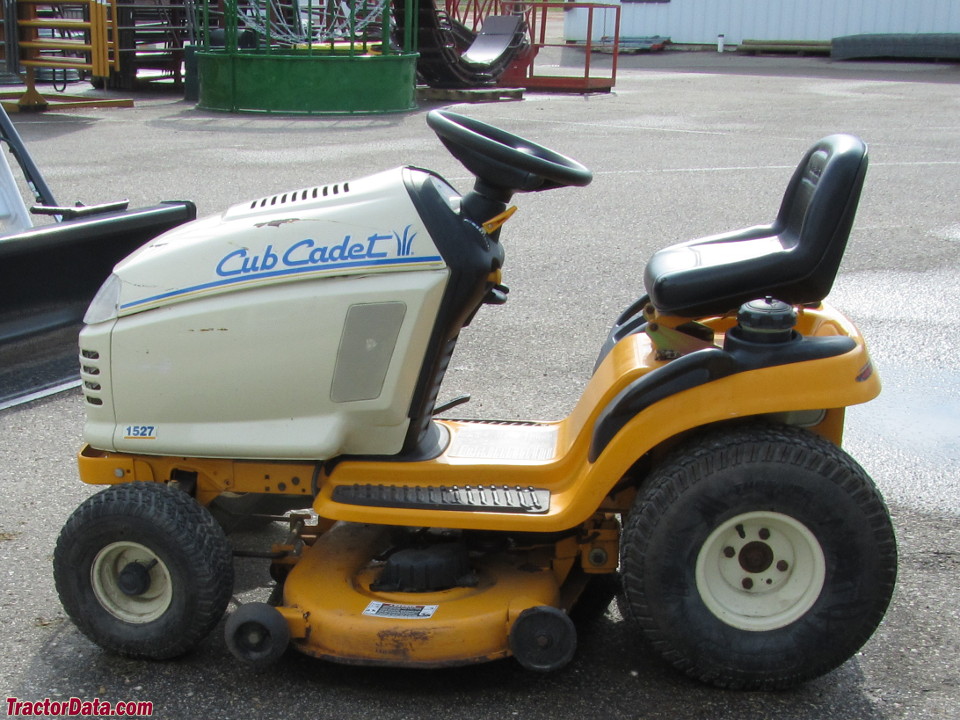

Cub Cadet 1527
Cub Cadet 1527

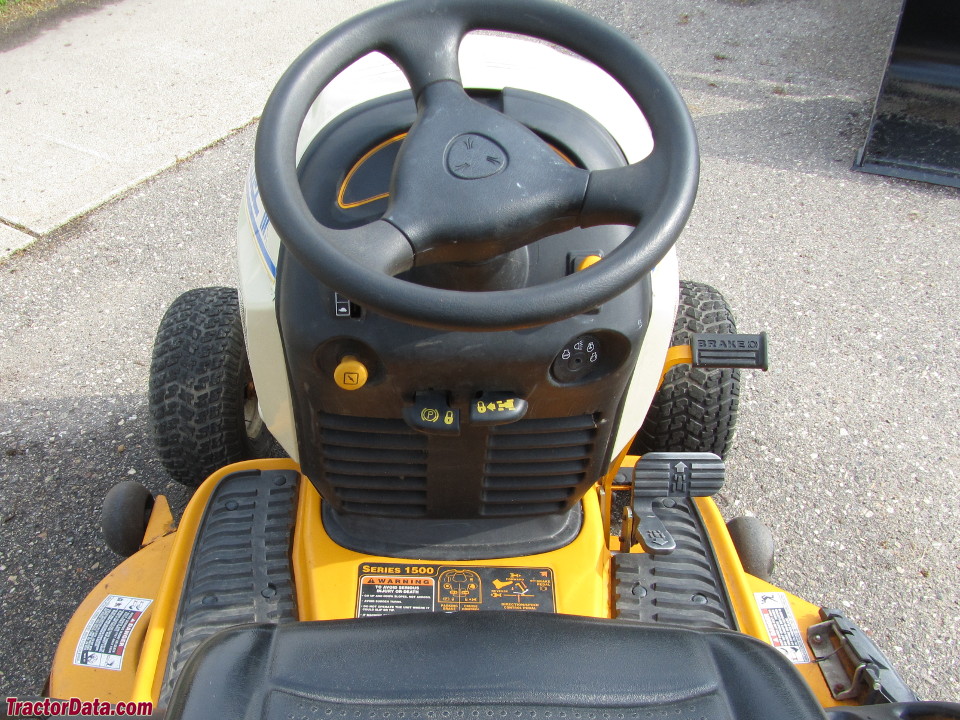

Cub Cadet 1527 operator station and controls.
