Cub Cadet 1782

The Cub Cadet 1782 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 638 cc 38.93 ci engine. The rated power output is 17 hp 12.7 kW. Transmission: Sundstrand. Operating weight: 1133 lbs*Weight with 60-inch mower deck. 513 kg.

Overview

	1990 - 1996 Garden tractor
1990 - 1996
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Cub Cadet 1782 Engine
17HP Kubota 638cc 3-cyl diesel
Fuel tank	5 gal 18.9 L
Engine details ...

Cub Cadet 1782 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Dual disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electric
Rear PTO Type	2000
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	51.6 inches 131 cm
Weight	1133 lbs 513 kg
Front tire	18x8.50-8
Rear tire	26x12.00-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	500
Battery volts	12

References
Cub Cadet Garden Tractors published in 1989
Garden Tractors published in 1991, by Cub Cadet
1991 Product Line published by Cub Cadet
1992 Product Line published by Cub Cadet
Garden Tractors published in 1992, by Cub Cadet
Garden Tractors published in 1993, by Cub Cadet
Garden Tractors published in 1994, by Cub Cadet
Full Line published in 1995, by Cub Cadet
Garden & Super Garden Tractors published in 1995, by Cub Cadet
Full Line published in 1996, by Cub Cadet
Garden & Super Garden Tractors published in 1996, by Cub Cadet
Service Manual Garden Tractors (772-4116) published in 1991

Engine

Engine Detail — 638 cc / 38.93 ci Diesel

Manufacturer	Kubota D640
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled horizontal-shaft inline
Displacement	638 cc 38.93 ci
Bore/Stroke	2.60x2.45 inches 66 x 62 mm
Power (gross)	17 hp 12.7 kW
Starter	electric
Starter volts	12
Coolant capacity	4 qts 3.8 L
Oil capacity	3.1 qts 2.9 L

Transmission

Transmission — Sundstrand

Transmission	Sundstrand
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L

Dimensions

Cub Cadet 1782 Tires
Lawn/turf front	18x8.50-8
Lawn/turf rear	26x12.00-12

Dimensions
Wheelbase	51.6 inches 131 cm
Length	78.5 inches 199 cm
Width	43.5 inches 110 cm
Height (steering wheel)	47.5 inches 120 cm
Weight	1133 lbs*Weight with 60-inch mower deck. 513 kg
Ground clearance	7.6 inches 19 cm
Front axle	Cast-iron
Front tread	33 inches 83 cm
Rear tread	31.5 inches 80 cm

Attachments

Attachment overview
46" mid-mount mower deck
50" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Cub Cadet 1782, right side.

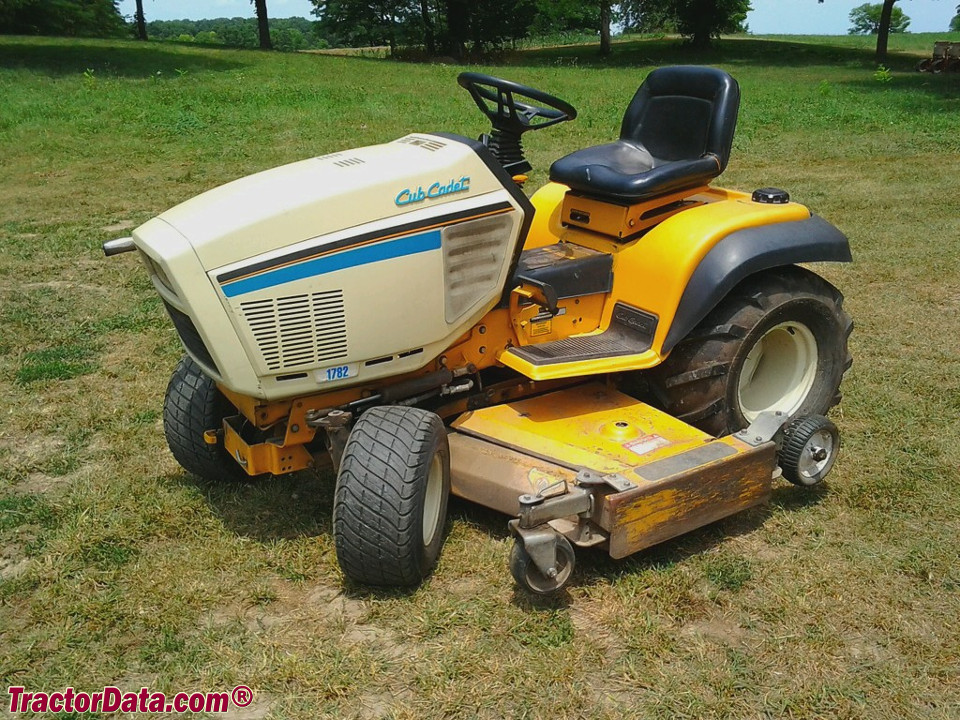

Cub Cadet 1782, left side.
