Cub Cadet 1810
The Cub Cadet 1810 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: infinite forward and reverse.
Engine Power
18 hp
13.4 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
infinite forward and reverse
Cub Cadet Lawn Tractors Cub Cadet 1810 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1986 - 1989
Garden tractor |
|---|---|
1986 - 1989 | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Built in Brownsville, Tennessee, USA | |
Variants | |
|---|---|
1806 | gear drive |
1810 | hydrostatic |
1811 | hydro with hydraulic lift |
1812 | hydro with lift and remotes |
Cub Cadet 1810 Engine | |
|---|---|
18HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Cub Cadet 1810 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Dual disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Garden Tractors published in 1987, by Cub Cadet | |
Cub Cadet Garden Tractors published in 1988 | |
Cub Cadet Garden Tractors published in 1989 |
Engine
Engine Detail — 691 cc / 42.18 ci Gasoline
Manufacturer | Kohler M18 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 691 cc
42.18 ci |
Bore/Stroke | 3.125x2.75 inches
79 x 70 mm |
Power (gross) | 18 hp
13.4 kW |
Idle RPM | 1200-3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.25 inches
6.350 mm |
Intake valve clearance | 0.004 inches (cold)
0.102 mm |
Exhaust valve clearance | 0.012 inches (cold)
0.305 mm |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 7 qts
6.6 L |
 | |
Dimensions
Cub Cadet 1810 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 72 inches
182 cm |
Width | 37.75 inches
95 cm |
Height (steering wheel) | 43 inches
109 cm |
Ground clearance | 6 inches
15 cm |
Front tread | 29 inches
73 cm |
Rear tread | 27 inches
68 cm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos
Cub Cadet 1810

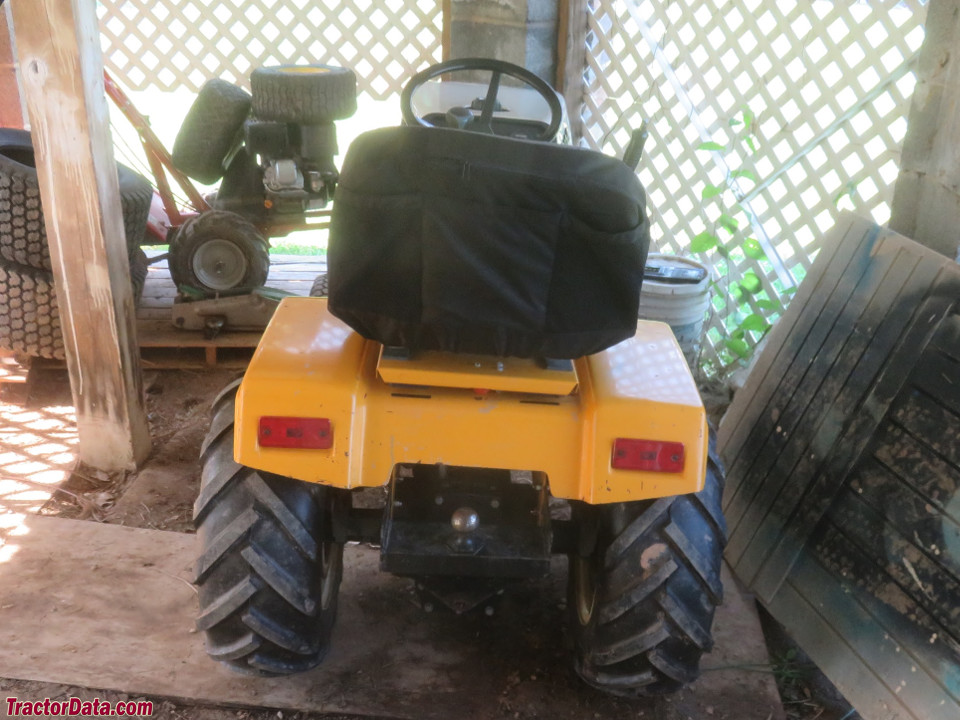

Cub Cadet 1810, rear view.
