Cub Cadet 2284
The Cub Cadet 2284 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Sundstrand. Operating weight: 1037 lbs*Weight with 60-inch mower deck. 470 kg.
Engine Power
Gasoline (gross): 22 hp / 16.4 kW
Fuel & Capacities
5 gal
18.9 L
Transmission
Sundstrand
Operating Weight
1037 lbs*Weight with 60-inch mower deck.
470 kg
Overview
 | 1995 - 1997
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Cub Cadet 2284 Engine | |
|---|---|
22HP Kohler 624cc 2-cyl gasoline | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Cub Cadet 2284 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Clutch | electric |
Rear PTO Type | 2000 |
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 51.6 inches
131 cm |
Weight | 1037 lbs
470 kg |
Front tire | 18x8.5-8 |
Rear tire | 26x12-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 440 |
Battery volts | 12 |
References | |
|---|---|
 | |
Full Line published in 1995, by Cub Cadet | |
Garden & Super Garden Tractors published in 1995, by Cub Cadet | |
Full Line published in 1996, by Cub Cadet | |
Garden & Super Garden Tractors published in 1996, by Cub Cadet |
Engine
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kohler Command CH22 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-Twin |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power (gross) | 22 hp
16.4 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |

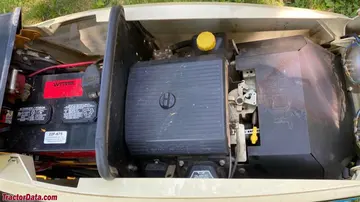

Cub Cadet 2284 Engine | |
|---|---|
 | |
Image courtesy of Dan La Pointe |
Transmission
Transmission — Sundstrand
Transmission | Sundstrand |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Cub Cadet 2284 Tires | |
|---|---|
Lawn/turf front | 18x8.5-8 |
Lawn/turf rear | 26x12-12 |
Dimensions | |
|---|---|
Wheelbase | 51.6 inches
131 cm |
Length | 78.5 inches
199 cm |
Width | 43.5 inches
110 cm |
Height (steering wheel) | 47.5 inches
120 cm |
Weight | 1037 lbs*Weight with 60-inch mower deck.
470 kg |
Front axle | Cast-iron |
Attachments
Attachment overview | |
|---|---|
46" mid-mount mower deck | |
48" mid-mount mower deck | |
54" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos
Cub Cadet 2284
Cub Cadet 2284
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet 2284 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 2284.
Estimated Continuous Field Runtime: 4.4 hrs
Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 2284 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 2284.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
