Cub Cadet 3225

The Cub Cadet 3225 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 622 cc 38 ci engine. The rated power output is 22 hp 16.4 kW. Transmission: infinite forward and reverse. Operating weight: 720 lbs 326 kg.

Overview

	1998 - 1999 3000 SeriesGarden tractor
1998 - 1999
3000 Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Cub Cadet 3225 Engine
22HP Kohler 622cc 2-cyl gasoline
Fuel tank	4.5 gal 17.0 L
Engine details ...

Cub Cadet 3225 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
External disk brakes
Open operator station.

Tractor hitch
Rear Type	0 (optional)

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	49.5 inches 125 cm
Weight	720 lbs 326 kg
Front tire	16x7.5-8
Rear tire	24x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	16
Battery CCA	435
Battery volts	12

Engine

Engine Detail — 622 cc / 38 ci Gasoline

Manufacturer	Kohler Command CH22
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	622 cc 38 ci
Power (gross)	22 hp 16.4 kW
Compression	8.5:1
Idle RPM	1200-3600
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Oil capacity	2 qts 1.9 L
Oil change	100 h

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	4.5 qts 4.3 L

Dimensions

Cub Cadet 3225 Tires
Lawn/turf front	16x7.5-8
Lawn/turf rear	24x10.5-12

Dimensions
Wheelbase	49.5 inches 125 cm
Length	72.25 inches 183 cm
Width	42 inches 106 cm
Height	43.6 inches 110 cm
Weight	720 lbs 326 kg
Ground clearance	6 inches 15 cm

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

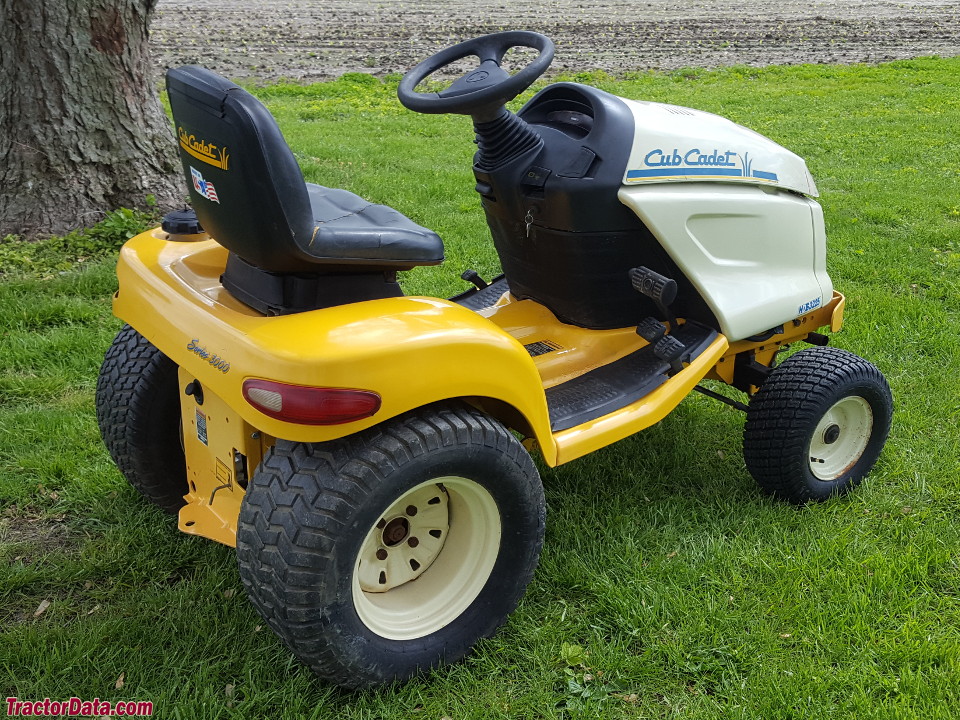

Cub Cadet 3225

Cub Cadet 3225
