Cub Cadet 682

The Cub Cadet 682 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The rated power output is 17 hp 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 660 lbs 299 kg.

Overview

	1979 - 1985 Model year 1979-19811982-1985 IH 82 SeriesGarden tractor
1979 - 1985
Model year 1979-19811982-1985
IH 82 Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA

Variants
782	hydraulics
682	manual lift

Cub Cadet 682 Engine
17HP Kohler 691cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Cub Cadet 682 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Integral wet disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch (optional)

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	44 inches 111 cm
Weight	660 lbs 299 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	200
Battery volts	12
Battery AH	32

References
International 682 & 782 Cadet Tractor published in 1981, by Cub Cadet
International Cadet Tractors published in 1979, by International Harvester
Buyer's Guide 1981 published by International Harvester
Buyer's Guide 1982 published by International Harvester

Engine

Engine Detail — 691 cc / 42.18 ci Gasoline

Manufacturer	Kohler KT-17
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft opposed-twin
Displacement	691 cc 42.18 ci
Bore/Stroke	3.125x2.75 inches 79 x 70 mm
Power (gross)	17 hp 12.7 kW
Air cleaner	dry
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L
Oil type	IH Hy-Tran

	IH Hy-Tran

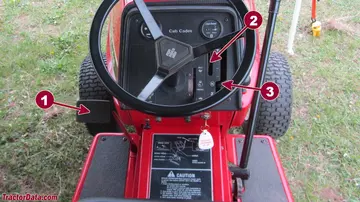

682 Transmission Controls
1	Brake
2	Throttle
3	Forward/reverse

Dimensions

Cub Cadet 682 Tires
Ag front	6.50-8
Ag rear	23x10.50-12
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	44 inches 111 cm
Length	72 inches 182 cm
Width	37.75 inches 95 cm
Height (steering wheel)	43 inches 109 cm
Shipping weight	660 lbs 299 kg
Ground clearance	6 inches 15 cm
Front tread	29 inches 73 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

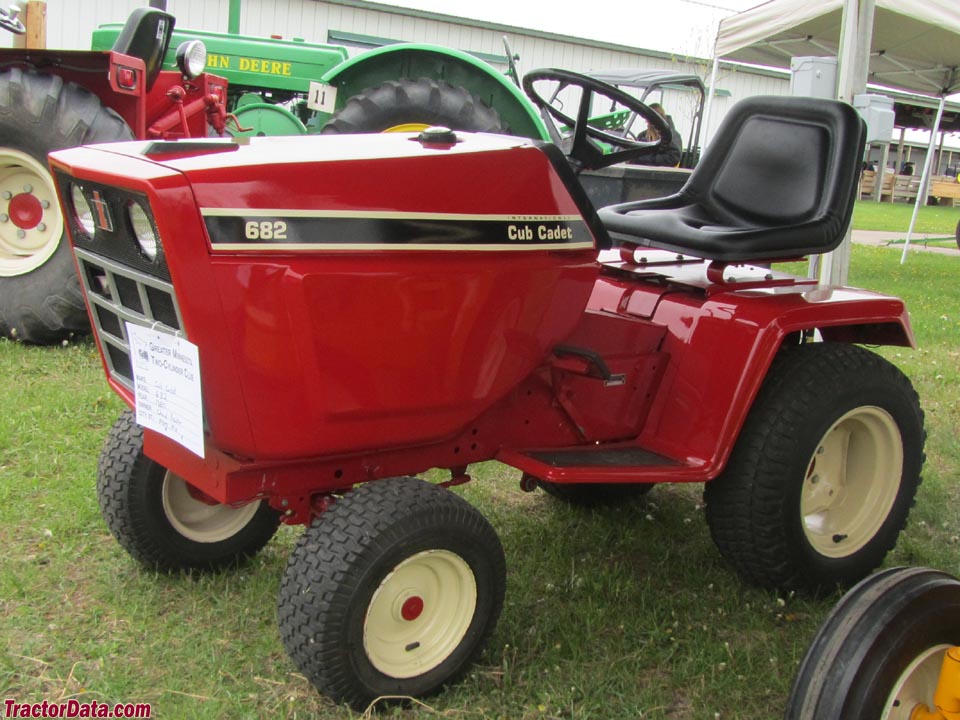

Cub Cadet 682

Cub Cadet 682

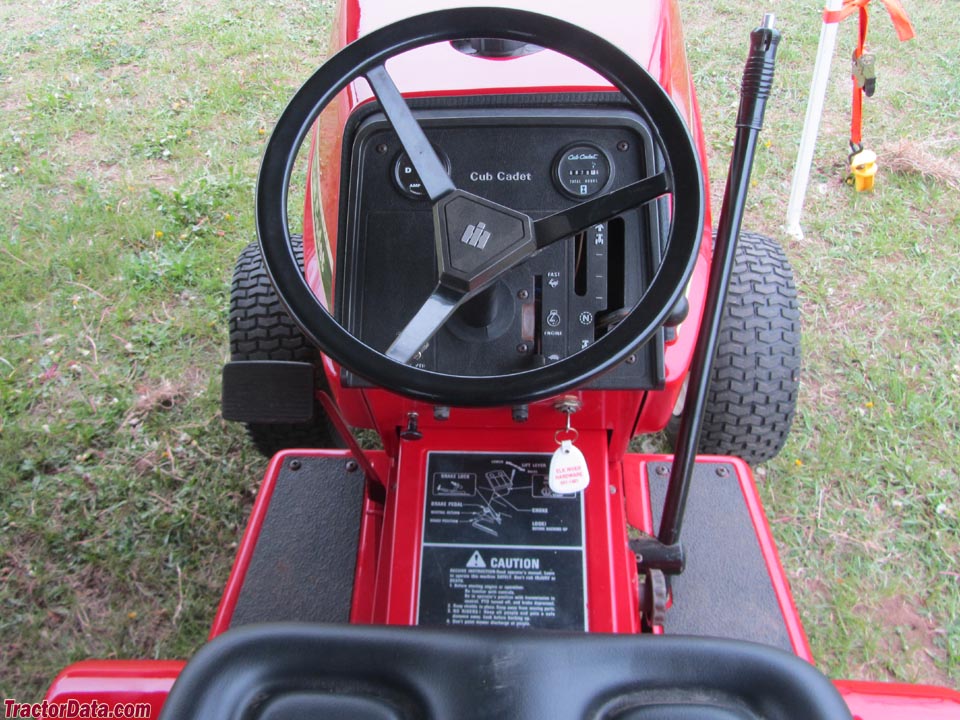

Cub Cadet 682 operator station and controls.
