Cub Cadet 782
The Cub Cadet 782 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 680 lbs 308 kg.
Engine Power
Gasoline (gross): 17 hp / 12.7 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
infinite forward and reverse
Operating Weight
680 lbs
308 kg
Overview
 | 1979 - 1985
Model year 1979-19811982-1985
IH 82 SeriesGarden tractor
IH 82 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of International Harvester) |
Garden tractor | |
Built in Louisville, Kentucky, USA | |
Variants | |
|---|---|
782 | hydraulics |
682 | manual lift |
Cub Cadet 782 Engine | |
|---|---|
17HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Cub Cadet 782 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Integral wet disc brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Weight | 680 lbs
308 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery CCA | 200 |
Battery volts | 12 |
Battery AH | 32 |
References | |
|---|---|
 | |
International 682 & 782 Cadet Tractor published in 1981, by Cub Cadet | |
International Cadet Tractors published in 1979, by International Harvester | |
Buyer's Guide 1981 published by International Harvester | |
Buyer's Guide 1982 published by International Harvester |
Engine
Engine Detail — 691 cc / 42.18 ci Gasoline
Manufacturer | Kohler KT-17 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft opposed-twin |
During production, the Cub Cadet 782 switched from a Kohler KT-17 Series I motor to a KT-17 Series II motor. The Series II motor offered full-pressure oil lubrication. The Series I a limited pressure lubrication system. The Series II can be identified by a decal on the cover of the air filter or an engine specification number that is 24300 or higher. | |
Displacement | 691 cc
42.18 ci |
Bore/Stroke | 3.125x2.75 inches
79 x 70 mm |
Power (gross) | 17 hp
12.7 kW |
Air cleaner | dry |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 7 qts
6.6 L |
 | |
Dimensions
Cub Cadet 782 Tires | |
|---|---|
Ag front | 6.50-8 |
Ag rear | 23x10.50-12 |
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 72 inches
182 cm |
Width | 37.75 inches
95 cm |
Height (steering wheel) | 43 inches
109 cm |
Shipping weight | 680 lbs
308 kg |
Ground clearance | 6 inches
15 cm |
Front tread | 29 inches
73 cm |
Rear tread | 27 inches
68 cm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

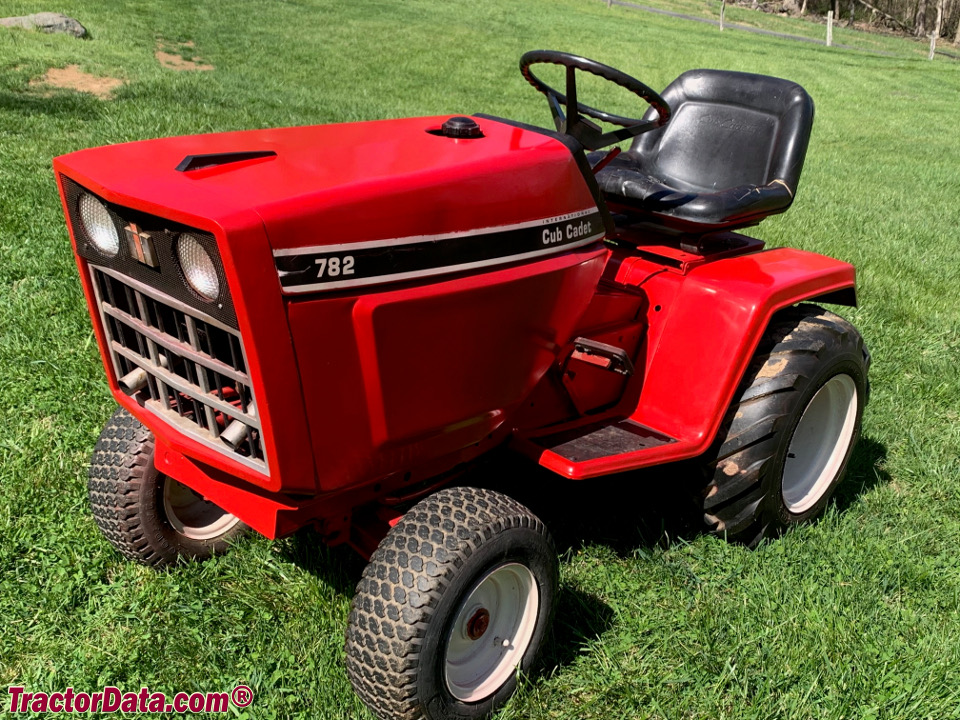

Cub Cadet 782
Cub Cadet 782

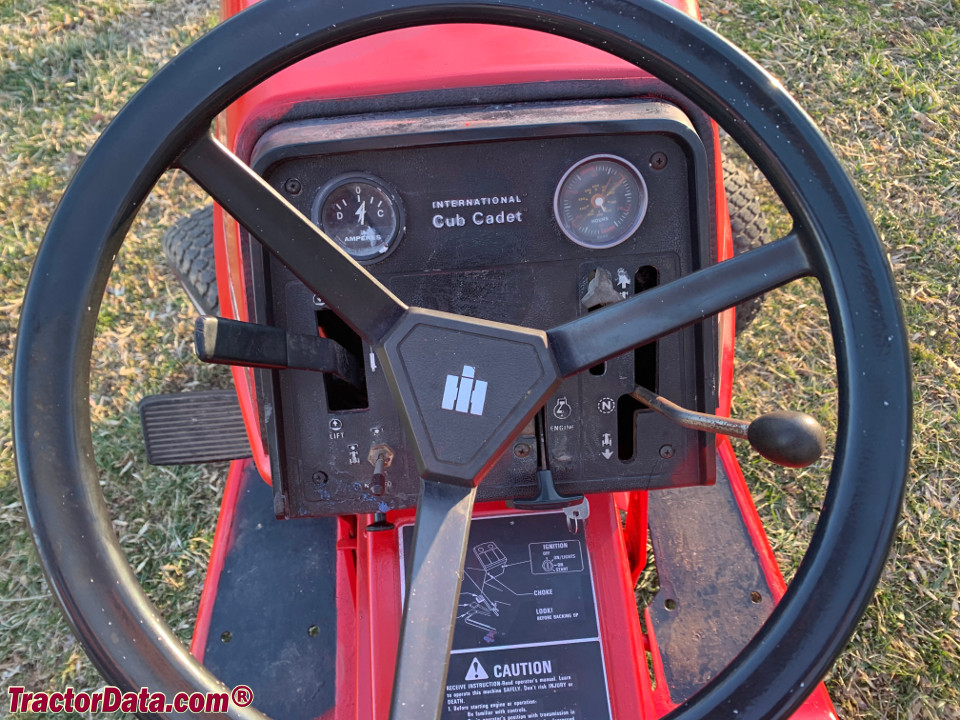

Cub Cadet 782 dashboard and controls.

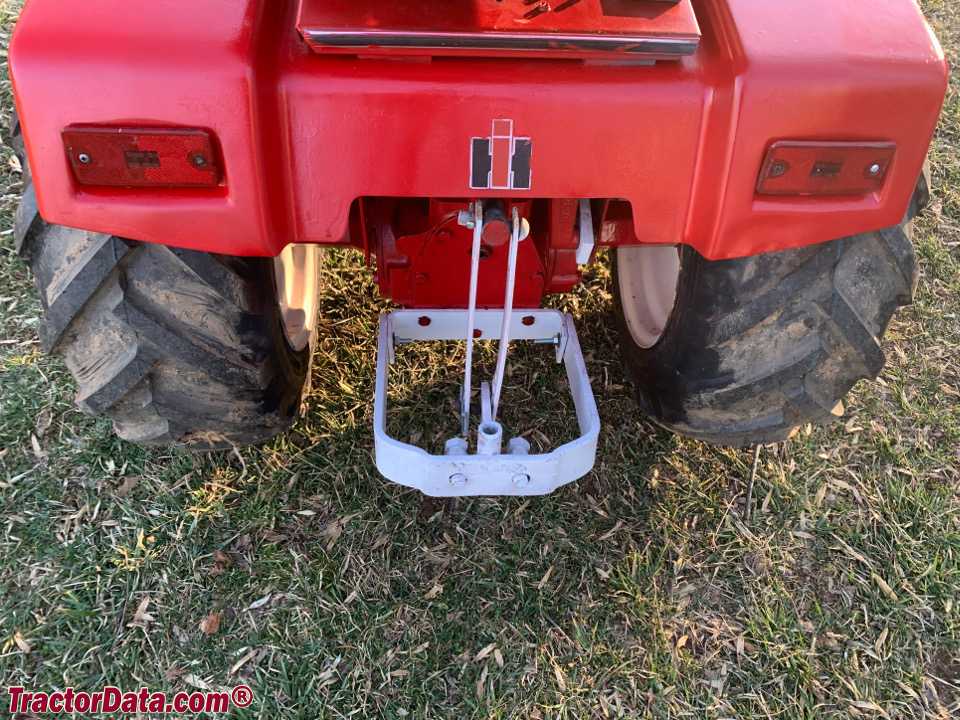

Rear view of the Cub Cadet 782 with hitch.
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet 782 based on its 17 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 782.
Estimated Continuous Field Runtime: 4.5 hrs
Approximately 4.5 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 782 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 782.
Converted Equivalents:
Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS
Direct Competitor Comparison
Compare Cub Cadet 782 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet 782
Engine Power:Gasoline (gross): 17 hp / 12.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 154 Lo-Boy
Engine Power:15.6
Production Years:1968 - 1974
