Cub Cadet 782D
The Cub Cadet 782D is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 606 cc 37 ci engine. The rated power output is 15 hp 11.2 kW. Transmission: infinite forward and reverse. Operating weight: 767 lbs 347 kg.
Engine Power
15 hp
11.2 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
infinite forward and reverse
Operating Weight
767 lbs
347 kg
Cub Cadet Lawn Tractors Cub Cadet 782D Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1984 - 1985
CCC 82 SeriesGarden tractor |
|---|---|
1984 - 1985 | |
CCC 82 Series | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Built in Brownsville, Tennessee, USA | |
Variants | |
|---|---|
782D | IH red |
882 | Cub Cadet yellow |
Cub Cadet 782D Engine | |
|---|---|
15HP Kubota 606cc 3-cyl diesel | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Cub Cadet 782D Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Weight | 767 lbs
347 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
One Tough Tractor published in 1985, by Cub Cadet | |
International Cub Cadet Tractors published in 1985, by International Harvester |
Engine
Engine Detail — 606 cc / 37 ci Diesel
Manufacturer | Kubota D600-B |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 606 cc
37 ci |
Bore/Stroke | 2.52x2.45 inches
64 x 62 mm |
Power (gross) | 15 hp
11.2 kW |
Fuel system | Bosch fuel injection |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 3 qts
2.8 L |
Oil capacity | 3.1 qts
2.9 L |
Oil change | 100 h |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 6.5 qts
6.2 L |
 | |

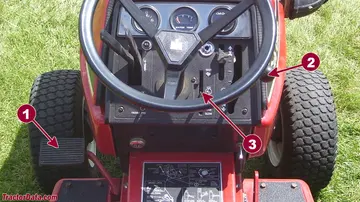

782D Transmission Controls | |
|---|---|
 | |
1 | Brake |
2 | Forward/reverse |
3 | Throttle |
Dimensions
Cub Cadet 782D Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 72 inches
182 cm |
Width | 37.75 inches
95 cm |
Height (steering wheel) | 43 inches
109 cm |
Shipping weight | 767 lbs
347 kg |
Ground clearance | 6 inches
15 cm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
The 782D was compatible with the model 2B 38-inch tiller. |
Photos
Cub Cadet 782D

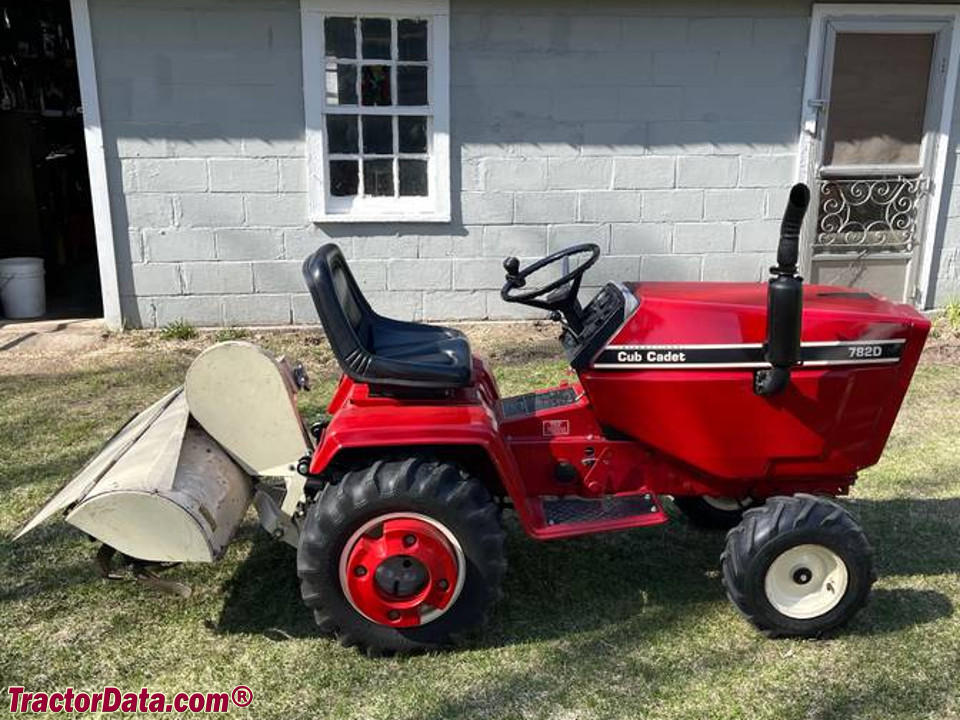

Cub Cadet 782D with tiller.
