Cub Cadet FMZ 50
The Cub Cadet FMZ 50 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 721 cc 44 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Hydro-Gear ZT-2800. Operating weight: 683 lbs 309 kg.
Overview
 | 2008
FMZ SeriesFront-mount mower
FMZ Series
Front-mount mower |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Front-mount mower | |
Built in Germany | |
Original price was $5,400 in 2008 | |
Cub Cadet FMZ 50 Engine | |
|---|---|
22HP Kohler 721cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Cub Cadet FMZ 50 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 683 lbs
309 kg |
Front tire | 20x10 |
Rear tire | 15x6 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet |
Engine
Engine Detail — 721 cc / 44 ci Gasoline
Manufacturer | Kohler SV715 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 721 cc
44 ci |
Bore/Stroke | 3.3x2.6 inches
84 x 66 mm |
Power (gross) | 22 hp
16.4 kW |
Starter | electric |
Starter volts | 12 |
Cub Cadet FMZ 50 Engine | |
|---|---|
 | |
Image courtesy of Richard Gomez |
Transmission
Transmission — Hydro-Gear ZT-2800
Transmission | Hydro-Gear ZT-2800 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet FMZ 50 Tires | |
|---|---|
Lawn/turf front | 20x10 |
Lawn/turf rear | 15x6 |
Dimensions | |
|---|---|
Length | 89.8 inches
228 cm |
Height | 47.2 inches
119 cm |
Weight | 683 lbs
309 kg |
Attachments
50" Mower deck | |
|---|---|
Type | front-mount Cub Cadet |
3-blade | |
Cutting width | 50 inches
127 cm |
Overall width | 61 inches
154 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos

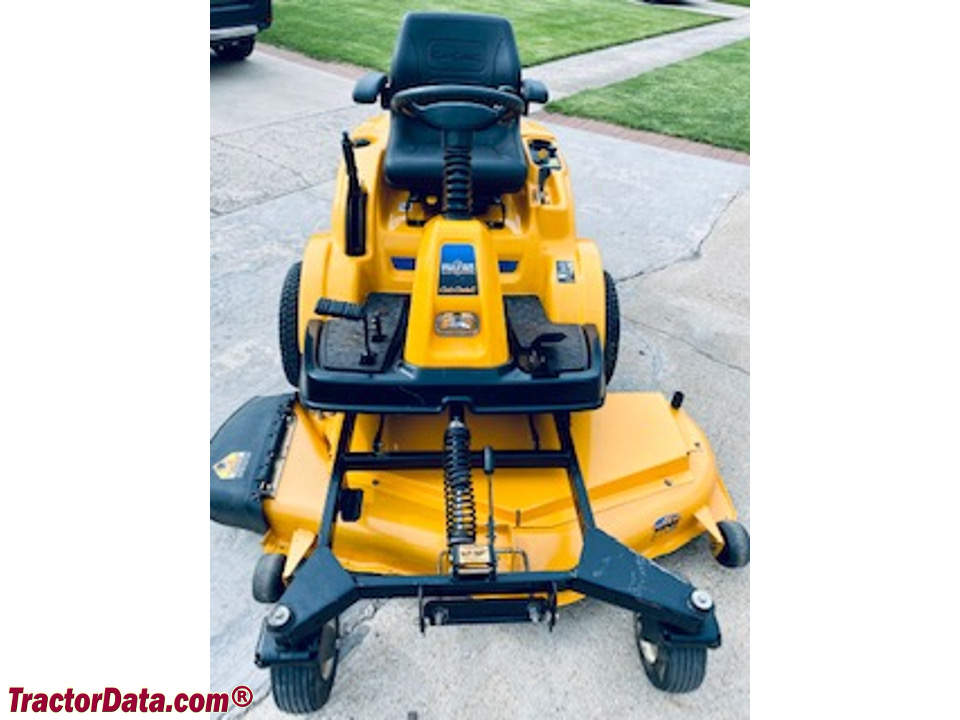

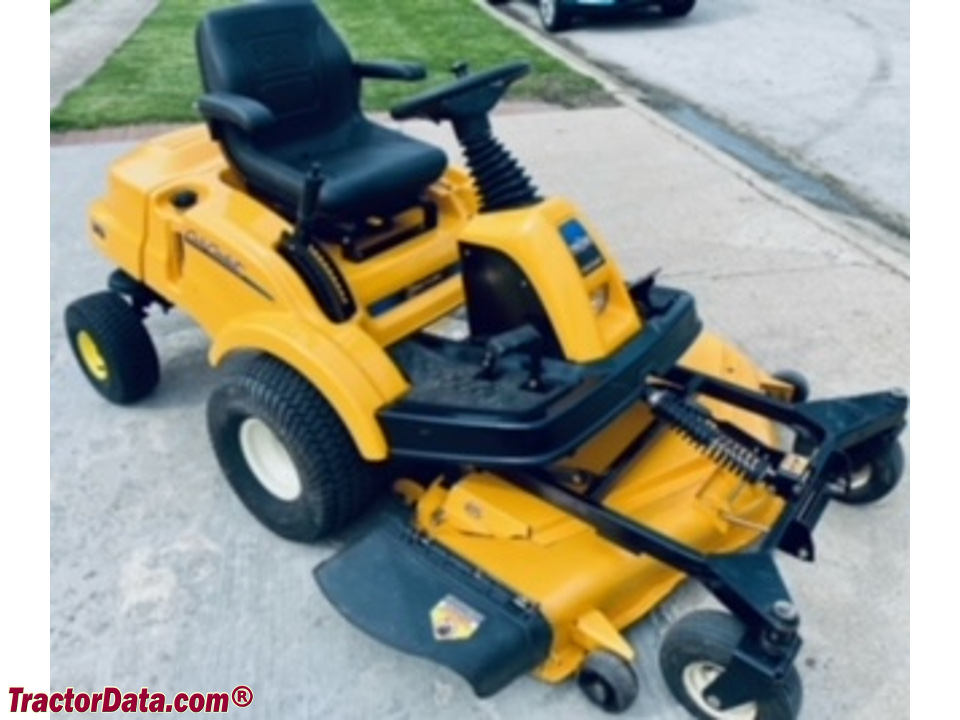

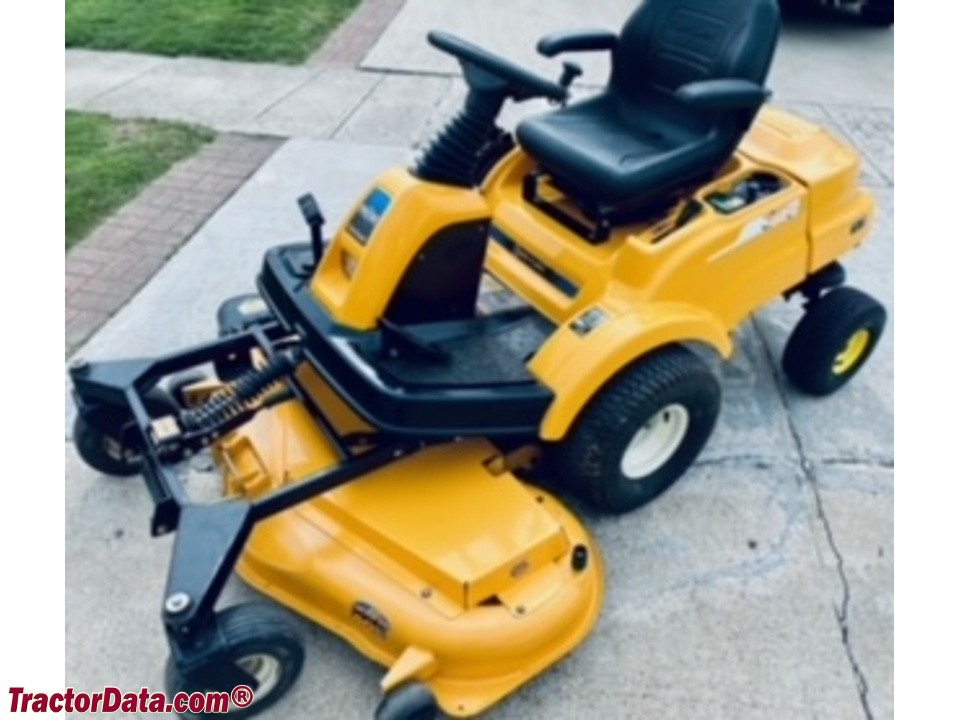

Cub Cadet FMZ 50
Cub Cadet FMZ 50
Cub Cadet FMZ 50
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet FMZ 50 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet FMZ 50.
Estimated Continuous Field Runtime: 3.1 hrs
Approximately 3.1 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Cub Cadet Lawn Tractors Cub Cadet FMZ 50 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet FMZ 50.
Converted Equivalents:
