Cub Cadet GT 2100

The Cub Cadet GT 2100 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The rated power output is 23 hp 17.2 kW. Transmission: Hydro-Gear BDU-10.

Overview

	2011 - 2014 2000 SeriesGarden tractor
2011 - 2014
2000 Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor
Original price was $4,899 in 2011

Cub Cadet GT 2100 Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank	4.5 gal 17.0 L
Engine details ...

Cub Cadet GT 2100 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual sector and pinion
Open operator station. High-back seat with arm rests and six-position adjustment.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	50.6 inches 128 cm
Front tire	16x6.5
Rear tire	23x9.5
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	25
Battery CCA	275
Battery volts	12

Engine

Engine Detail — 673 cc / 41.1 ci Gasoline

Manufacturer	Kohler Command CH680
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled V-twin OHV
Displacement	673 cc 41.1 ci
Bore/Stroke	3.2x2.6 inches 81 x 66 mm
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — Hydro-Gear BDU-10

Transmission	Hydro-Gear BDU-10
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	5.7 qts 5.4 L

Dimensions

Cub Cadet GT 2100 Tires
Lawn/turf front	16x6.5
Lawn/turf rear	23x9.5

Dimensions
Wheelbase	50.6 inches 128 cm
Length	76 inches 193 cm
Rear axle	1 inch diameter 25 mm

Attachments

Attachment overview
42" mid-mount mower deck
48" mower deck
50" mid-mount mower deck
54" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

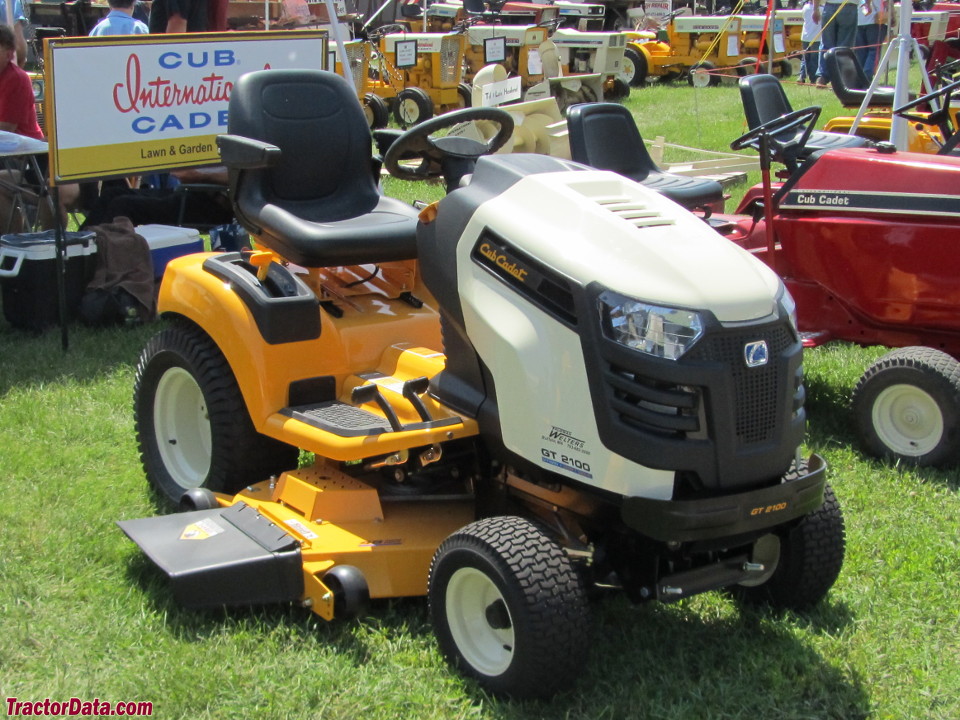

Cub Cadet GT 2100

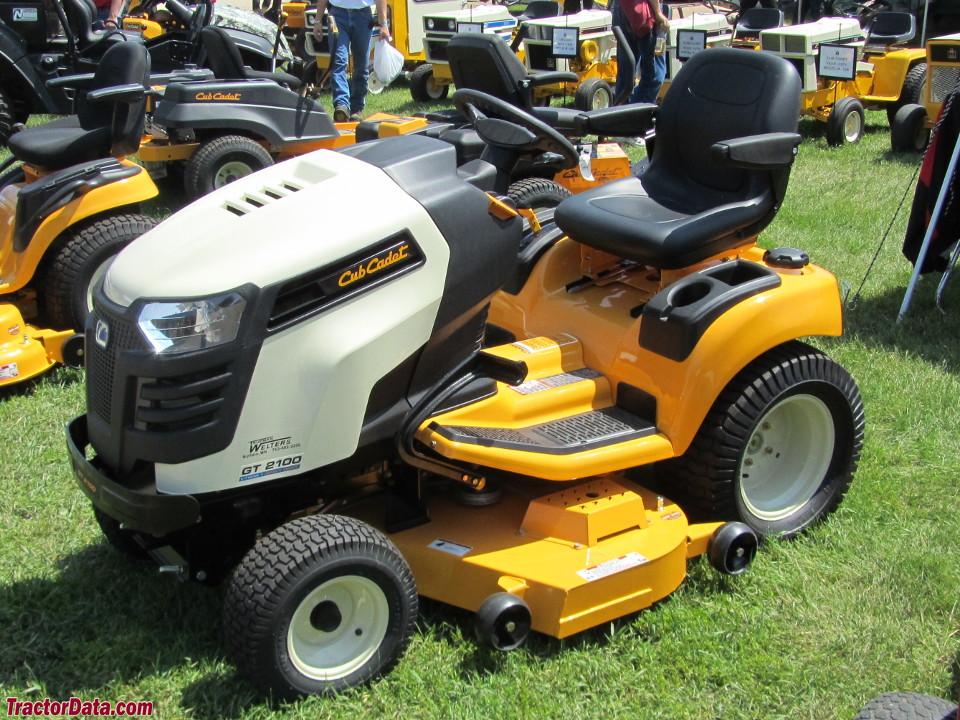

Cub Cadet GT 2100
